14A-22
ANTIPOLLUTION
Exhaust gas recirculation assembly: Removal - Refitting
K9K
14A
a Remove:
-the bolts (13) from the lifting eye at the timing end,
-the lifting eye on the timing end,
-the air inlet metal tube (14) ,
-the air inlet metal tube seals,
-the rigid exhaust gas recirculation pipe (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) .
a Unclip the air flowmeter wiring from the air filter unit
air outlet pipe at (15) .
a Loosen the clip (16) of the air filter unit air outlet pipe
from the air filter unit.
a Disconnect the air filter unit air outlet pipe from the
air filter unit.

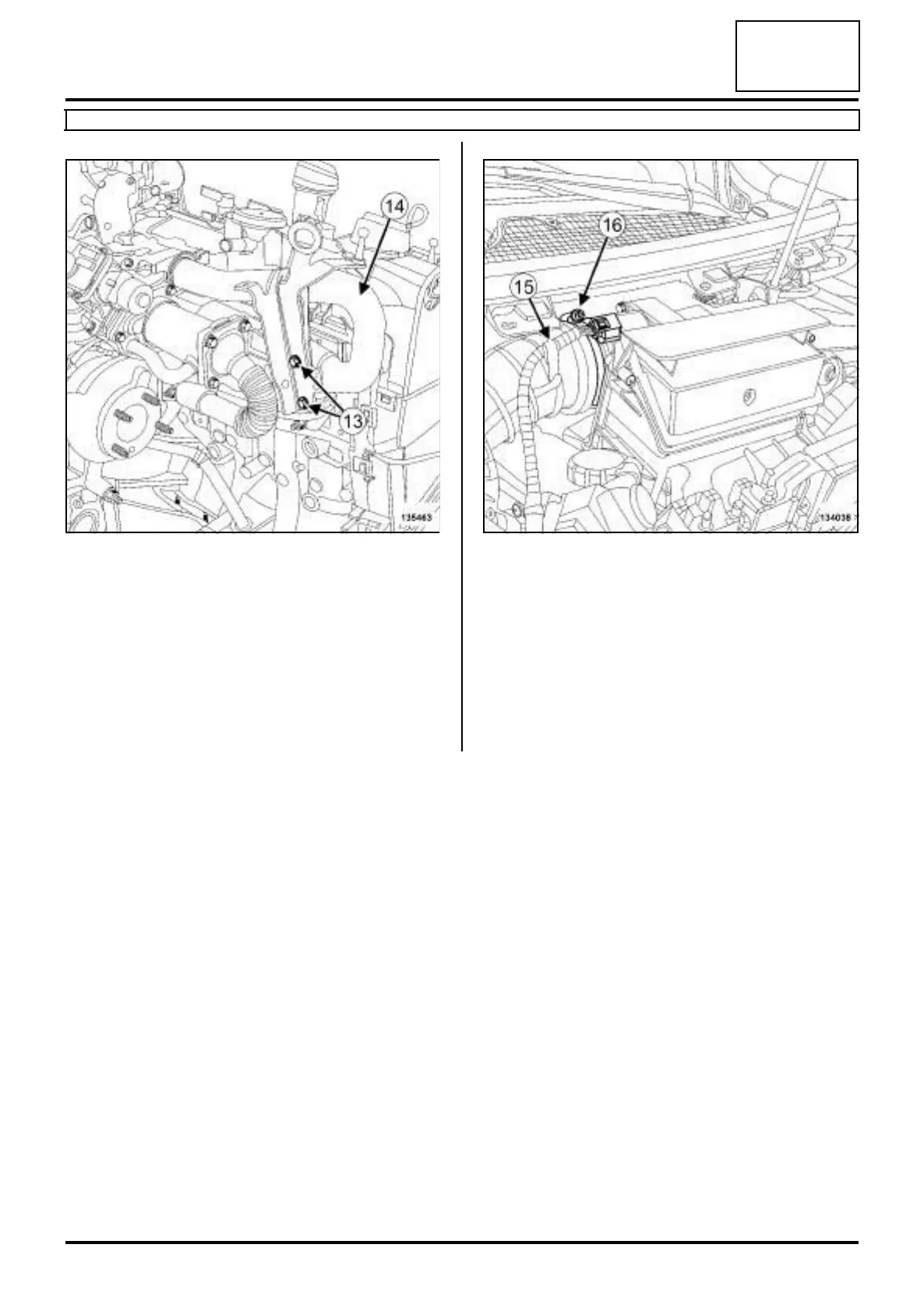

135463 134038
