Alternator: Removal - Refitting
K4M
16A

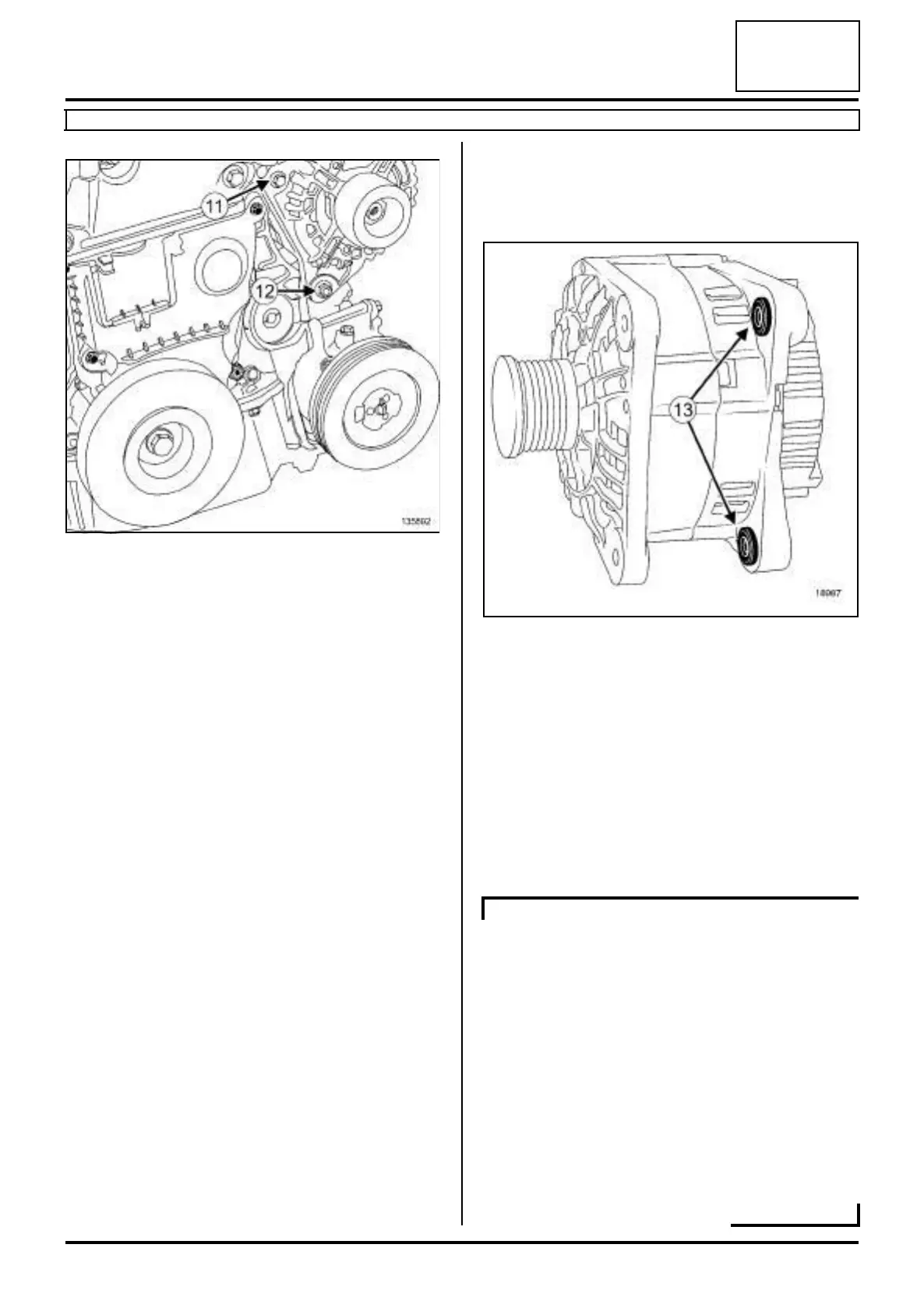

a Remove the alternator bolt (11) .
a Loosen but do not remove the alternator bolt (12) .
a Move the alternator away from the multifunction sup-
port using a screwdriver.
a Remove the alternator.
REFITTING
I - REFITTING PREPARATION OPERATION
a Compress the alternator rings (13) using pliers or a
vice to facilitate fitting.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the alternator.
a Torque tighten the alternator bolts (25 N.m).
a Refit the alternator strut.
a Refit:
- the alternator strut nut on the cylinder block,
- the alternator strut bolt on the alternator.
a Tighten to torque:
- the alternator strut bolt on the alternator (25
N.m),
- the alternator strut nut on the cylinder block (25
N.m).
