16A-7
STARTING - CHARGING
Alternator: Removal - Refitting
K9K
16A

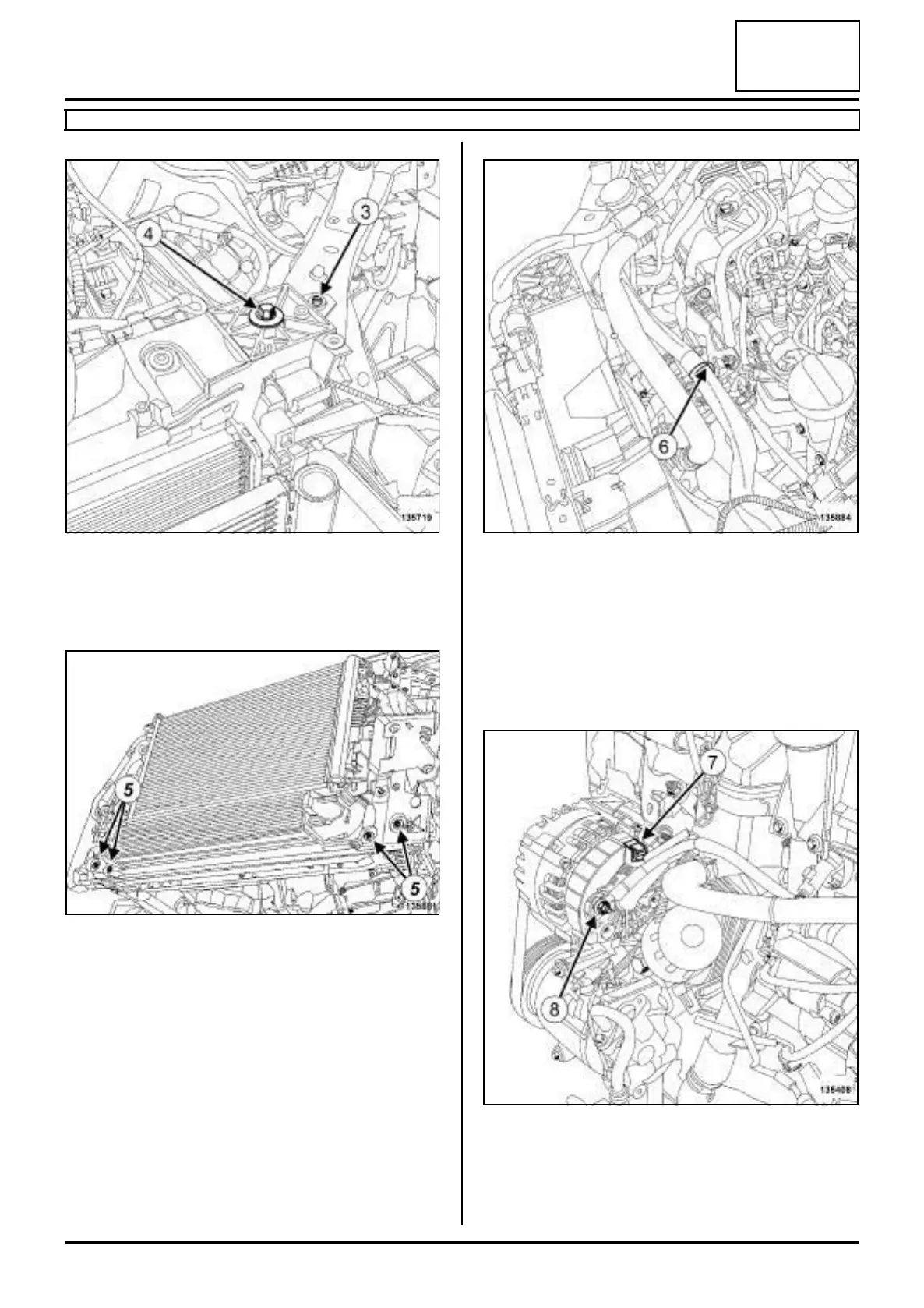

a Remove:
-the front end panel clips (3) ,
-the front end panel upper bolts (4) .
a Remove the lower bolts (5) from the front end panel.
a Tilt the front end panel towards the front of the vehi-
cle.
a Unclip the expansion bottle bottom cooling hose (6)
from the high pressure pump protector.
a Unclip the alternator wiring from the injector rail pro-
tector.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the alternator excitation connector (7) .
a Remove the nut (8) from the alternator positive ter-
minal.
a Move aside the alternator wiring.
135719
135881
135884
135408
