16A-20
STARTING - CHARGING
Starter: Removal - Refitting
K4M, and 858 or 866
16A
REMOVAL
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the engine undertray bolts,
-the engine undertray.

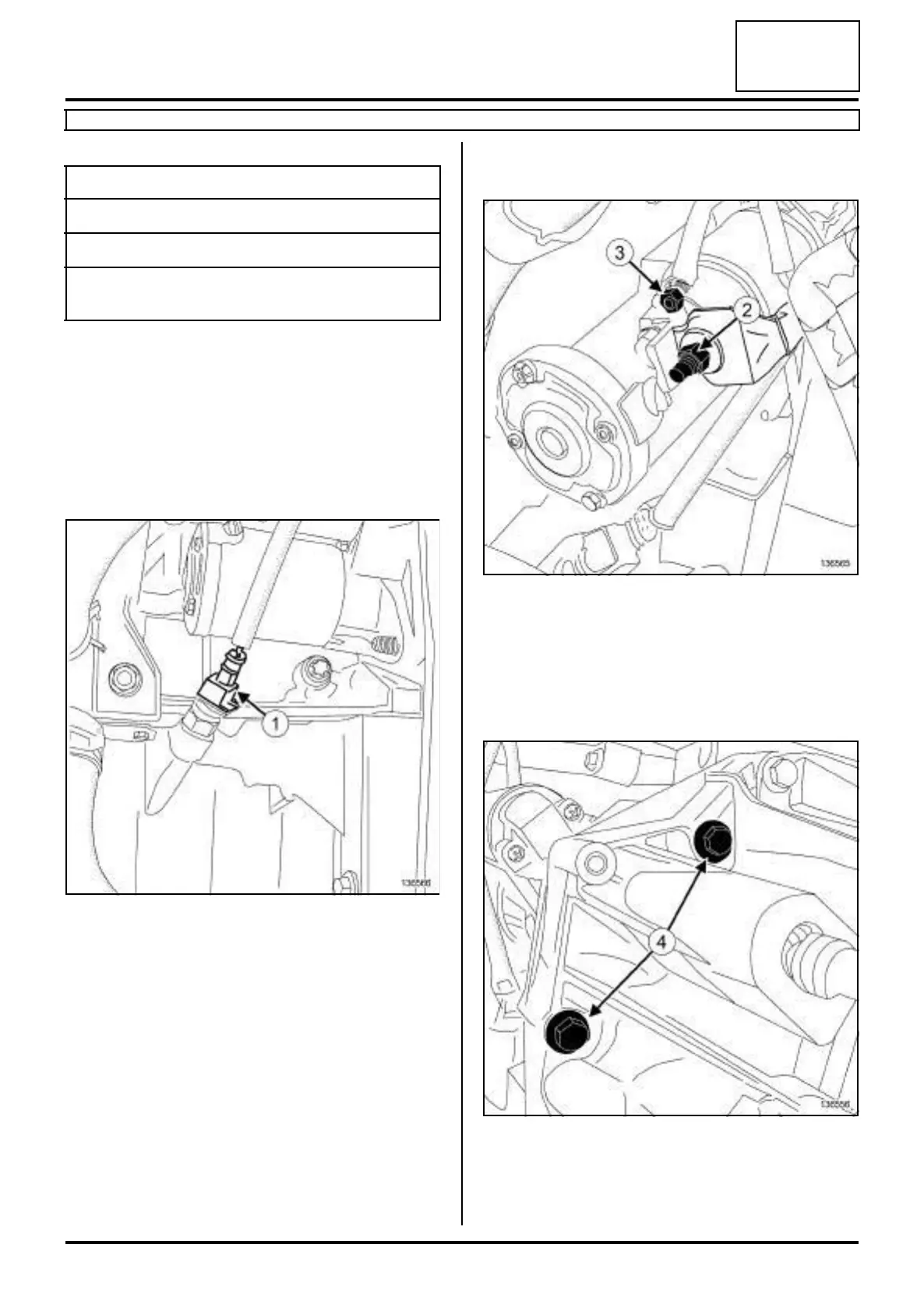

a Disconnect the connector (1) from the oil level sen-
sor.
OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the starter supply cable nut (2) ,
- the starter excitation cable nut (3) .
a Move the starter wiring aside.
a Remove:
- the starter bolts (4) ,
- the starter.
Tightening torquesm
starter bolts 44 N.m
starter supply cable nut 8 N.m
starter excitation cable
nut
5 N.m
136566
136565
136556
