19A-36
COOLING
Cooling radiator: Removal - Refitting
K9K
19A
a Using a safety strap(s) (2) , attach the air conditio-
ning condenser to the front impact cross member.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Use the tool (Mot. 1448) to separate the cooling ra-
diator bottom cooling hose clip (3) from the cooling
radiator.
a Disconnect the cooling radiator bottom cooling hose
from the cooling radiator.
a Use the tool (Mot. 1202-02) to separate the expan-
sion bottle top cooling hose clip (4) from the cooling
radiator.
a Disconnect the expansion bottle top cooling hose
from the cooling radiator.
a Use the tool (Mot. 1448) to separate the cooling ra-
diator top cooling hose clip (5) from the cooling ra-
diator.
a Disconnect the cooling radiator top cooling hose
from the cooling radiator.

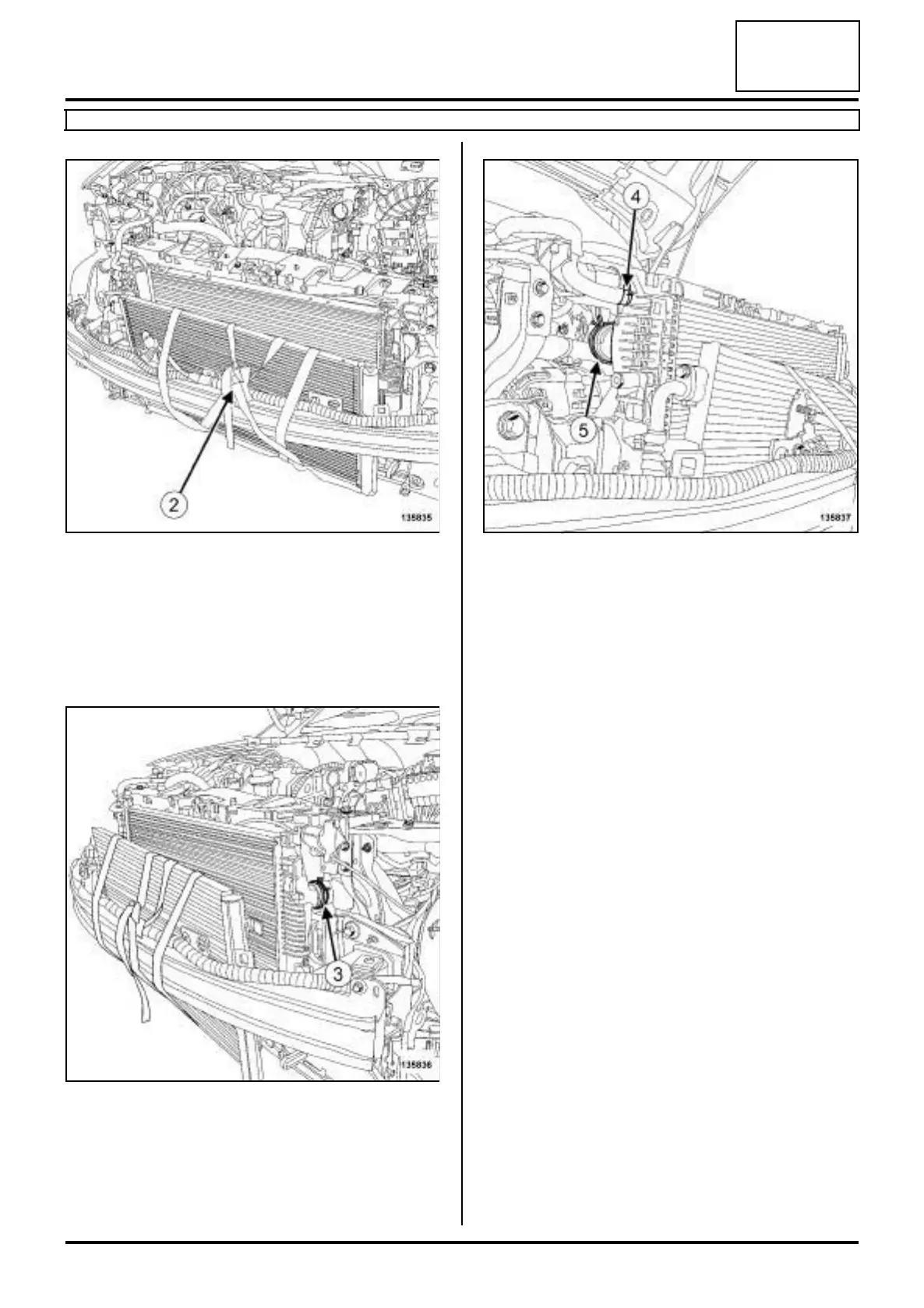

135835
135836
135837
