19D-8
ENGINE MOUNTING
Left-hand suspended engine mounting: Removal - Refitting
K9K
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
- the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-4) ,
- the engine undertray bolts,
- the engine undertray.
a Remove:

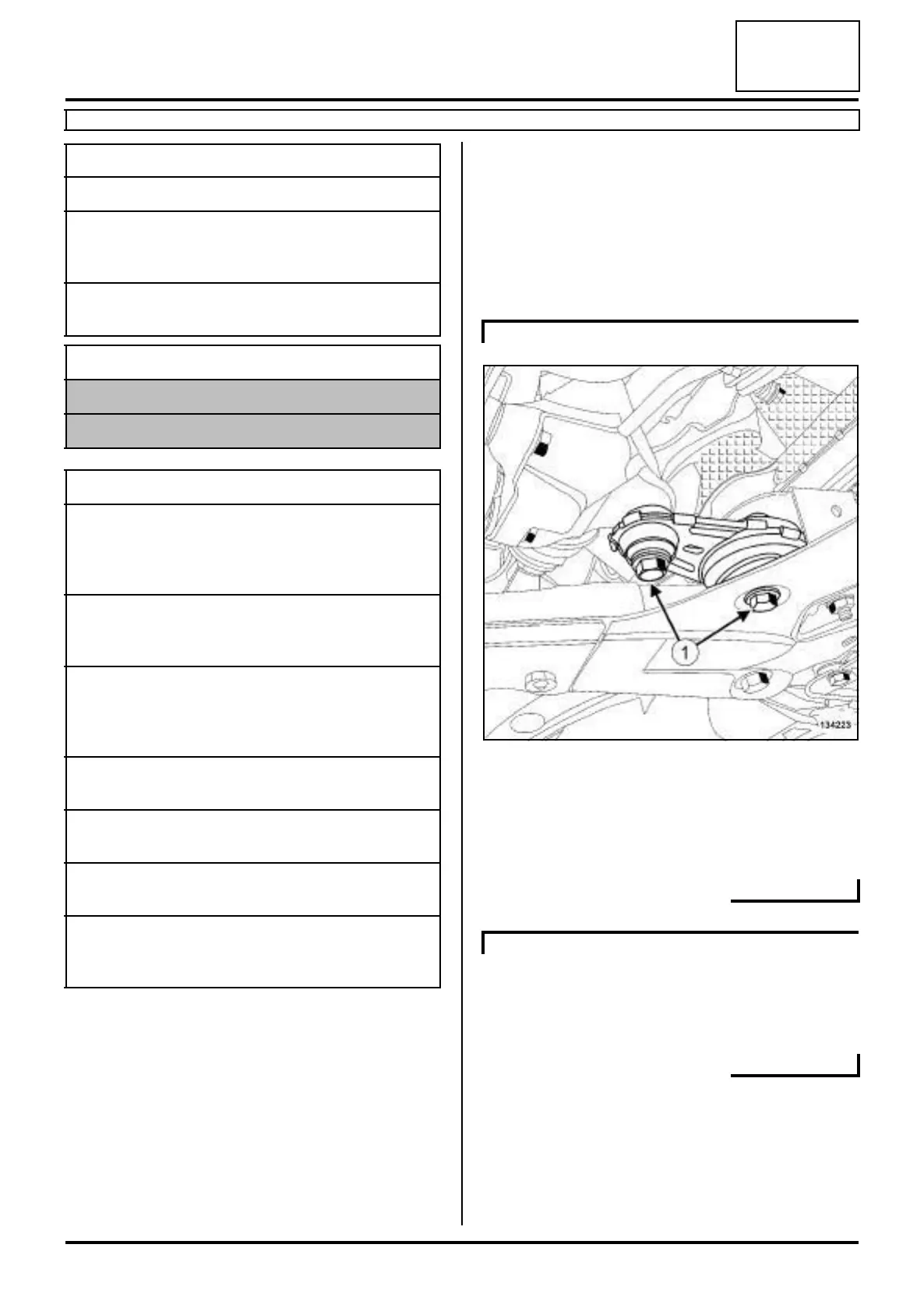

- the bolts (1) from the lower engine tie-bar,
- the lower engine tie-bar.
a Remove the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-33) .
a Remove:
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
Essential special tooling
Ms. 583 Hose clamp pliers.
Mot. 1453 Multiple-adjusting engine
mounting support with retai-
ning straps.
Mot. 1453-01 Additional winder nut on
engine lift support Mot. 1453.
Essential equipment
safety strap(s)
indelible pencil
Tightening torquesm
support bolts for the left-
hand suspended engine
mounting on the gear-
box
62 N.m
support bolts for the left-
hand suspended engine
mounting on the body
62 N.m
support bolt for the left-
hand suspended engine
mounting on the
gearbox62
N.m
upper engine tie-bar bolt
on the engine
115 N.m
upper engine tie-bar bolt
on the body
105 N.m
lower engine tie-bar bolt
on the subframe
180 N.m
lower engine tie-bar bolt
on the lower engine tie-
bar support
180 N.m
K9K, and 832
134223
K9K, and 830 or 834
