19D-11
ENGINE MOUNTING
Left-hand suspended engine mounting: Removal - Refitting
K9K
19D

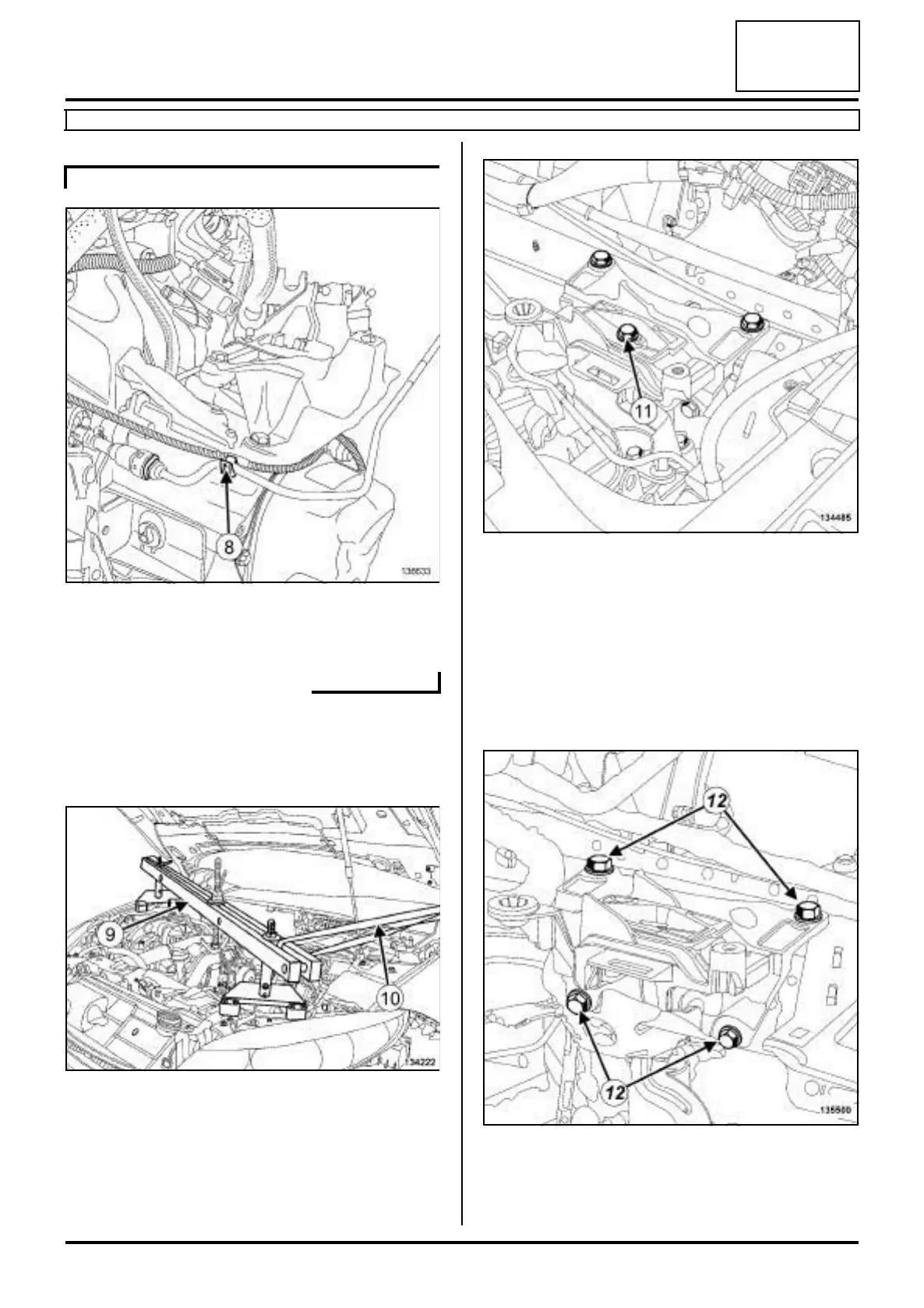

a Unclip the hydraulic clutch pipe from the left-hand
suspended engine mounting at (8) .
a Remove the hydraulic clutch pipe.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Fit the (Mot. 1453) fitted with the (Mot. 1453-01) (9)
with a safety strap(s) (10) .
a Remove the left-hand suspended engine mounting
support bolt (11) on the gearbox.
a Detach the support on the gearbox from the left-
hand suspended engine mounting.
a Mark the position of the left-hand suspended engine
mounting support on the body using a indelible
pencil.
a Remove:
- the bolts (12) from the left-hand suspended engine
mounting support on the body,
K9K, and 830 or 834
136633
134222
134485
135500
