Left-hand suspended engine mounting: Removal - Refitting
K9K
19D
-the left-hand suspended engine mounting support
on the body.
a Remove:
-the left-hand suspended engine mounting support
bolts (13) on the gearbox,
-the left-hand suspended engine mounting support
on the gearbox.
a Remove:
- the left-hand suspended engine mounting support
bolts (14) on the gearbox,
- the left-hand suspended engine mounting support
on the gearbox.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the left-hand suspended engine mounting sup-
port on the gearbox.
a Torque tighten the support bolts for the left-hand
suspended engine mounting on the gearbox (62
N.m).
a Fit the left-hand suspended engine mounting sup-
port on the body.
a Position the left-hand suspended engine mounting
support on the body according to the marks made
during removal.
a Tighten to torque:
- the support bolts for the left-hand suspended
engine mounting on the body (62 N.m),

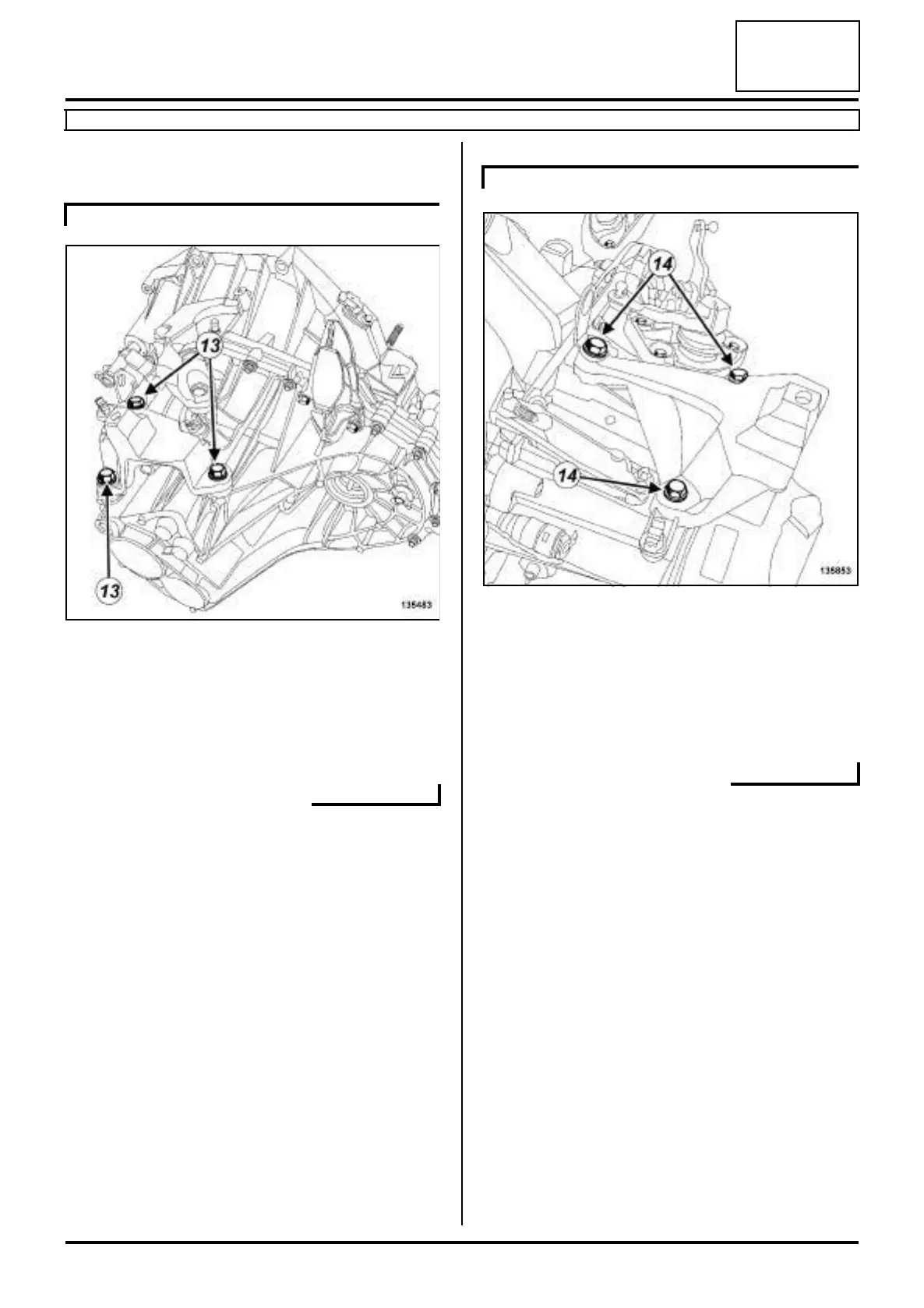

K9K, and 832
135483
K9K, and 830 or 834
135853
