19D-14
ENGINE MOUNTING
Left-hand suspended engine mounting: Removal - Refitting
F4R
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-4) ,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),

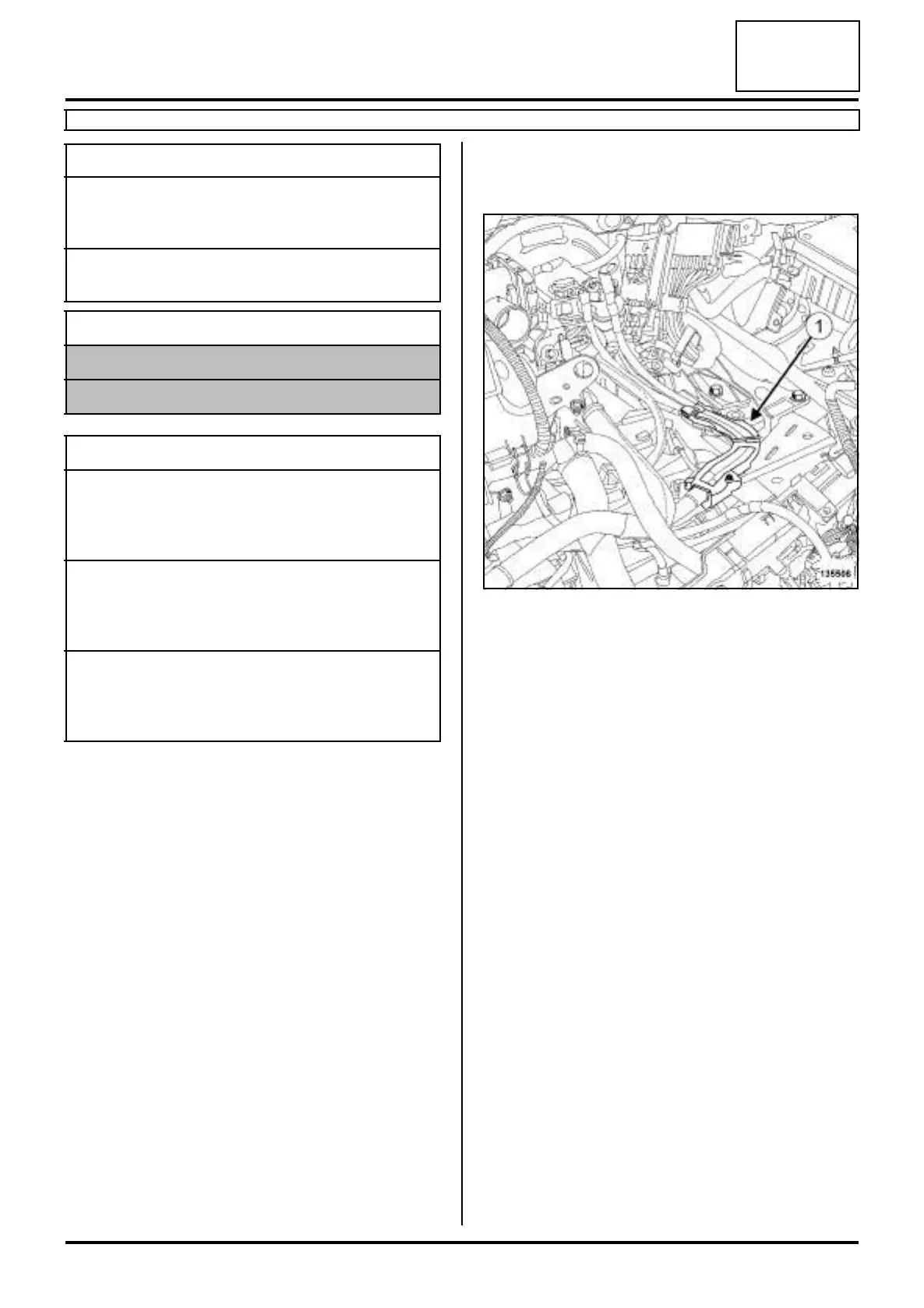

a Unclip the battery wiring channel (1)
a Remove:
- the engine undertray bolts,
- the engine undertray,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
Essential special tooling
Mot. 1453 Multiple-adjusting engine
mounting support with retai-
ning straps.
Mot. 1453-01 Additional winder nut on
engine lift support Mot. 1453.
Essential equipment
safety strap(s)
indelible pencil
Tightening torquesm
support bolts for the left-
hand suspended engine
mounting on the gear-
box
62 N.m
support bolts for the left-
hand suspended engine
mounting on the vehicle
body
62 N.m
support bolt for the left-
hand suspended engine
mounting on the gear-
box
105 N.m
135506
