19D-30
ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
F9Q
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray.
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment).

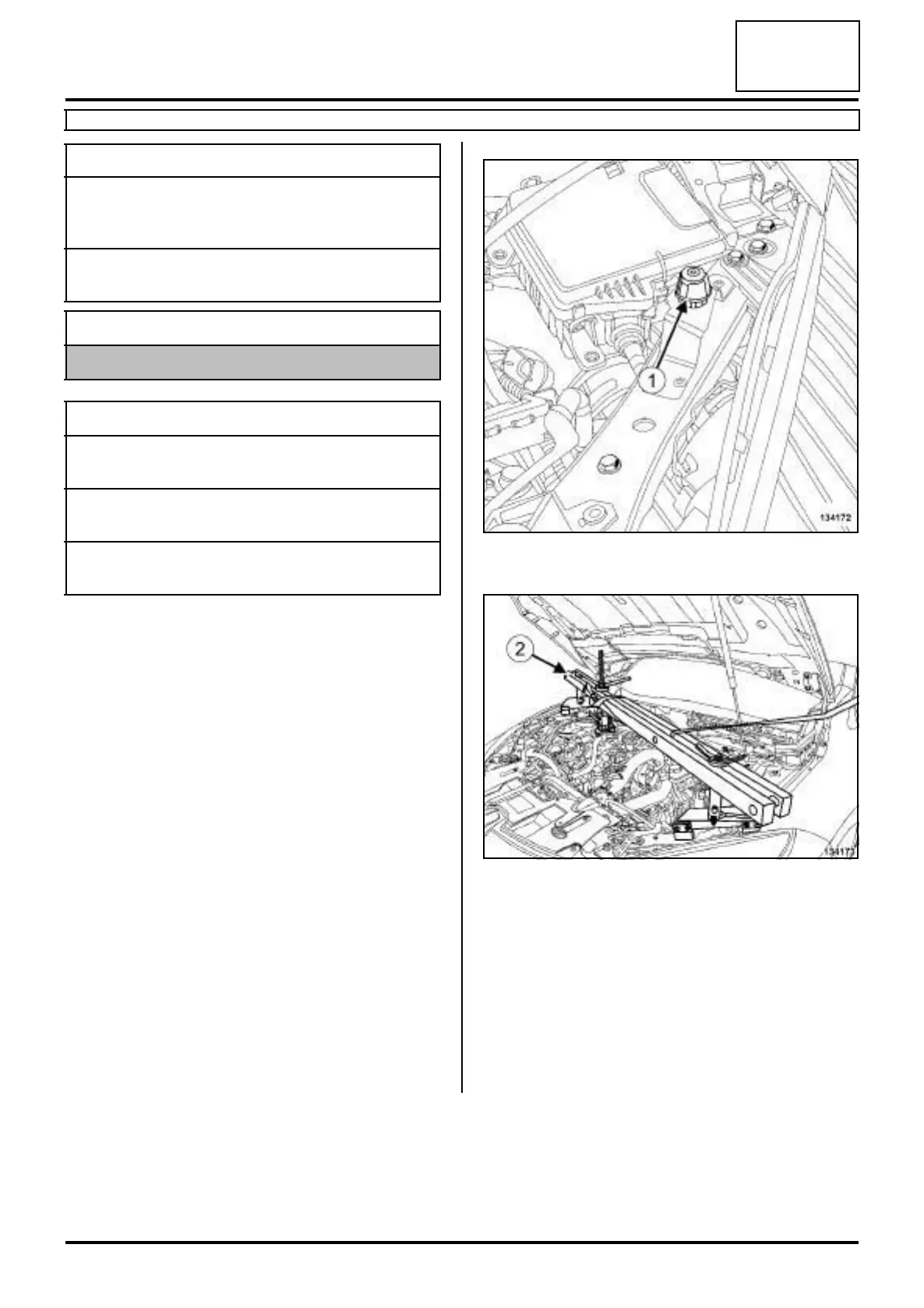

a Remove the front left-hand bonnet stop (1) .
a Position the (Mot. 1453) and (Mot. 1453-01).
Essential special tooling
Mot. 1453 Multiple-adjusting engine
mounting support with retai-
ning straps.
Mot. 1453-01 Additional winder nut on
engine lift support Mot. 1453.
Essential equipment
indelible pencil
Tightening torquesm
right-hand suspended
engine mounting bolts
62 N.m
engine tie-bar bolt on
the body
110 N.m
engine tie-bar bolt on
the engine
115 N.m
134172
134173
