19D-36
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
F9Q
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

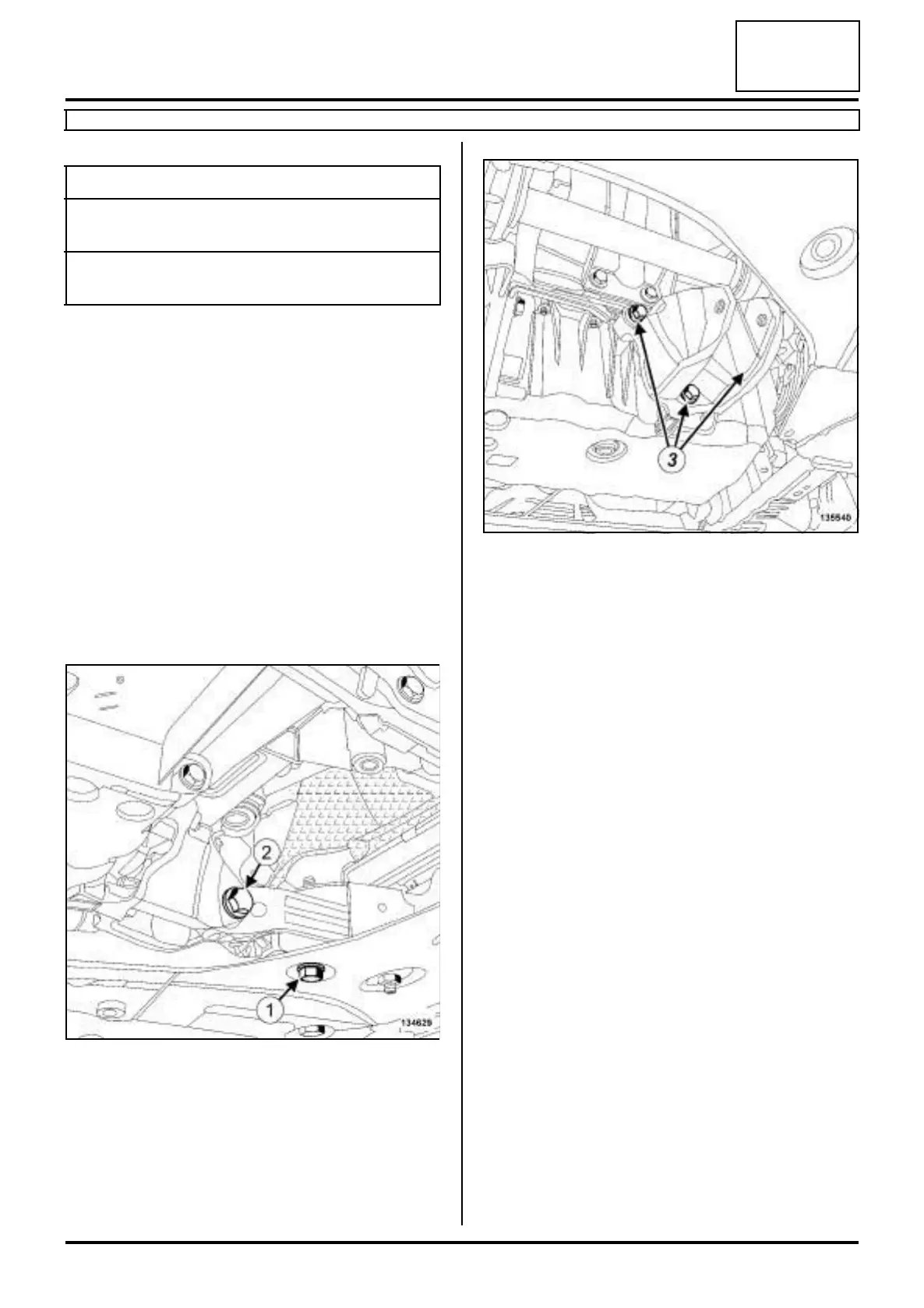

a Remove:
-the bolt (1) from the lower engine tie-bar on the
sub-frame,
-the bolt (2) mounting the lower engine tie-bar on its
support,
-the lower engine tie-bar.
a Remove:
- the bolts (3) from the lower engine tie-bar support,
- the lower engine tie-bar support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the lower engine tie-bar support,
- the lower engine tie-bar.
a Tighten to torque:
- the engine tie-bar bolt on its support (180 N.m),
- the engine tie-bar bolt on the subframe (180
N.m).
II - FINAL OPERATION
a Refit the engine undertray.
Tightening torquesm
engine tie-bar bolt on its
support
180 N.m
engine tie-bar bolt on
the subframe
180 N.m
134629
135540
