19D-37
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
K4M
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

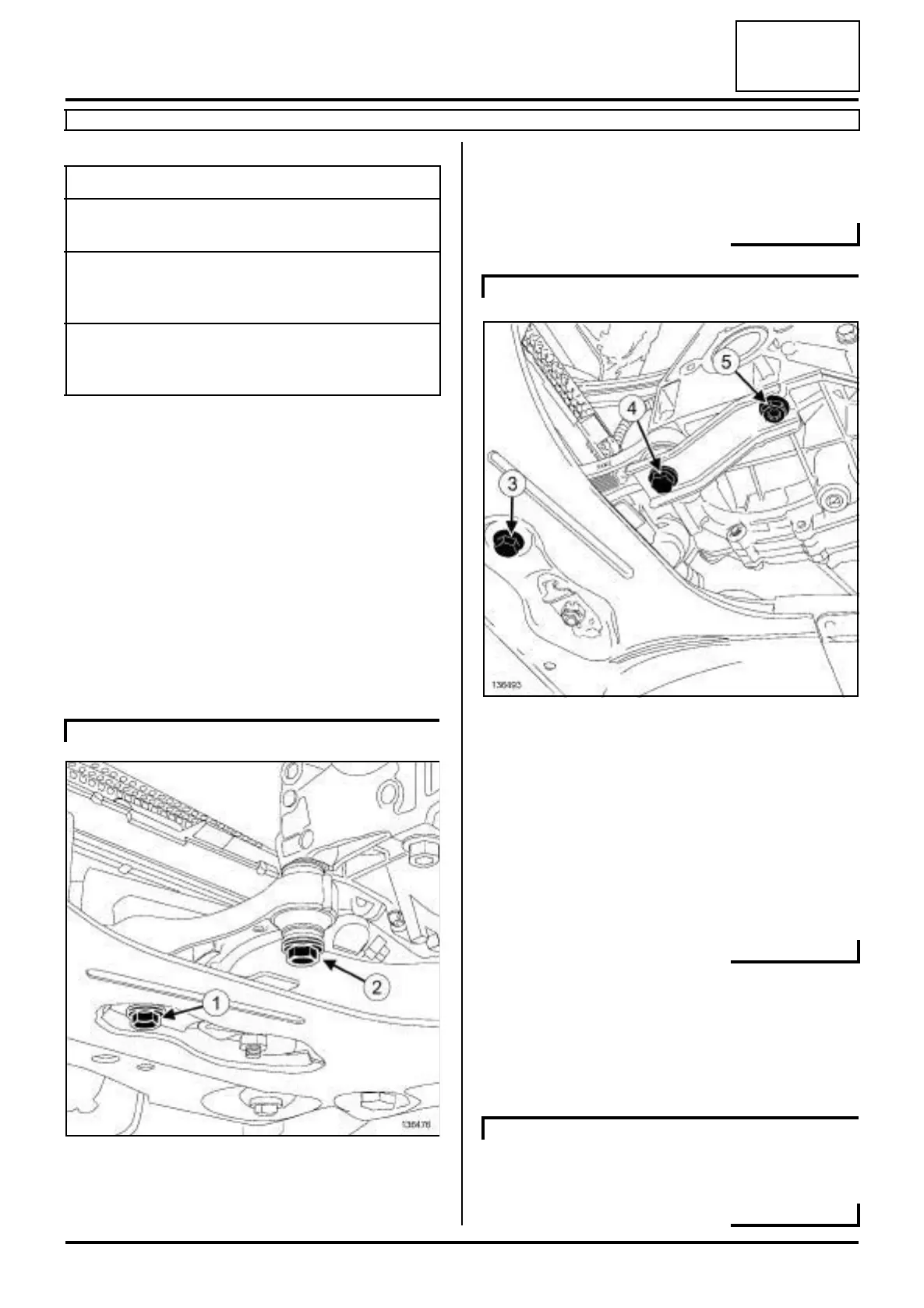

-the bolt (1) of the lower engine tie-bar from the front
axle subframe,
- the gearbox lower engine tie-bar bolt (2) ,
- the lower engine tie-bar.
a Remove:
- the bolt (3) of the lower engine tie-bar from the front
axle subframe,
- the gearbox lower engine tie-bar bolt (4) ,
- the bolt (5) from the gearbox lower engine tie-bar
reinforcement,
- the lower engine tie-bar with its reinforcement.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the lower engine tie-bar.
Tightening torquesm
lower engine tie-bar bolt
on the gearbox
105 N.m
lower engine tie-bar bolt
on the front axle sub-
frame
105 N.m
reinforcement bolt secu-
ring the lower engine
tie-bar to the gearbox
105 N.m
K4M, and 848
136476
K4M, and 858 or 866
136493
K4M, and 848
