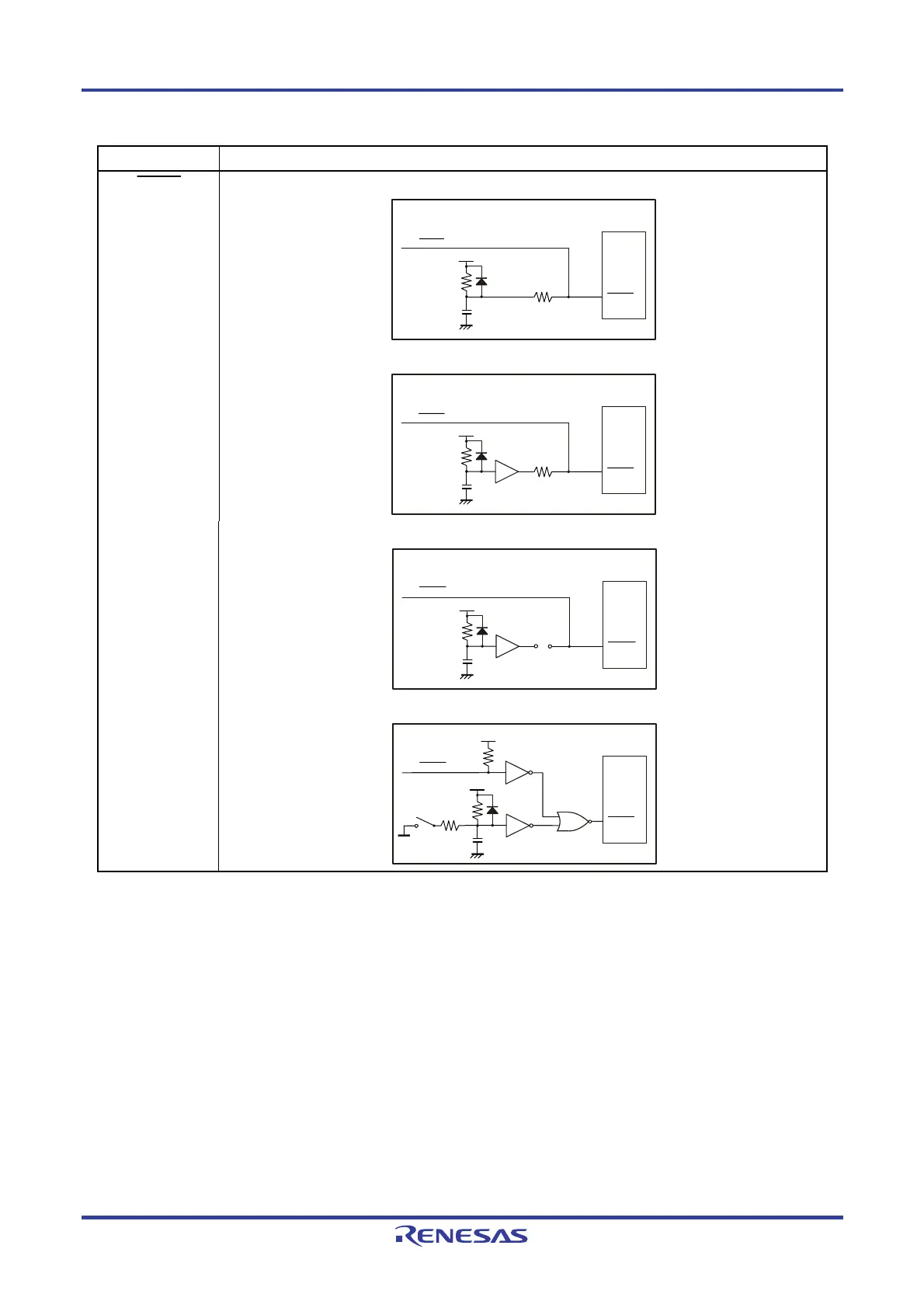

CHAPTER 10 NOTES ON TARGET SYSTEM DESIGN
R20UT0008EJ040
0 Rev. 4.00
Page 192 of 240
Jul 15, 2010
(2/3)
T
arget Device Pin
Recommended
Design
RESET
Correct connect
ion <2>:
T
arget dev
ice
FP5 RESET
RESET
Correct connection <3>:
T
arget dev
ice
FP5 RESET
RESET
Correct connection <4>:
T
arget dev
ice
FP5 RESET
RESET
JUMPER
Correct connection <5>:
T
arget dev
ice
FP5 RESET
RESET
191
193
Table of Contents
Default Chapter
8
Table of Contents
8
Chapter 1 Overview
12
Features
12
Writing Quality
12
Supported Devices
12
FP5 System Overview
13
Operating Environment
15
Hardware Environment
15
Software Environment
16
Hardware Specifications
17
AC Adapters for PG-FP5
18
HCUHEX Files
19
Chapter 2 Hardware Configuration
20
Package Contents
20
System Configuration
20
Host Machine
21
Serial Cable
21
USB Cable
21
AC Adapter
21
Target Cable
21
GND Cable
21
Target System
21
Program Adapter
21
Names and Functions on Main Unit
22
FP5 Control Panel
22
FP5 Connectors
23
Chapter 3 Software Installation
25
Obtaining Software
25
Installation
25
Notes on Installation
26
Installation of USB Driver
26
Uninstallation
30
Uninstallation of USB Driver
30
Updating Programming GUI, Firmware and FPGA
31
Checking the Current Version
32
Installation of Programming GUI
32
Installation of Firmware Update
33
Installation of FPGA Update
36
Chapter 4 Programming Gui Usage
41
Introduction
41
Startup of Programming GUI
41
Menu Bar
45
File] Menu
45
Programmer] Menu
54
Device] Menu
70
Help] Menu
104
Toolbar
105
Action Log Window
106
Programming Parameter Window
107
Status Bar
108
Hint Bar
109
Chapter 5 Example of Operation Using Programming Gui
110
Chapter 6 Usage in Standalone Mode
124
Before Starting Standalone Operation
124
Description of Buttons, Message Display and Status Leds
124
Standalone Operation Menu
126
Commands] Menu
126
Type Setting] Menu
128
Option Setting] Menu
129
Voltage Setting] Menu
131
Utility/Misc.] Menu
132
Chapter 7 Usage the Remote Connector
133
Remote Interface Mode
133
Remote Connector Pins
133
Equivalence Circuits
135
External Connection Example
136
Chapter 8 Usage Communication Commands
137
Starting the Communications Software
137
Command List
140
Description of Commands
142
Command Name
142
Description of FP5 Control Commands
143
Autocon Command
143
Brt Command
144
Conf Command
145
Downprm Command
148
Downset Command
149
Fcks Command
150
Files Command
151
Fpga_Up Command
152
Hex Command
153
Hlp Command
154
Lod Command
155
Prm Command
156
Progarea Command
157
Pwr_Off Command
158
Res Command
159
Security Command
159
Selftest Command
160
Sound Command
161
Srec Command
162
Trc Command
163
Upprm Command
164
Upset Command
165
Ver Command
165
Version_Up Command
166
Description of the FP5 Device Commands
168
Bln Command
168
Con Command
169
Dcon Command
169
Ep/Epv Command
170
Ers Command
171
Gid Command
172
Gob Command
173
Gos Command
174
Gsc Command
175
IDC Command
176
Opb Command
177
Prg Command
178
Read Command
179
Scf Command
180
Sig Command
181
Sum Command
182
Vrf Command
183
Chapter 9 Connectors and Cables
184
Power Supply Connector
184
Serial Connector
185
Serial Cable
186
USB Connector
186
USB Cable
186
Target Connector
187
Target Cable
188
GND Connector
189
GND Cable
189
Remote Connector
190
Chapter 10 Notes on Target System Design
191
Chapter 11 Specifications of Target Interface Circuits
197
So/Txd, RESET
197
Rxd and H/S
197
Clk
198
FLMD0 and FLMD1
198
VDD and VDD2
199
Vpp
199
Chapter 12 Troubleshooting
200
Problems During Startup
200
Problems During Operation
201
Appendix A Messages
204
Message Format
204
Error/Warning Dialog Boxes for Programming GUI Operation
205
Information Dialog Boxes for Programming GUI Operation
209
Error Messages Displayed in FP5 Message Display
212
Appendix B Supplementary Information
215
Appendix C Electrical Specifications of Target Interface
218
Absolute Maximum Ratings (T a = 0 to 40 °C)
218
DC Characteristics (T a = 0 to 40 °C)
219
AC Characteristics (T a = 0 to 40 °C, C = 0 Pf (Unloaded Condition))
220
CLK Output Characteristics
222
A = 0 to 40 °C, C = 0 Pf (Unloaded Condition))
222
Serial Transfer Timing
223
A = 0 to 40 °C, C = 0 Pf (Unloaded Condition))
223
Appendix D Electrical Specifications of Remote Interface
224
Absolute Maximum Ratings (T a = 0 to 40 °C)
224
DC Characteristics (T = 0 to 40°C, C = 0 Pf (Unloaded Condition))
225
AC Characteristics (T = 0 to 40 °C, C = 0 Pf (Unloaded Condition))
226
Standard Mode
226
Bank Mode
228
Simple Mode
230
