PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 44 of 240
Jul 15, 2010

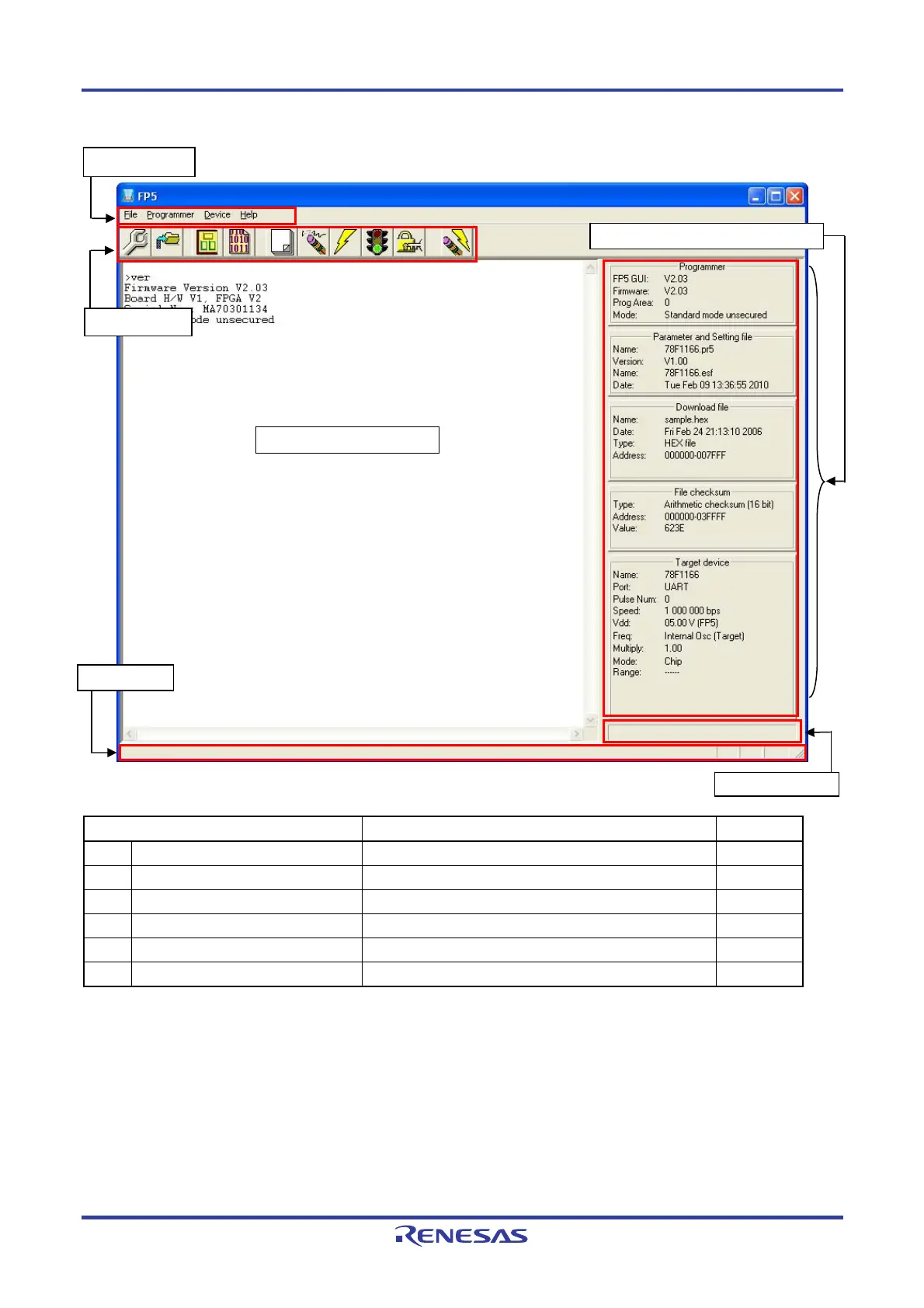

Figure 4-4. Main Window
The main window consists of the following areas.
Name Displayed Items Refer to:
<1> Menu bar Menu items executable by the programming GUI 4.3
<2> Toolbar Frequently used commands, as buttons 4.4
<3> Action log window A programming GUI action log 4.5
<4> Programming parameter window Programming parameter settings 4.6
<5> Status bar Command progress shown as a color or with a message 4.7
<6> Hint bar Hints for commands and toolbar 4.8
<2> Toolbar
<3> Action log window
<4> Programmer parameter window
<1> Menu bar
<5> Status ba
r
<6> Hint bar
