PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 43 of 240
Jul 15, 2010

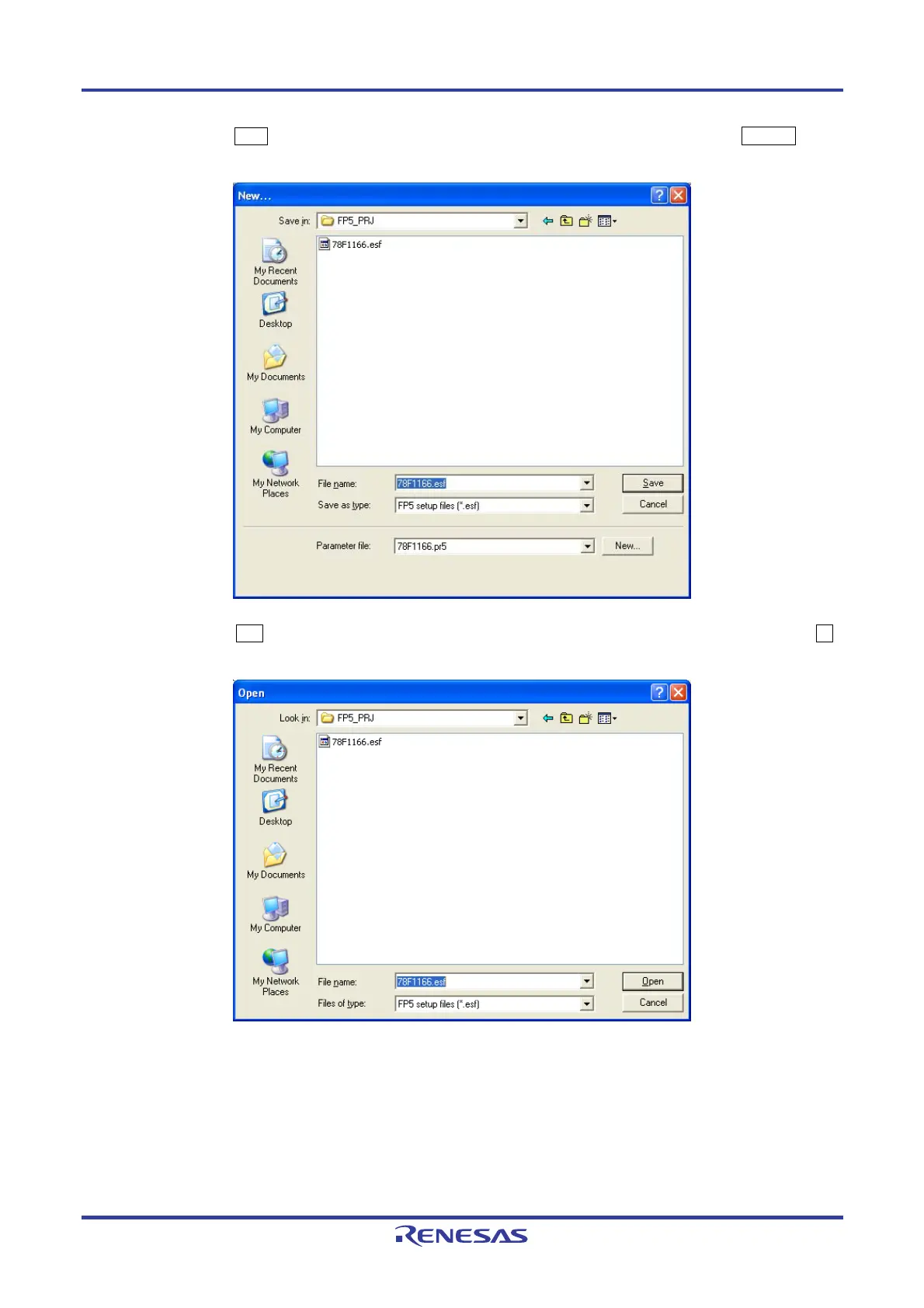

Step 3. Clicking Yes will open a dialog box to make a new ESF file. Refer to 4.3.3 (12) (a) <3> New… Button
for the steps that follow.
Clicking No will open a dialog box to select a previously created ESF file. Refer to 4.3.3 (12) (a) <3> ...
Button for the steps that follow.
Step 4. Next, the device setup dialog box that is opened when [Device] menu -> [Setup...] command is executed
will be opened, so make the settings. Refer to 4.3.3 (14) [Setup...] command for the steps that follow.
