(13) [G
et Flash options] command
The [G
et Flash options] command reads the settings for the flash options for the target device and displays the
result in the [Flash options] area on the [Advanced] tab in the Device Setup dialog box. When execution of this
command is enabled, execute this command before the [Set Security
] command, [Set Option bytes] command, or
[Set OCD Security ID] command; the settings for the security functions or the boot area can thus be checked. For
details on the flash option settings, refer to 4.3.3 (14) (c) <3> [Flash options] area.
Caution When loading an HCUHEX file, the HCUHEX file is handled as master data, so even though the
flash option settings specified for the device can be checked by executing the [G
et Flash
Options] command, these settings cannot be applied to the device. The OK button in the
Device Setup dialog box is therefore unavailable. In this case, click the Cancel button and
close the Device Setup dialog box. Note that the OK button becomes available if the HCUHEX
file is changed to a HEX file in the [Object HEX file] area. After changing the file, the HCUHEX file
information remains unchanged in the [Command Options] and [Flash options] areas.
Remark Flash options: General term for security settings, rewrite protection settings, reset vector handling
function settings, option byte settings, and on-chip debug security ID settings

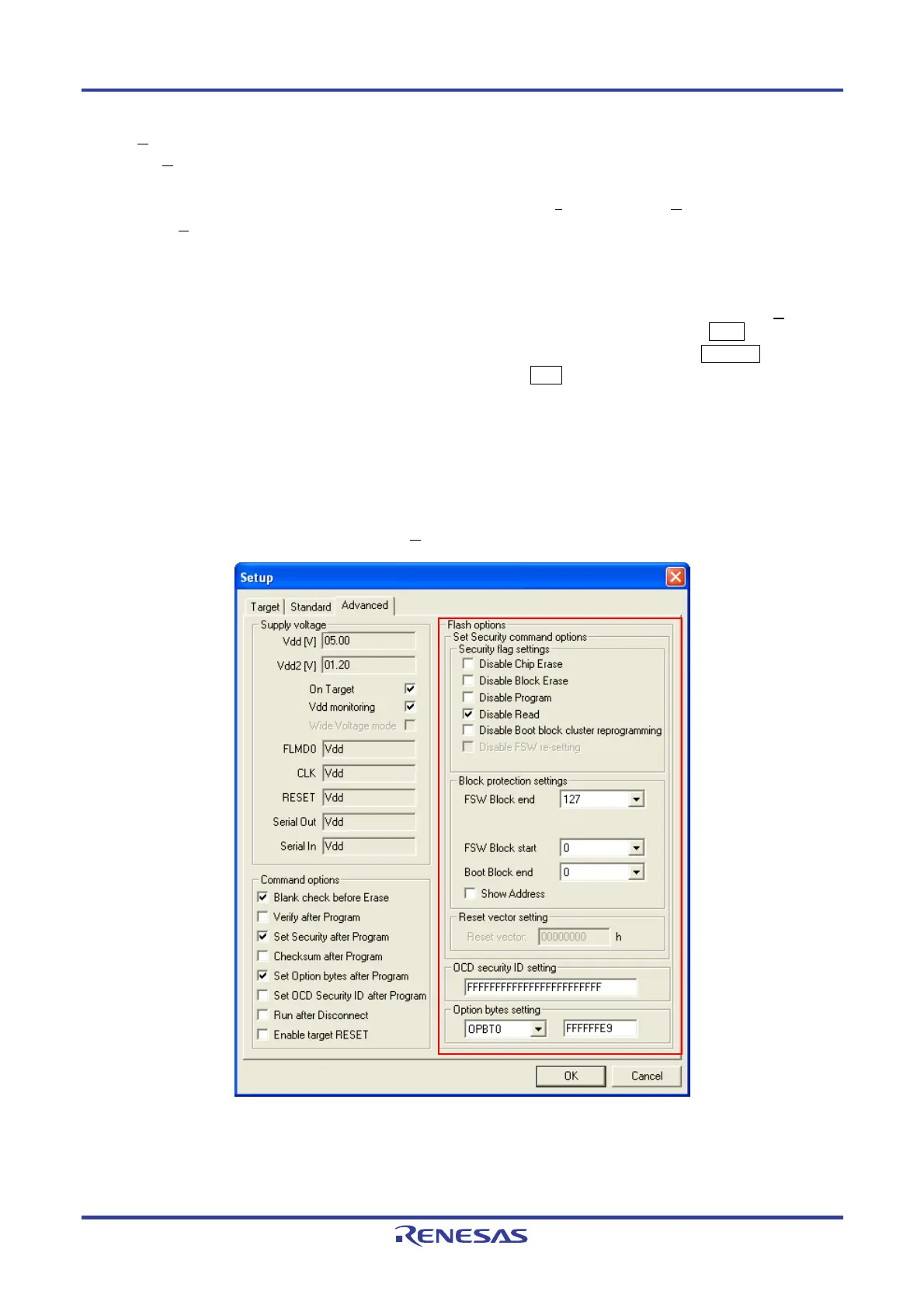

Figure 4-45. [G
et Flash options] Command
