PG-FP5
CHAPTER 4
PROGRAMMING GUI USAGE
R20UT0008EJ040
0 Rev. 4.00
Page 81 of 240
Jul 15, 2010

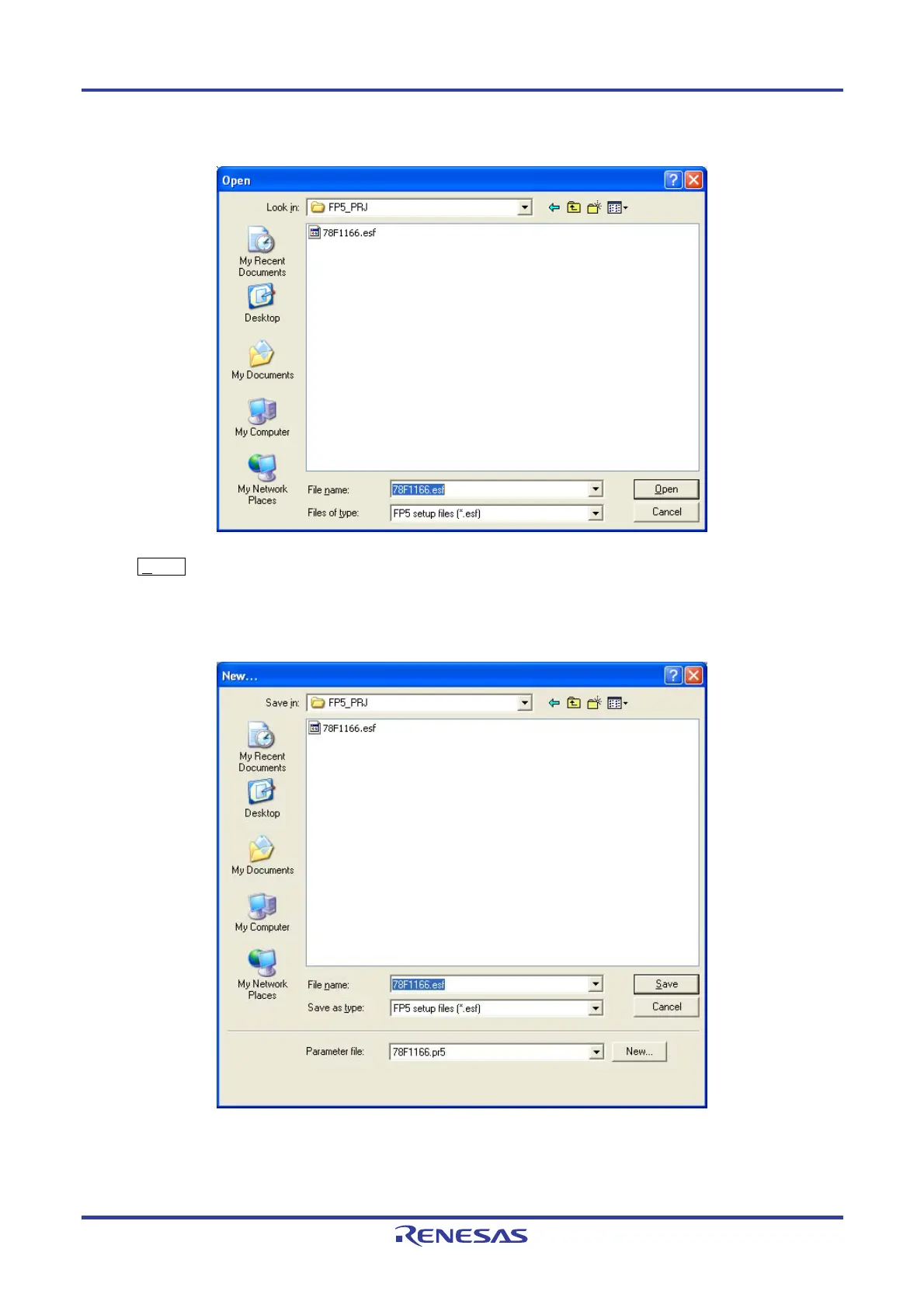

Figure
4-52. ESF
File Select Dialog Bo
x
N
ew
...
button
Click this button to create a new ESF file. The following dialog box
will be displayed.
Figure
4-53.
New ESF File
Creation Dialog Box
The PR5 file stored in the FP
5_PRJ folder in the pr
ogramming GUI installation fol
der is displayed in the
[Parameter file:] list. Select the PR
5 file for the target device used.
