PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 93 of 240
Jul 15, 2010
(c) [Advanced] tab in Device Setup dialog box
On the [Advanced] tab, the programming voltage, options added to programming commands, and security
settings can be configured. This tab consists of the following items.
<1> [Supply voltage] area
<2> [Command options] area
<3> [Flash options] area
<4> [Set Security command options] area
<5> [Security flag settings] area
<6> [Block protection settings] area
<7> [Reset vector setting] area
<8> [OCD security ID setting] area
<9> [Option bytes setting] area

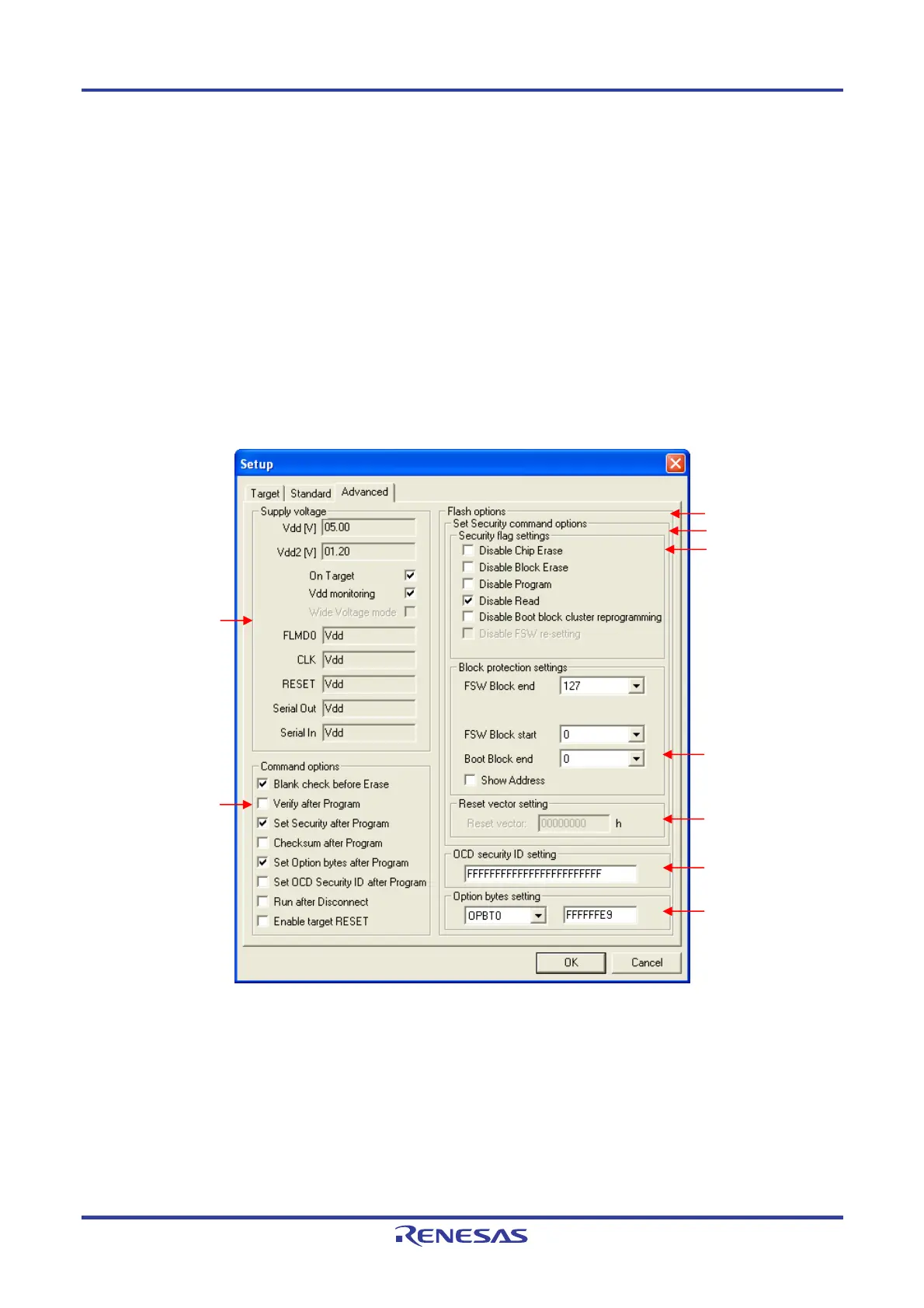

Figure 4-64. Device Setup Dialog Box - [Advanced] Tab
<1>
<2>
<3>
<4>
<6>
<8>
<5>
<7>
<9>
