103

Click the tab "Printer".

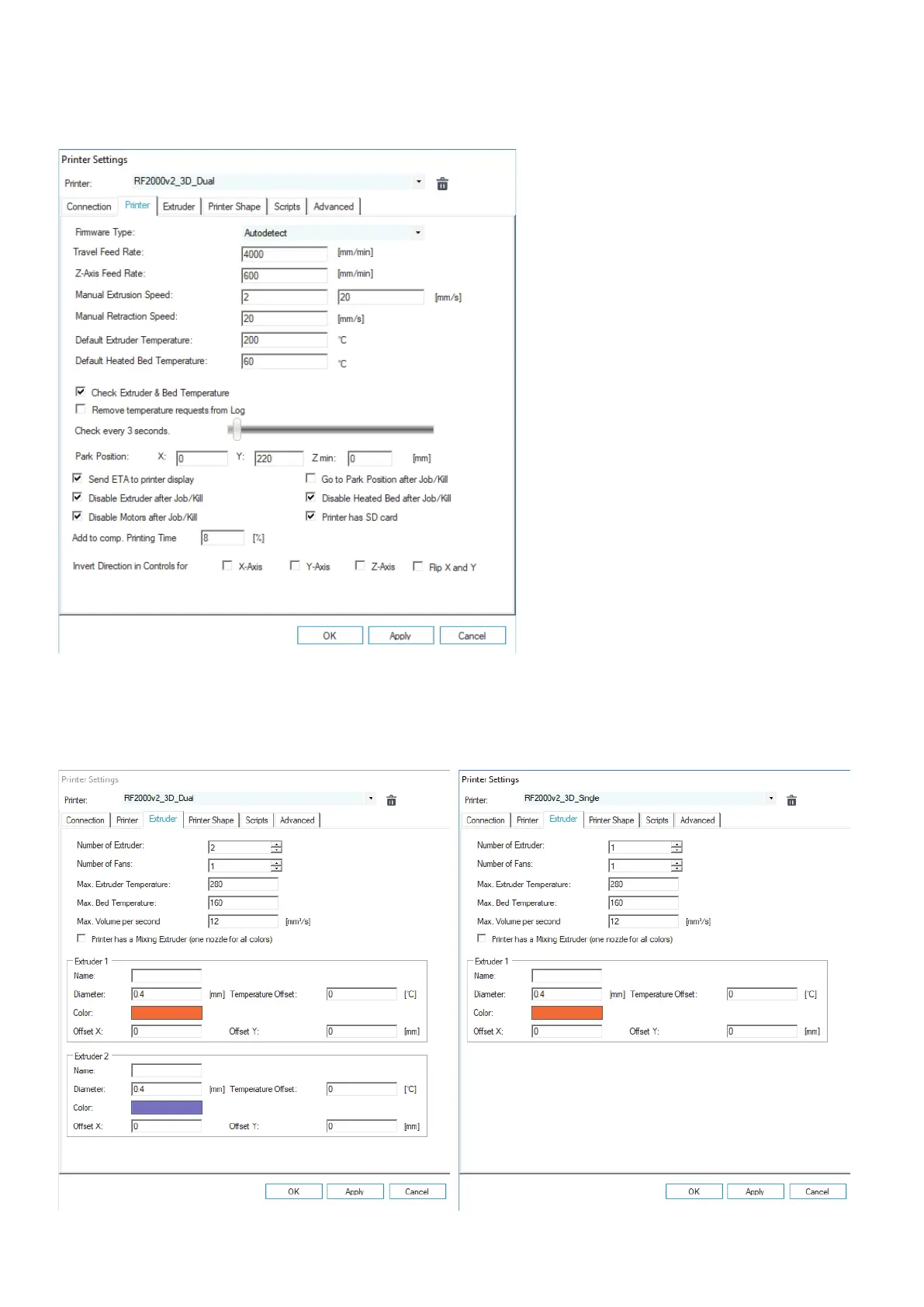

Transferthesettings1:1asshowninthefollowinggureandclick"Apply".

Dual and single extruder

Click the tab "Extruder".

Transferthesettings1:1asshowninthefollowinggureandclick"Apply".

Dual extruder Single extruder
