Fax Option (D433) Installation
SM 9 D432/D433
D432/D433
Fax Option
Type
C2550/C2530

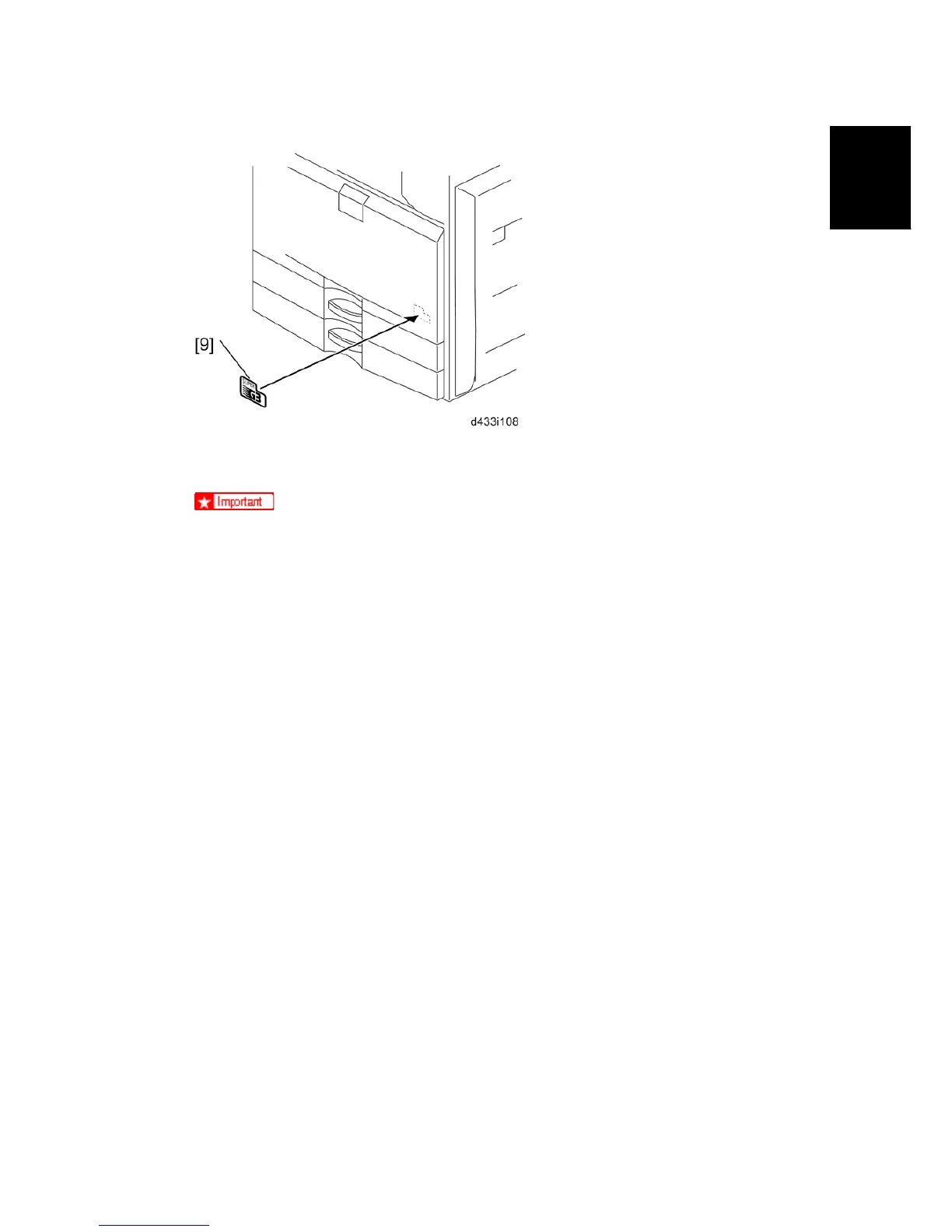

12. Attach the Super G3 decal [A].
13. Plug in the machine and turn on the main power switch.
 After you turn the machine on, if you see a message that tells you the SRAM
has been formatted due to a problem with SRAM, turn the machine off and on
again to clear the message.
14. Enter the "User Tools" mode and set date and time.
15. Do SP3102 in the fax SP mode and enter the serial number for the fax unit.
16. Enter the correct country code with SP1101-016 (System SW 0F, Country/area code
for functional settings).
17. Exit the SP mode, and turn the machine off and on.

Table of Contents

Other manuals for Ricoh Aficio MP C2050

Preview: Operating Instructions
Operating Instructions328 pages
Preview: User Manual
User Manual41 pages
Preview: Specification
Specification8 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh Aficio MP C2050 and is the answer not in the manual?

Ricoh Aficio MP C2050 Specifications

Ricoh Aficio MP C2050

General Specifications IconGeneral Specifications
output speed20 ppm BW & Full-Color
warm-up time25 seconds
first copy time full-color9.5 seconds
copy resolution600 x 600 dpi
original capacity50 sheets
dimensions23.1" x 25.8" x 33.3" (587 x 655 x 845 mm)
weight220 lbs
power requirements120V, 60Hz, 12A
Printer Controller IconPrinter Controller
cpuRM7035C @ 533MHz
memory768 MB (512 MB + 256 MB) RAM (Standard); 1GB RAM (Maximum)
max. print speed20 ppm BW & Full-Color
max. print resolution1200 x 1200 dpi
standard interfaces10Base-T/100Base-TX Ethernet (RJ-45), USB 2.0 Device, USB 2.0 Host I/F
Scanner Specifications IconScanner Specifications
scanner resolutionFrom 100 to 600 dpi (1200 dpi for TWAIN)
scanning speed bw41 ipm
scanning speed full-color26 ipm
scan area main scan11.7" (297mm)
scan area sub scan17" (432mm)

Ricoh Aficio MP C2550

General Specifications IconGeneral Specifications
output speed25 ppm BW & Full-Color
warm-up time25 seconds
first copy time full-color9.5 seconds
copy resolution600 x 600 dpi
original capacity50 sheets
dimensions23.1" x 25.8" x 33.3" (587 x 655 x 845 mm)
weight220 lbs
power requirements120V, 60Hz, 12A
Printer Controller IconPrinter Controller
cpuRM7035C @ 533MHz
memory768 MB (512 MB + 256 MB) RAM (Standard); 1GB RAM (Maximum)
max. print speed25 ppm BW & Full-Color
max. print resolution1200 x 1200 dpi
standard interfaces10Base-T/100Base-TX Ethernet (RJ-45), USB 2.0 Device, USB 2.0 Host I/F
Scanner Specifications IconScanner Specifications
scanner resolutionFrom 100 to 600 dpi (1200 dpi for TWAIN)
scanning speed bw41 ipm
scanning speed full-color26 ipm
scan area main scan11.7" (297mm)
scan area sub scan17" (432mm)
