Image Adjustment
D037/D038/D040/D041 4-4 SM
1. Put the test chart on the exposure glass. Then make a copy from one of the feed
stations.
2. Check the leading edge and side-to-side registration. Adjust the following SP modes if
necessary.
Standard: 0 ± 2 mm for the leading edge registration, 0 ± 2 mm for the side-to-side
registration.
SP mode
Leading Edge Registration SP4-010-001
Side-to-Side Registration SP4-011-001
4.3.2 ARDF
ARDF side-to-side, leading edge registration and trailing edge

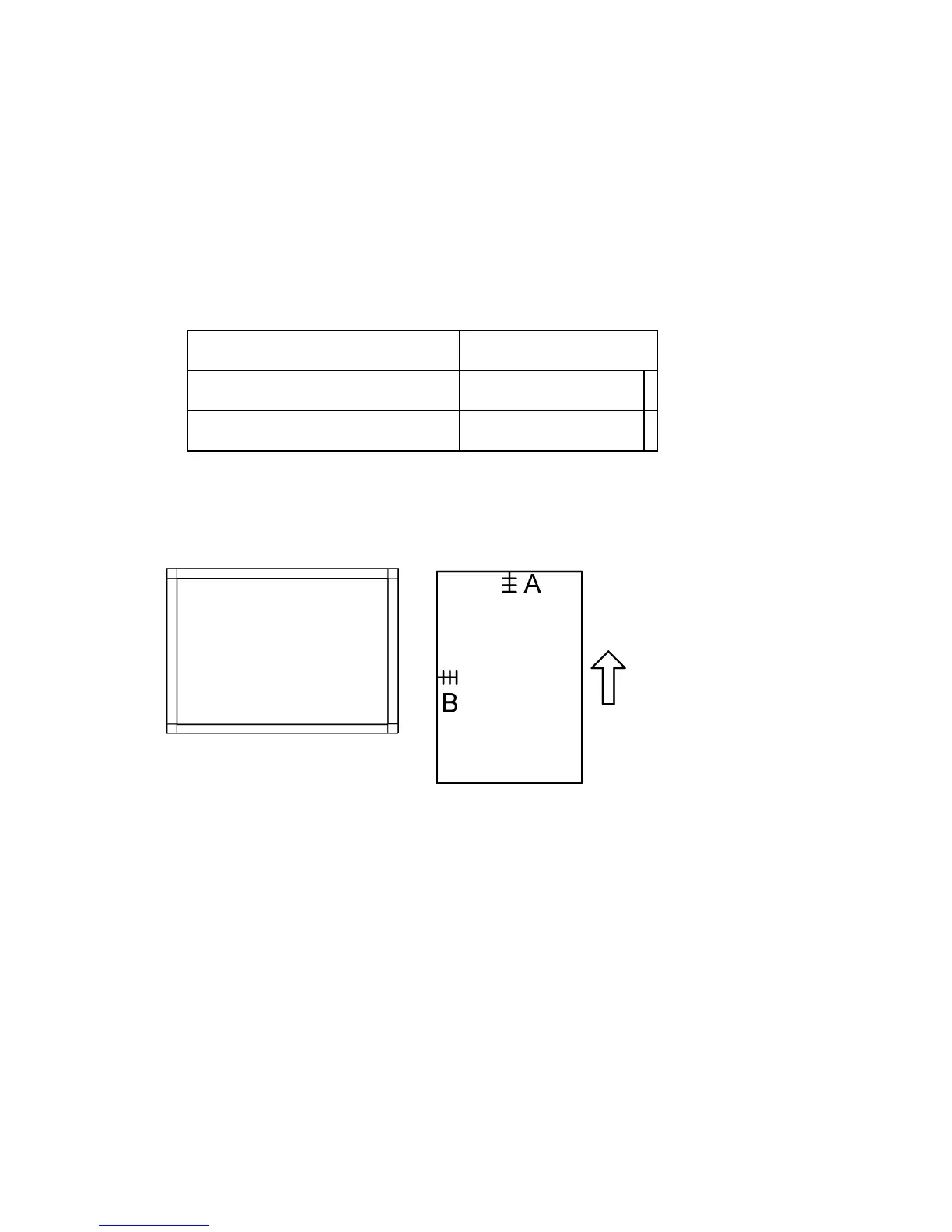

A: Leading edge registration, B: Side-to-Side registration
Use A3/DLT paper to make a temporary test chart as shown above.
1. Put the temporary test chart on the ARDF. Then make a copy from one of the feed
stations.
2. Check the registration. Check the leading edge and side-to-side registration. Adjust the
following SP modes if necessary.
Standard: 4.2 ± 3.0 mm for the leading edge registration, 2 ± 3.0 mm for the
side-to-side registration. Use the following SP modes to adjust if necessary.
