Image Creation
SM 4-49 D037/D038/D040/D041
Replacement
& Adjustment
4.7.2 DRUM UNIT AND DEVELOPMENT UNIT
The new drum unit has a front cover. When you attach the new drum unit to the
development unit, remove the front cover first.
Use it for installing the new drum unit and development unit.
1. If you install a new drum unit only, set SP 3902-xxx to "1".
 Black: 3902-009
 Cyan: 3902-010
 Magenta: 3902-011
 Yellow: 3902-012
 If you do this, then the machine will reset the PM counter for the drum unit
automatically, after you turn the power on again.
2. If you install a new development unit only, set SP 3902-xxx to "1".
 Black: 3902-001
 Cyan: 3902-002
 Magenta: 3902-003
 Yellow: 3902-004
 If you do this, then the machine will reset the PM counter for the development
unit automatically, after you turn the power on again.
3. Turn the machine power off.
4. PCDU ( Section: PCDU (Photo Conductor and Development Unit))

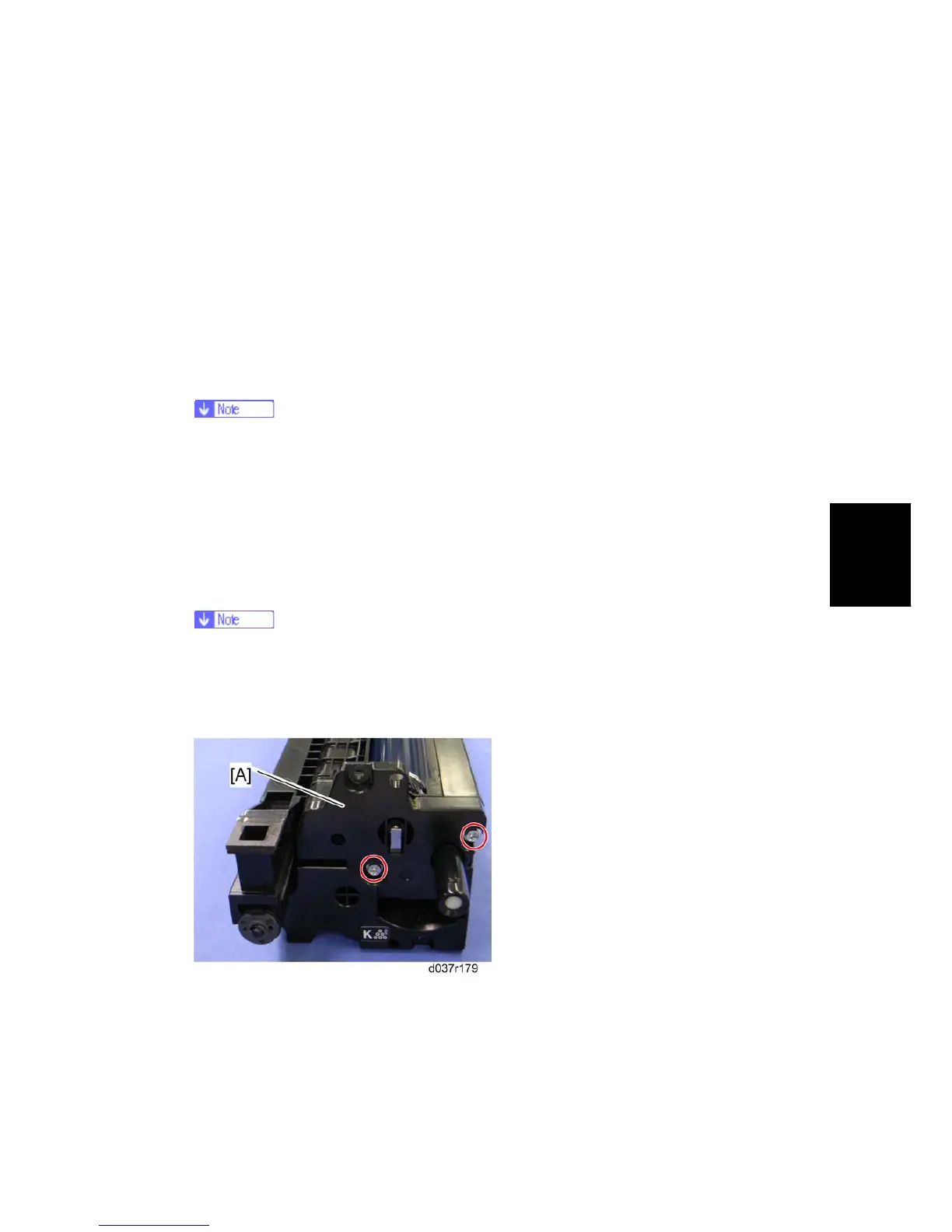

5. Front cover [A] ( x 2)
