Controller Options
D037/D038/D040/D041 2-110 SM
Update Procedure

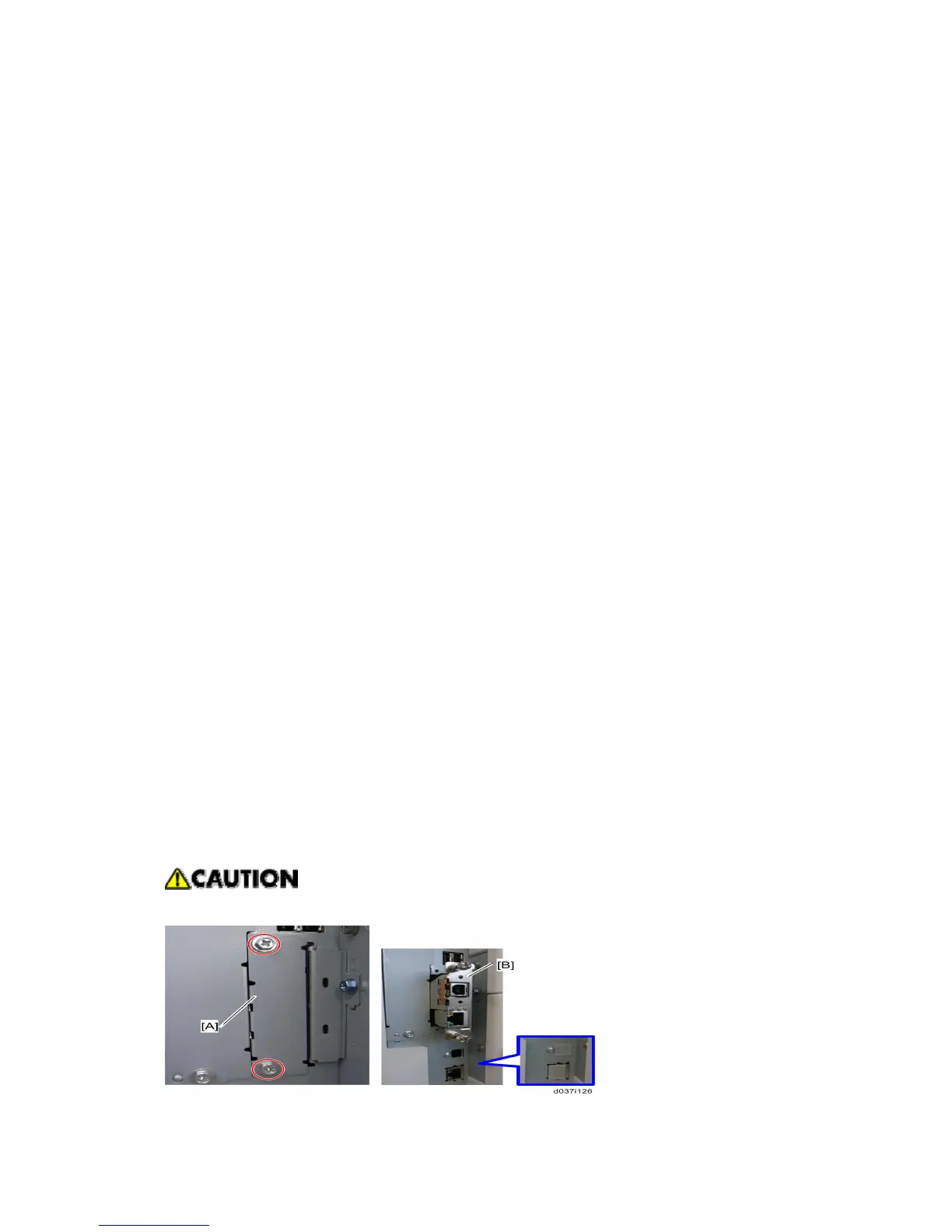

1. Remove the slot cover [A] for SD cards ( x 1).
2. Turn the SD-card label face to the rear of the machine. Then push it slowly into slot 2
until you hear a click.
3. Plug in and turn on the main power switch.
4. Push the "User Tools" key.
 If an administrator setting is registered for the machine, step 5 and 6 are required.
Otherwise, skip to step 7
5. Push the "Login/ Logout" key.
6. Login with the administrator user name and password.
7. Touch "Extended Feature Settings" twice on the LCD.
8. Touch "Uninstall" on the LCD.
9. Touch the "Browser" line
10. Confirmation message appears on the LCD.
11. Touch "Yes" to proceed.
12. Reconfirmation message appears on the LCD.
13. Touch "Yes" to uninstall the browser unit.
14. You will see "Uninstalling the extended feature... Please wait.", and then "Completed".
15. Touch "Exit" to go back to the setting screen.
16. Exit "User/Tools" setting, and then turn off the main power switch.
17. Remove the SD card from SD card slot 2.
18. Overwrite the updated program in the "sdk" folder of the browser unit application with
PC.
19. Do the "Installation Procedure" to install the browser unit.
2.22.13 GIGABIT ETHERNET (D038/D041 ONLY)
 Unplug the main machine power cord before you do the following procedure.
Rev. 6/13/2011
