Paper Size Detection
SM 19 D331
Paper Tray
Unit PB3030
D331
2.6 PAPER SIZE DETECTION

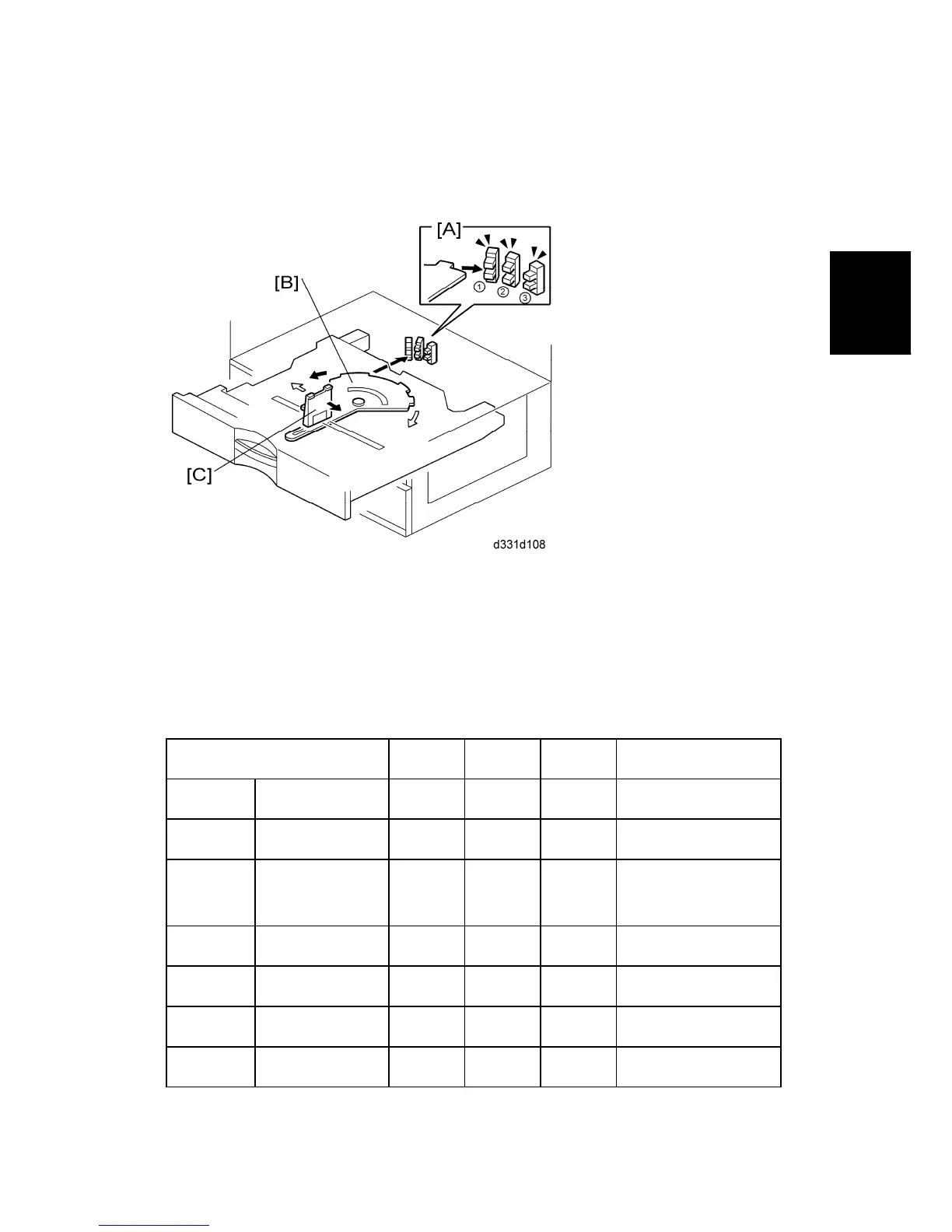

There are three paper size sensors [A] (SN1, SN2 and SN3) on the paper tray unit. Each
paper tray has its own actuator [B], with a unique combination of notches. This actuator is
moved when the paper end fence [C] is adjusted for the installed paper. To determine
which size has been installed, the CPU reads which paper size sensors the actuator has
switched off. Refer to the size detection lists as shown below.
EU/ AISA Size SN1 SN2 SN3 SP Setting
A6 SEF 148 x 105 OFF ON OFF A5 LEF
B5 LEF 182 x 257 ON OFF ON B6 SEF/ Exe LEF
A4 LEF 210 x 297 ON ON OFF
LT LEF/ A5 SEF/ HLT
SEF
B5 SEF 257 x 182 OFF OFF ON
LT SEF 279 x 216 OFF OFF OFF
A4 SEF 297 x 210 ON OFF OFF LG SEF
B4 SEF 364 x 257 ON ON ON
