Downloading Stamp Data
SM 5-25 D037/D038/D040/D041
System
Maintenance
Reference
5.7 DOWNLOADING STAMP DATA
The stamp data should be downloaded from the controller firmware to the hard disks at the
following times:
After the hard disks have been replaced.
The print data contains the controller software. Execute SP 5853 to download the fixed
stamp data required by the hard disks.
1. Enter the SP mode.

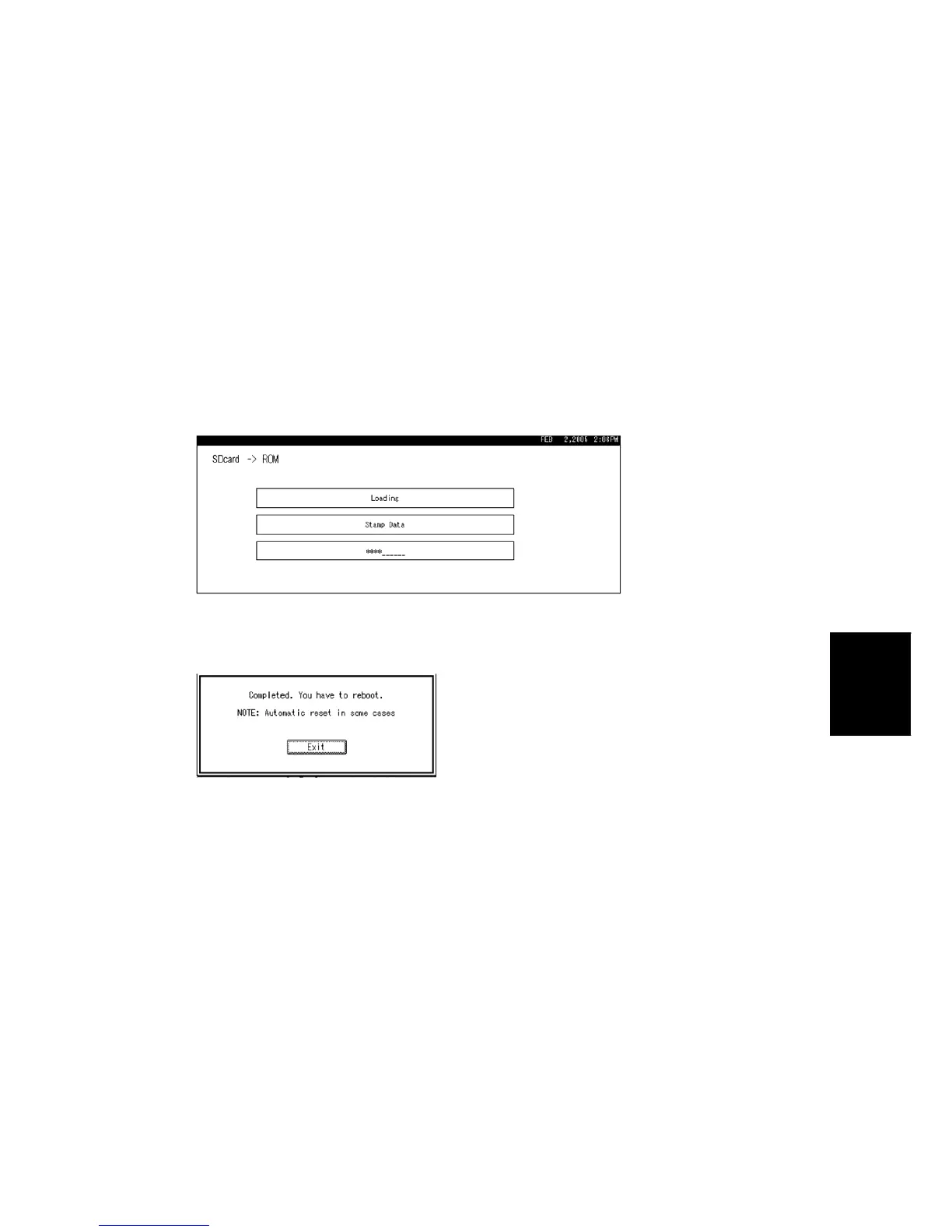

2. Select SP5853 and then press “EXECUTE”. The following screen opens while the
stamp data is downloading.
The download is finished when the message prompts you to close.
3. Press the “Exit” button. Then turn the copier off and on again.
