Troubleshooting Guide
SM 6-7 D037/D038/D040/D041
Trouble-
shooting

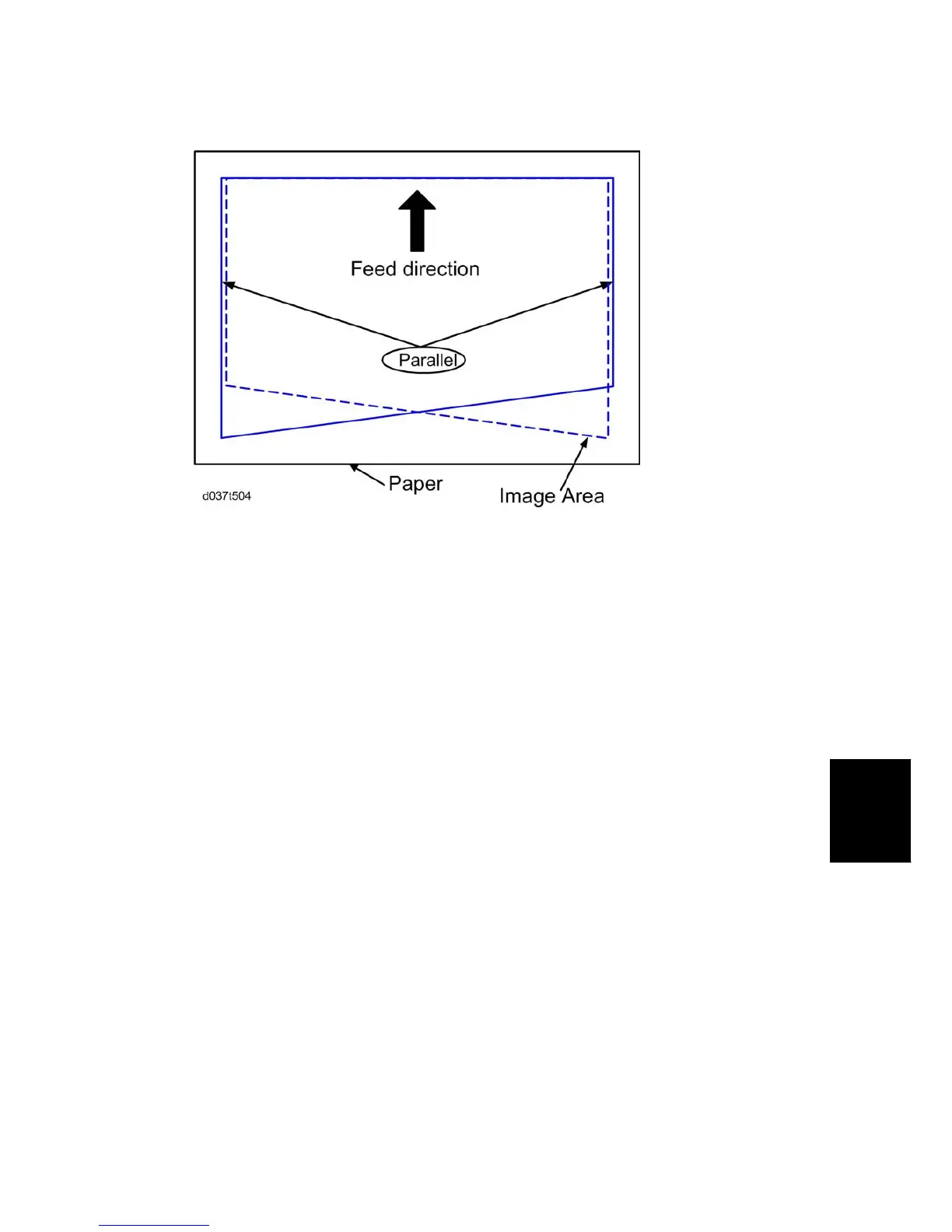

2. Make sure the horizontal lines are parallel.
“Parallel”: The gap between horizontal lines is 1.8 mm or less.
3. If the lines are not parallel, check the following and apply corrections as necessary:
Make sure that the side fences of the tray are set neatly against the sides of the
paper.
Make sure that the PTR unit is connected to the bracket correctly.
Make sure that the shafts of the duplex unit are not bent nor damaged.
Adjusting the Trapezoid Image
1. Remove the following items:
Fusing unit ( Section: Fusing Unit)
Front right cover ( Section: Front Right Cover)
PCDU toner collection bottle ( Section: PCDU Toner Collection Bottle)
Inner cover ( Section: Inner Cover)
Inner right cover ( Section: Inner Right Cover)
