2.2.3 PICK-UP AND SEPARATION

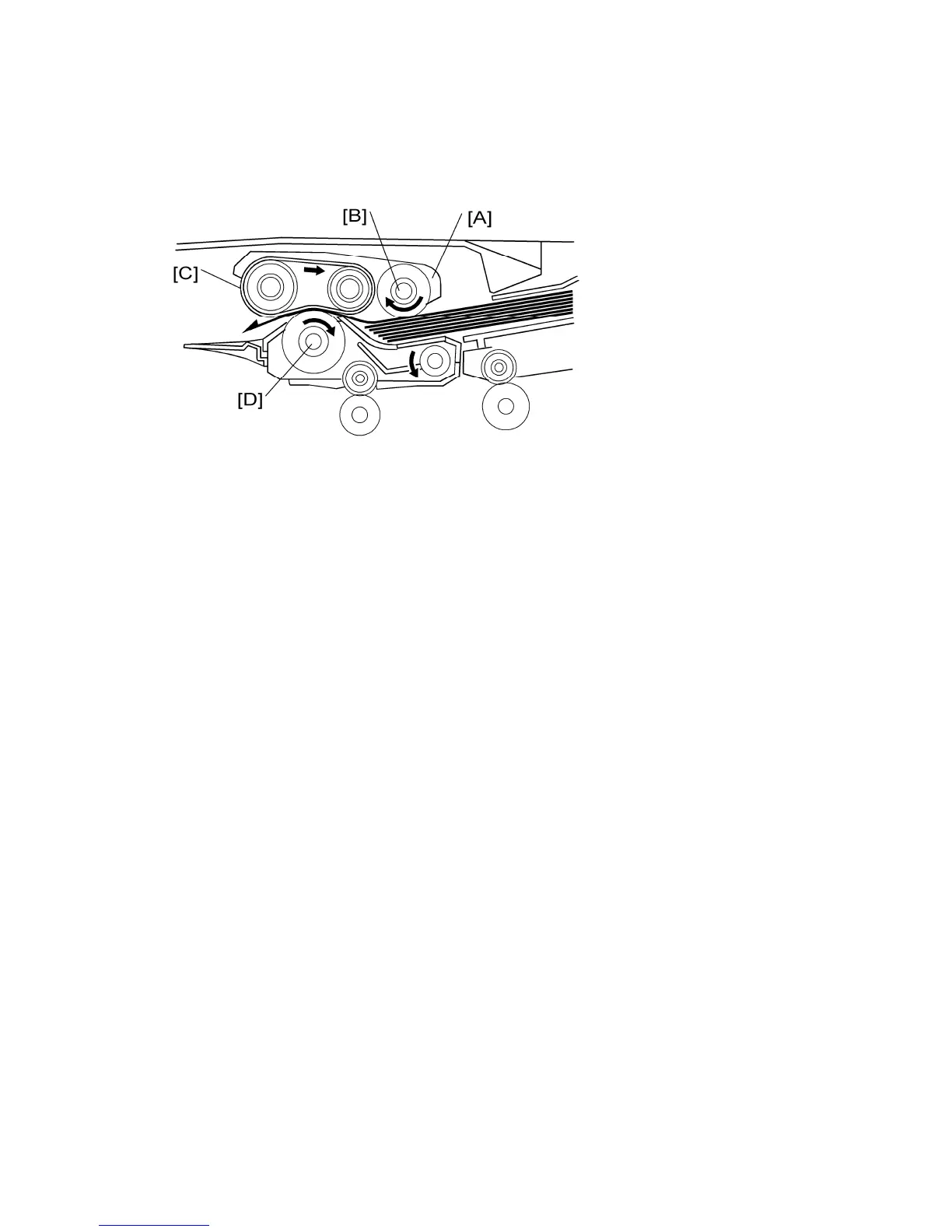

The original is set with the image facing up. The original pushes actuator and the original
set sensor is activated.
After pressing the start button, the feed clutch is activated and the original feed unit [A]
moves down. At the same time, the pick-up solenoid is activated and the original table lifts
until the original comes in contact with the pick-up roller [B]. The pick-up roller then feeds
the top sheet of paper.
After being fed from feed belt [C], the topmost sheet is separated from the stack by the
separation roller [D] and sent to the skew correction roller.
The mechanism is an FRR system, consisting of the original feed belt [C] and separation
roller [D].
