Ricoh Aficio MP C2050 Service Manual

Fax Unit Options
SM 13 D432/D433
D432/D433
Fax Option
Type
C2550/C2530
9. Set the handset on the handset bracket.

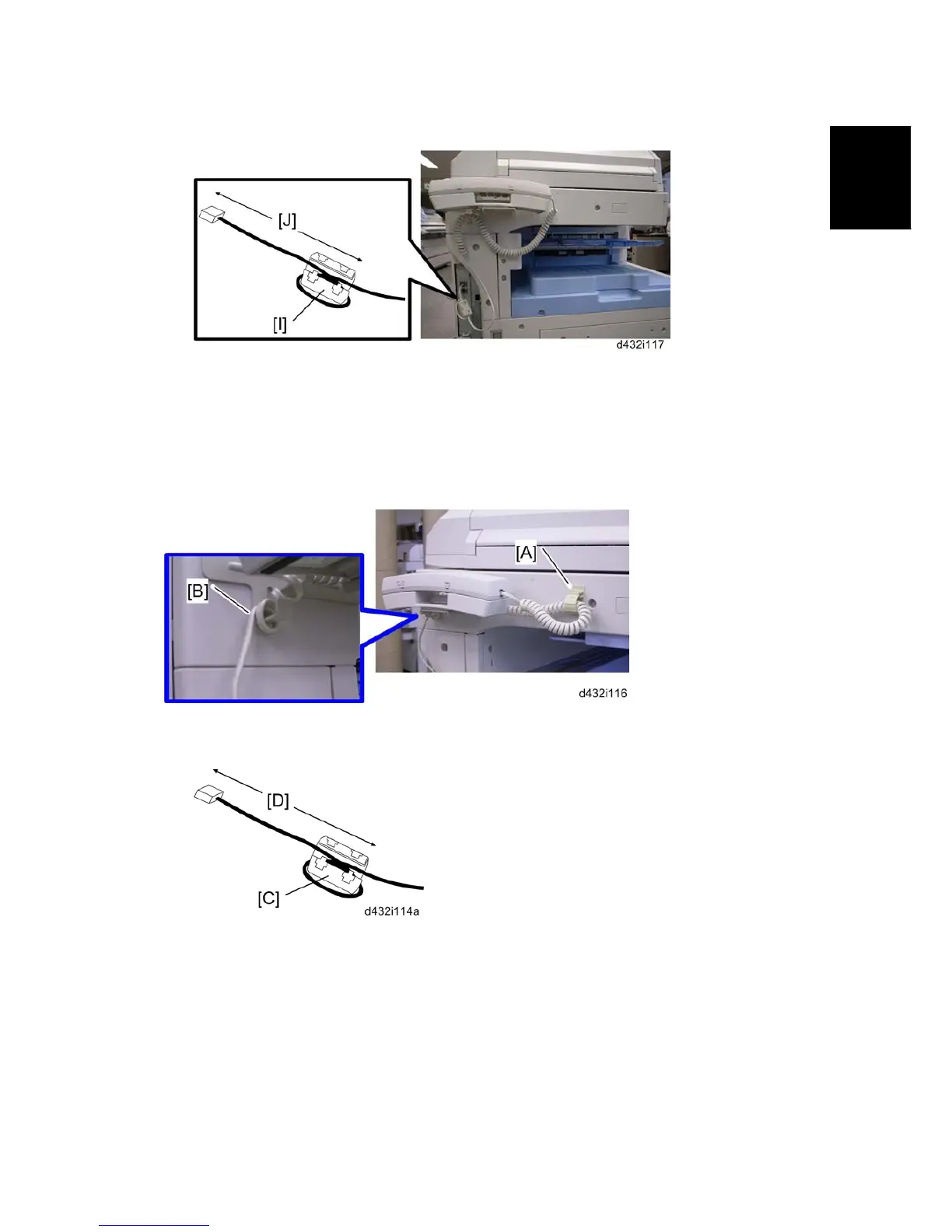

10. Put the ferrite core [I] on the handset core as shown. The length [J] must be 60 mm.
11. Connect the handset cable to the “TEL” jack at the rear of the machine.
D037/D041 with the internal finisher
Do steps from 1 to 9 in the “Handset (B433)” installation procedure.
1. Attach the clamp [A] to the scanner left cover.
2. Set the telephone cable [B] as shown above.
3. Put the ferrite core [C] on the handset core as shown. The length [D] must be 60 mm.
4. Connect the handset cable to the “TEL” jack at the rear of the machine.
