Paper Transfer
SM 4-71 D037/D038/D040/D041
Replacement
& Adjustment

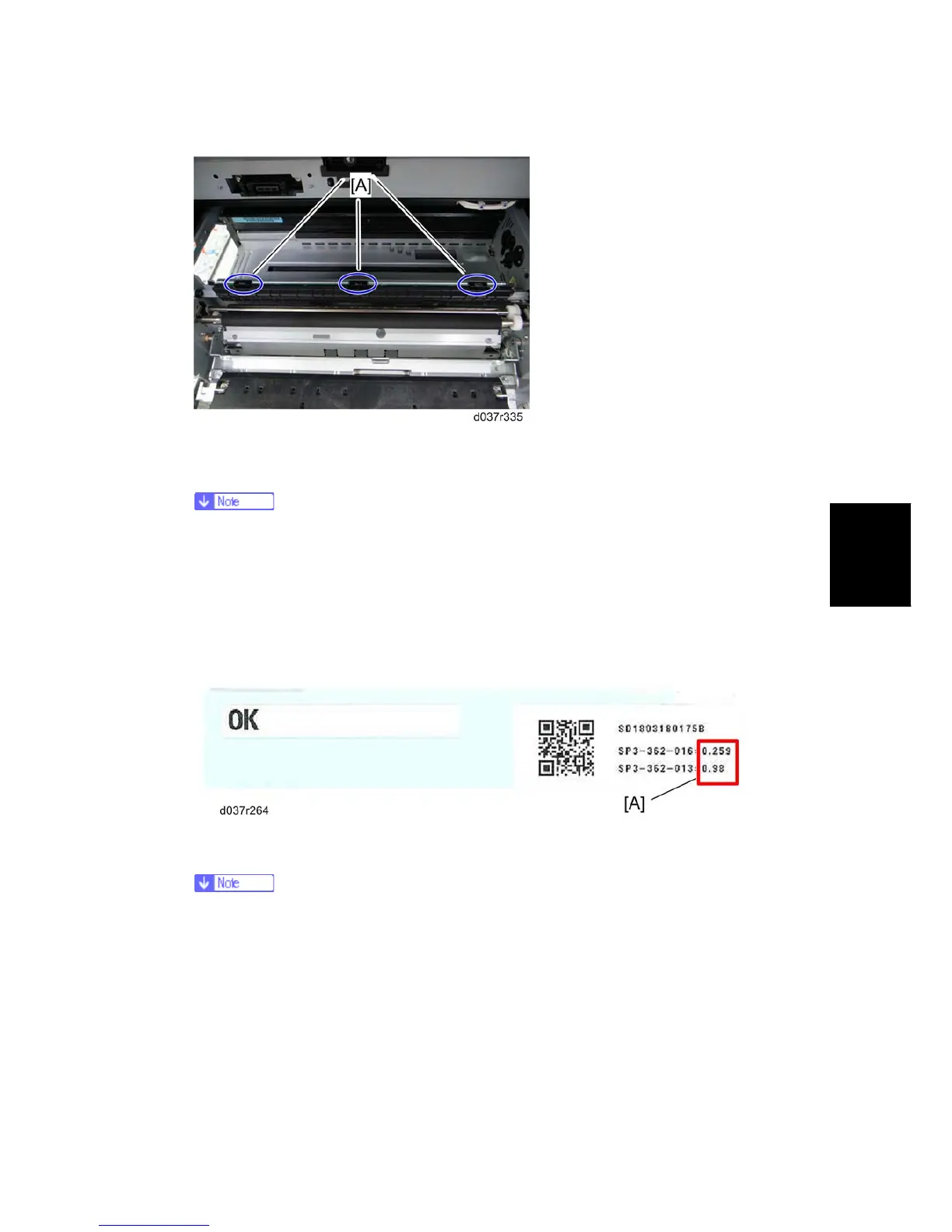

3. Clean the ID sensors [A].
Use a cloth moistened with alcohol to clean the ID sensors.
Do not use a dry cloth. Otherwise, the ID sensors may get more dirty due to
static electricity.
After installing a new ID sensor unit/board
Do the following adjustment after installing a new ID sensor unit/board.
1. Plug in and turn on the main power switch of the copier.
2. Enter the SP mode.
3. Input all correction coefficients [A] for the ID sensor with the SP modes referring to the
barcode sheet provided with the new ID sensor unit/board.
For example, input "0.98" with SP3-362-013.
4. Exit the SP mode.
4.9.4 TEMPERATURE AND HUMIDITY SENSOR
1. Right rear cover ( Section: Right Rear Cover)
