Component Layout
D331 10 SM

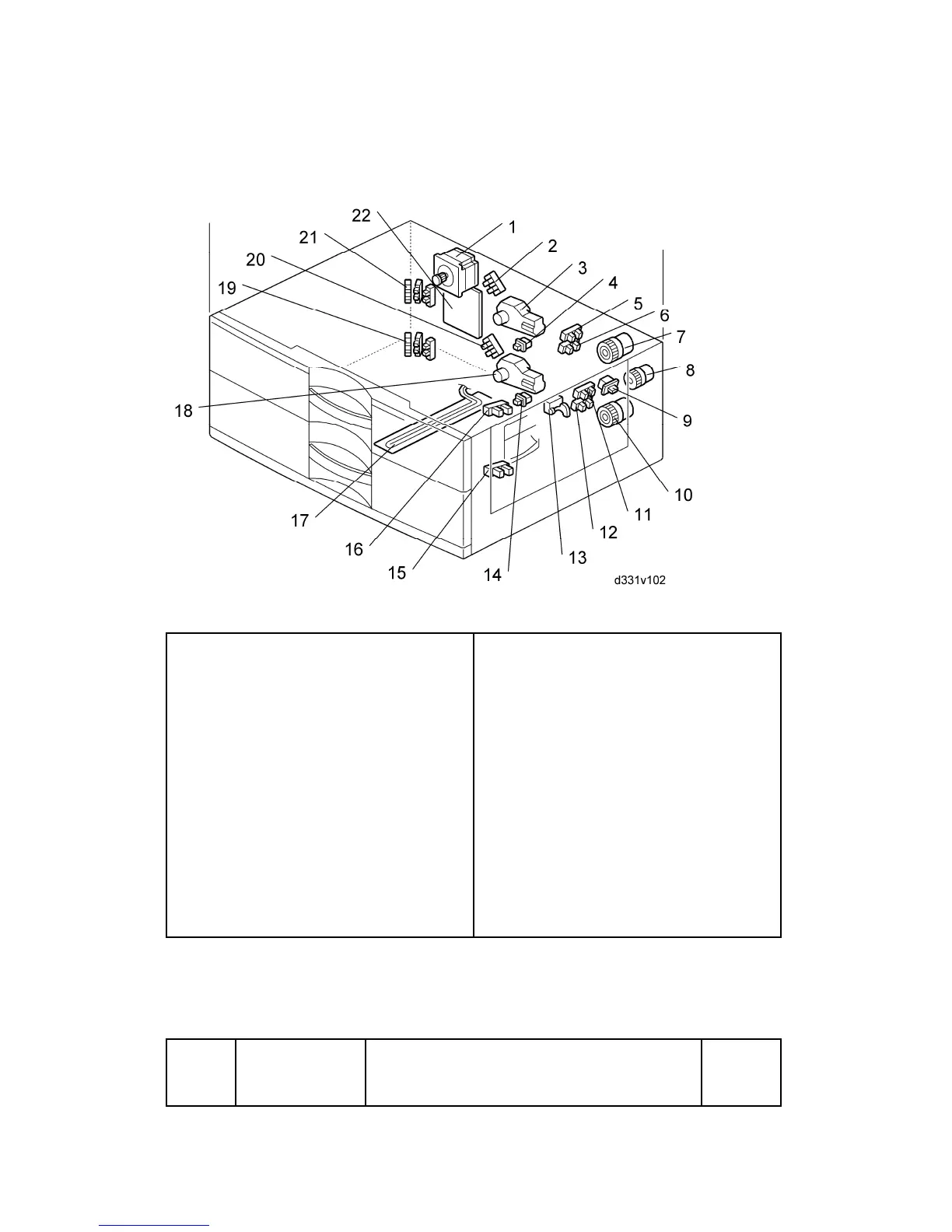

2.1.2 ELECTRICAL COMPONENT LAYOUT
1. Paper feed motor
2. Upper lift sensor
3. Upper lift motor
4. Upper tray set switch
5. Upper paper height 2 sensor
6. Upper paper height 1 sensor
7. Upper paper feed clutch
8. Relay clutch
9. Tray cover switch
10. Lower paper feed clutch
11. Lower paper height 2 sensor
12. Lower paper height 1 sensor
13. Vertical transport sensor
14. Lower tray set switch
15. Lower paper end sensor
16. Upper paper end sensor
17. Optional tray heater
18. Lower lift motor
19. Lower paper size sensors
20. Lower lift sensor
21. Upper paper size sensors
22. Tray main board
