Component Layout
D366 12 SM
2. DETAILED DESCRIPTIONS
2.1 COMPONENT LAYOUT
2.1.1 MECHANICAL COMPONENT LAYOUT

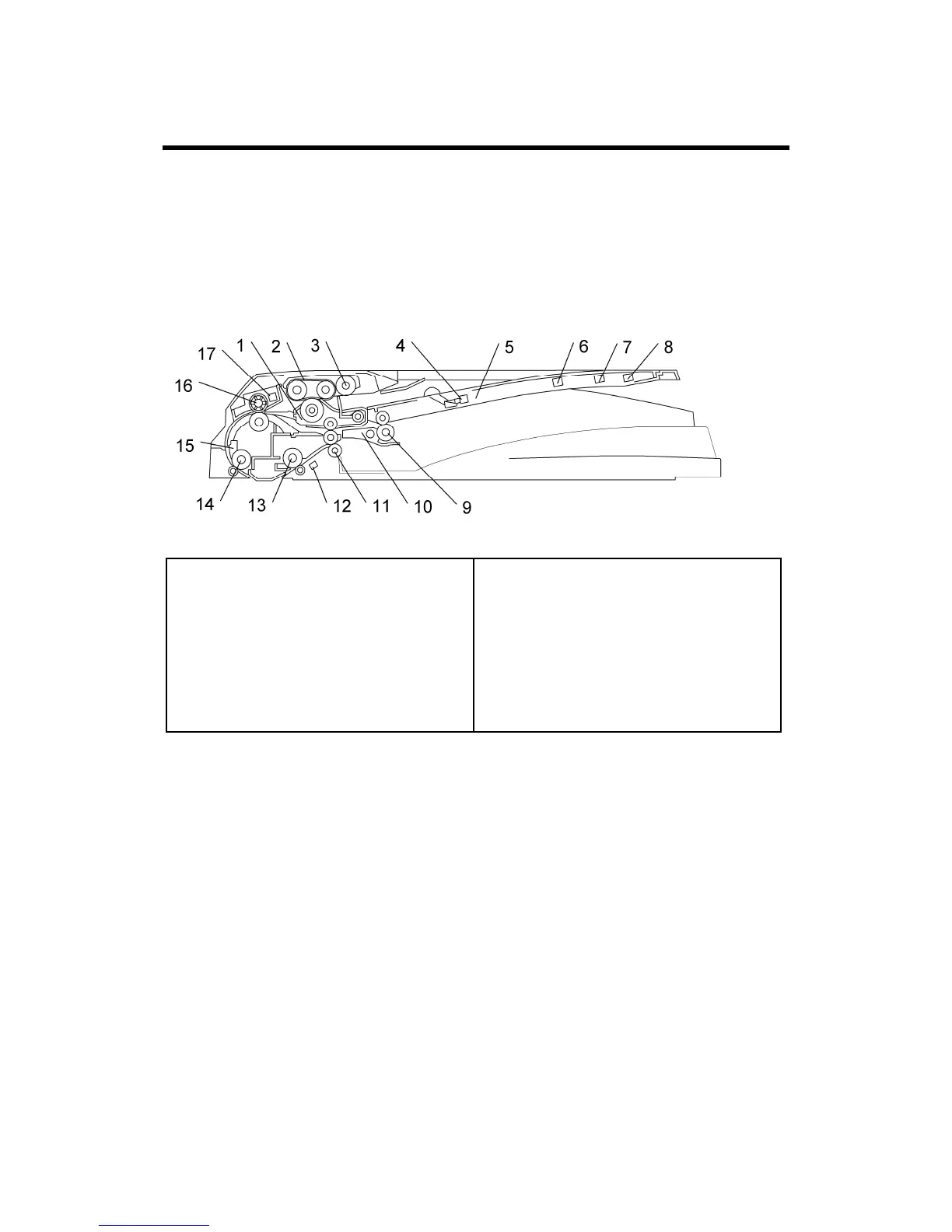

1. Separation Roller
2. Paper Feed Belt
3. Pick-up Roller
4. Original Trailing Edge Sensor
5. Original Tray
6. Original Length Sensor 1
7. Original Length Sensor 2
8. Original Length Sensor 3
9. Inverter Roller
10. Junction Gate
11. Exit Roller
12. Original Exit Sensor
13. Transport Roller
14. Registration Roller
15. Registration Sensor
16. Skew Correction Roller
17. Skew Correction Sensor
