Controller Options
D037/D038/D040/D041 2-102 SM
Seal Check and Removal
You must check the box seals to make sure that they were not removed after the
items were sealed in the box at the factory before you do the installation.

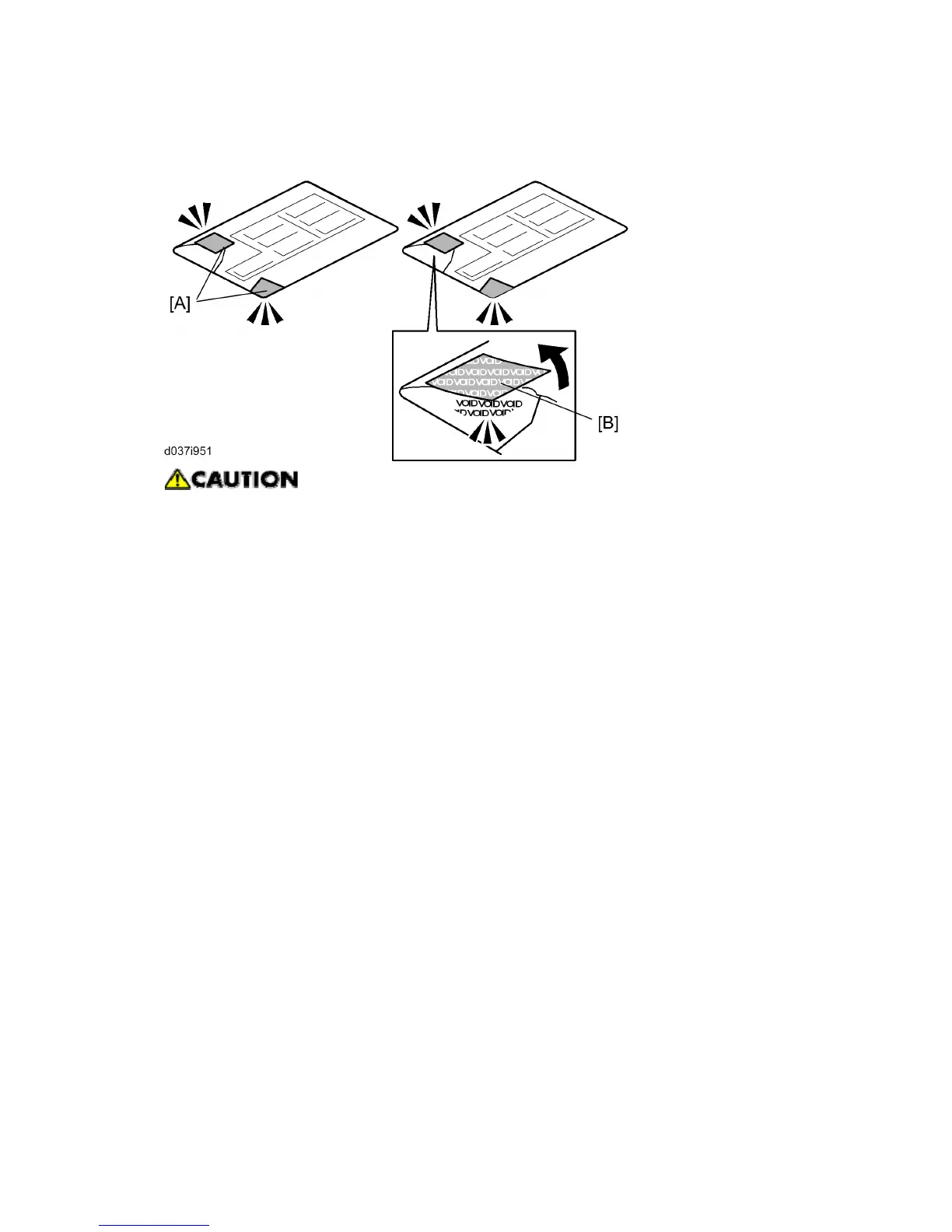

1. Check the box seals [A] on each corner of the box.
Make sure that a tape is attached to each corner.
The surfaces of the tapes must be blank. If you see “VOID” on the tapes, do not
install the components in the box.
2. If the surfaces of the tapes do not show “VOID”, remove them from the corners of the
box.
3. You can see the “VOID” marks [B] when you remove each seal. In this condition, they
cannot be attached to the box again.
