Image Adjustment
D037/D038/D040/D041 4-10 SM

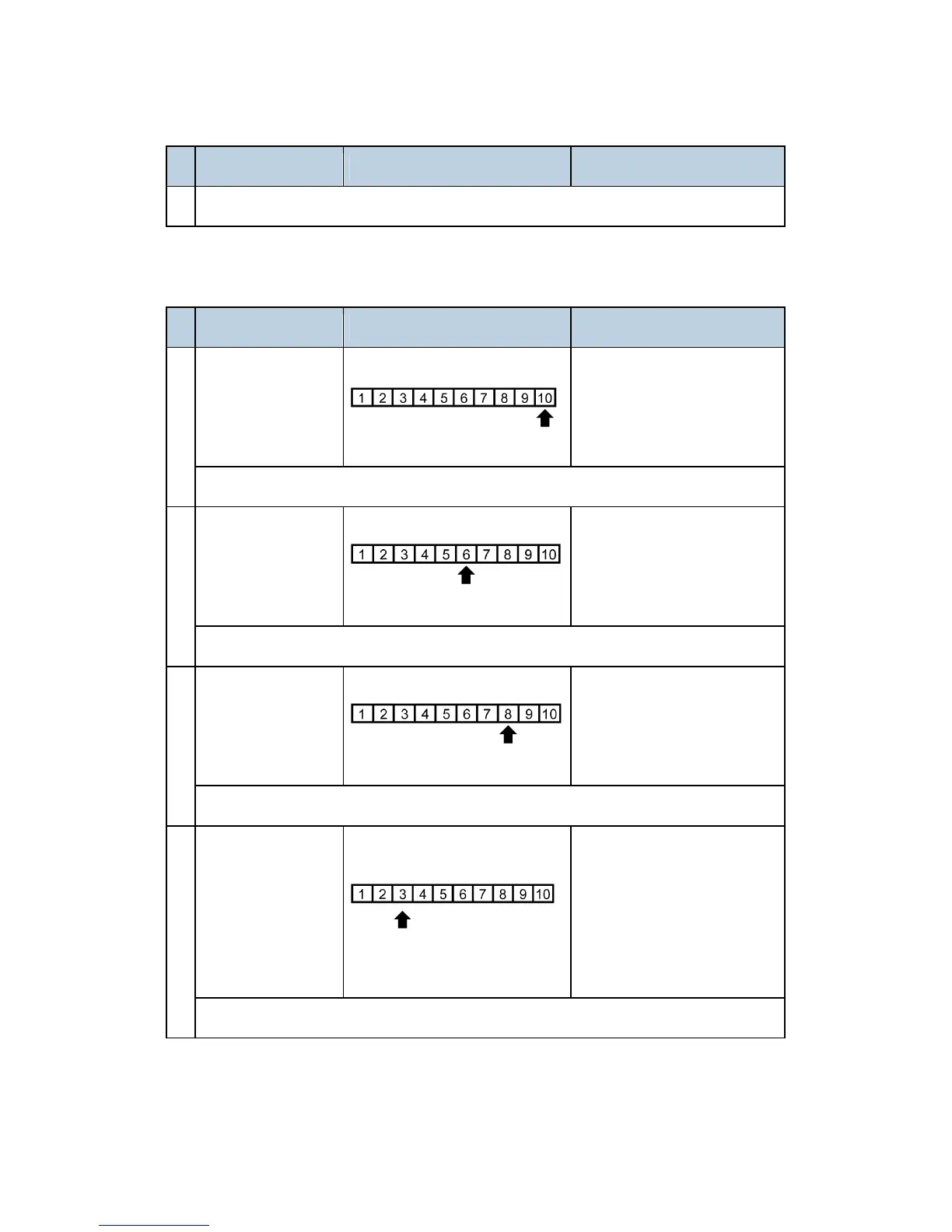

Item to Adjust Level on the C-4 chart Adjustment Standard
For adjusting K Highlight: SP4-915-005
- Photo Mode, Single Color -
Item to Adjust Level on the C-4 chart Adjustment Standard
ID max: (K)
Adjust the offset value so that
the density of level 10
matches that of level 10 on
the C-4 chart.
1
For adjusting K ID max: SP4-909-004
Middle (Middle ID)
(K)
Adjust the offset value so that
the density of level 6 matches
that of level 6 on the C-4
chart.
2
For adjusting K Middle: SP4-909-002
Shadow (High ID)
(K)
Adjust the offset value so that
the density of level 8 matches
that of level 8 on the C-4
chart.
3
For adjusting K Shadow: SP4-909-003
Highlight (Low ID)
(K)
Adjust the offset value so that
dirty background does not
show on the copy and the
density of level 3 is slightly
lighter than that of level 3 on
the C-4 chart.
4
For adjusting K Highlight: SP4-909-001
