Ricoh Aficio MP C2050 Service Manual

Image Adjustment
D037/D038/D040/D041 4-12 SM

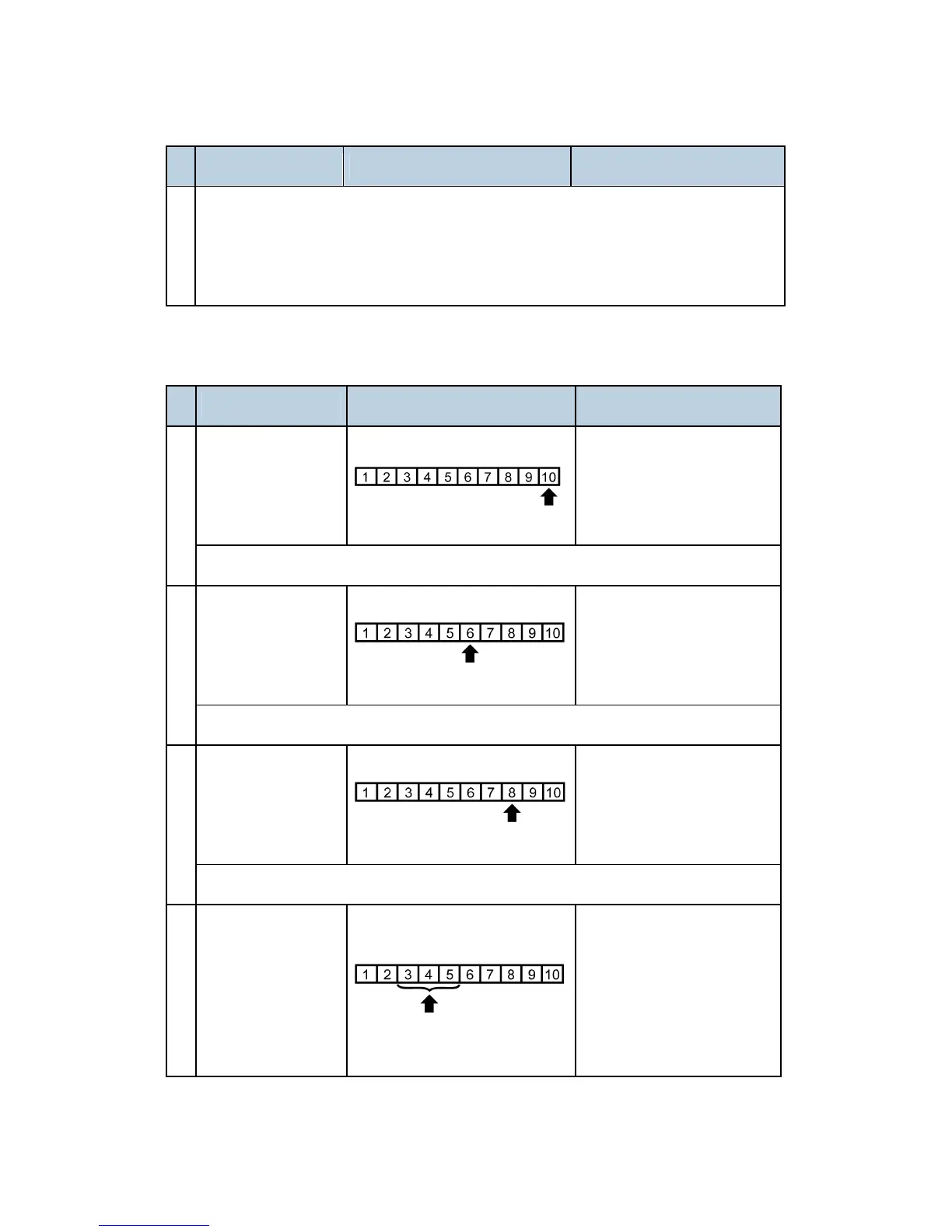

Item to Adjust Level on the C-4 chart (K) Adjustment Standard
For adjusting K Highlight: SP4-910-001
For adjusting C Highlight: SP4-911-001
For adjusting M Highlight: SP4-912-001
For adjusting Y Highlight: SP4-913-001
- Text (Letter) Mode, Single Color -
Item to Adjust Level on the C-4 chart (K) Adjustment Standard
ID max: (K)
Adjust the offset value so
that the density of level 10
matches that of level 10 on
the C-4 chart.
1
For adjusting K ID max: SP4-914-004
Middle (Middle ID)
(K)
Adjust the offset value so
that the density of level 6
matches that of level 6 on
the C-4 chart.
2
For adjusting K Middle: SP4-914-002
Shadow (High ID)
(K)
Adjust the offset value so
that the density of level 8
matches that of level 8 on
the C-4 chart.
3
For adjusting K Shadow: SP4-914-003
4
Highlight (Low ID)
(K)
Adjust the offset value so
that dirty background does
not show on the copy and
the density of level 3 is
slightly lighter than that of
level 3 on the C-4 chart.
