Paper Feed Unit (D331)
SM 2-23 D037/D038/D040/D041
Installaion

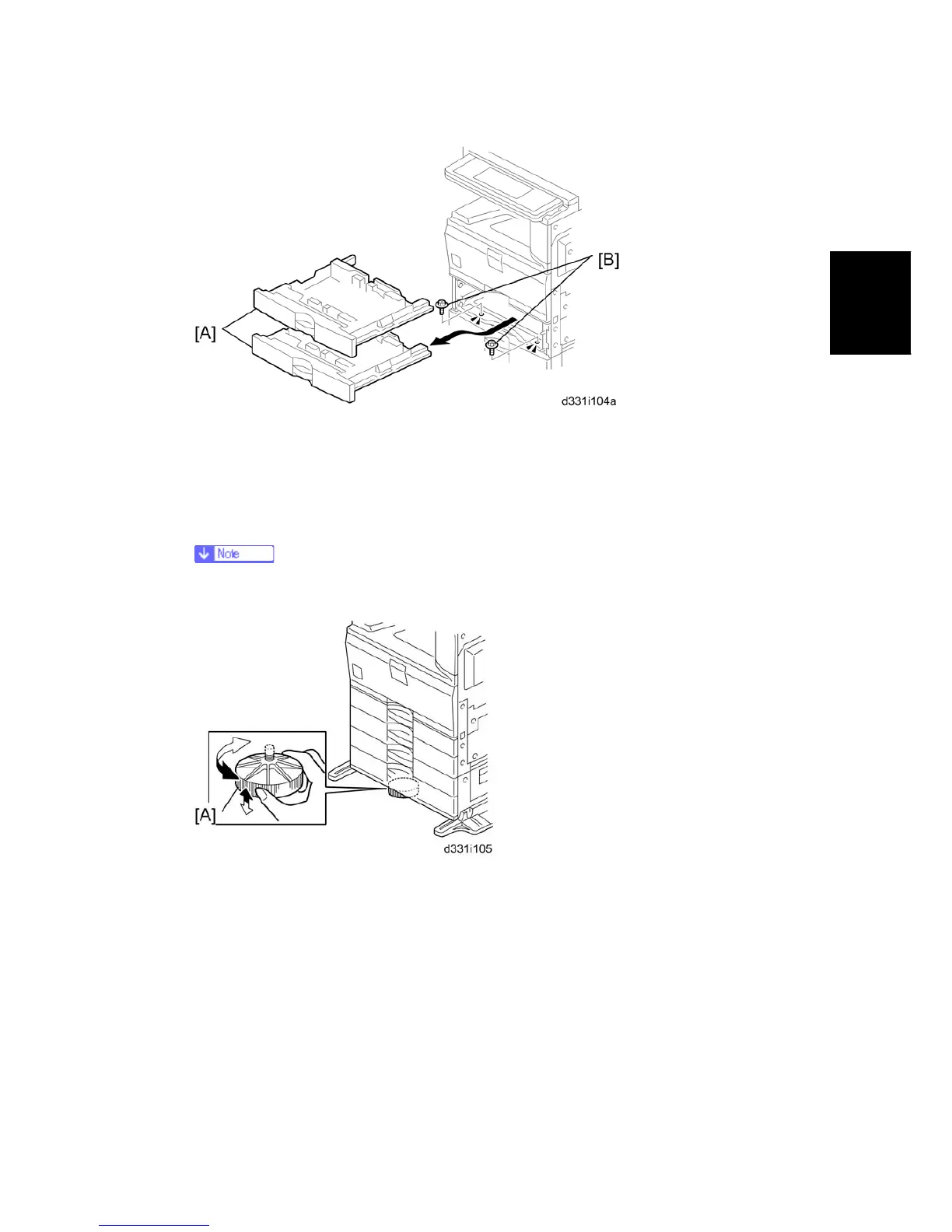

7. Remove the 1st and 2nd paper trays [A] and secure the paper tray unit with two screws
(M4 x 10) [B].
8. Reinstall all the paper trays.
9. Attach the appropriate paper tray number decal and paper size decal to each handle of
the trays.
The paper tray number and size decal sheet is in the accessory box of the
main machine.
10. Rotate the adjuster [A] until the machine cannot be pushed across the floor.
11. Load paper into the paper trays and select the proper paper size.
12. Turn on the main switch.
13. Adjust the registration for each tray ( Section: Image Adjustment).
For tray 3, use SP1002-004
For tray 4, use SP1002-005
14. Check the machine’s operation and copy quality.
