ARDF (D366)
D037/D038/D040/D041 2-32 SM

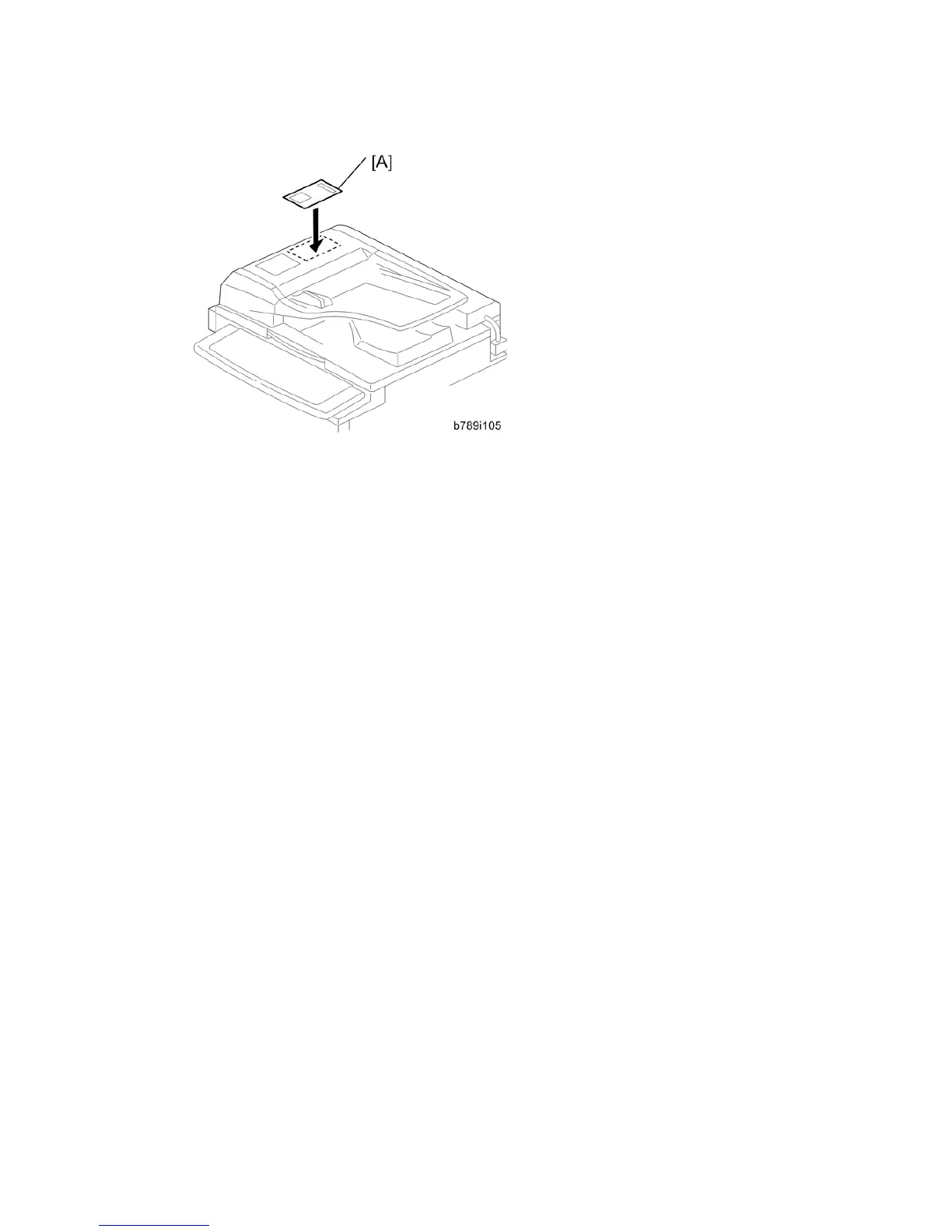

11. Attach the decal [A] to the top cover as shown. Choose the language that you want.
12. Plug in and turn on the main power switch of the machine, and then check the ARDF
operation.
13. Make a full size copy. Check that the registrations (side-to-side and leading edge) and
image skew are correct. If they are not, adjust the registrations and image skew (see
Section: "Image Adjustment"" in the "Replacements and Adjustments" chapter).
