Shift Tray Unit (D428)
SM 2-41 D037/D038/D040/D041
Installaion

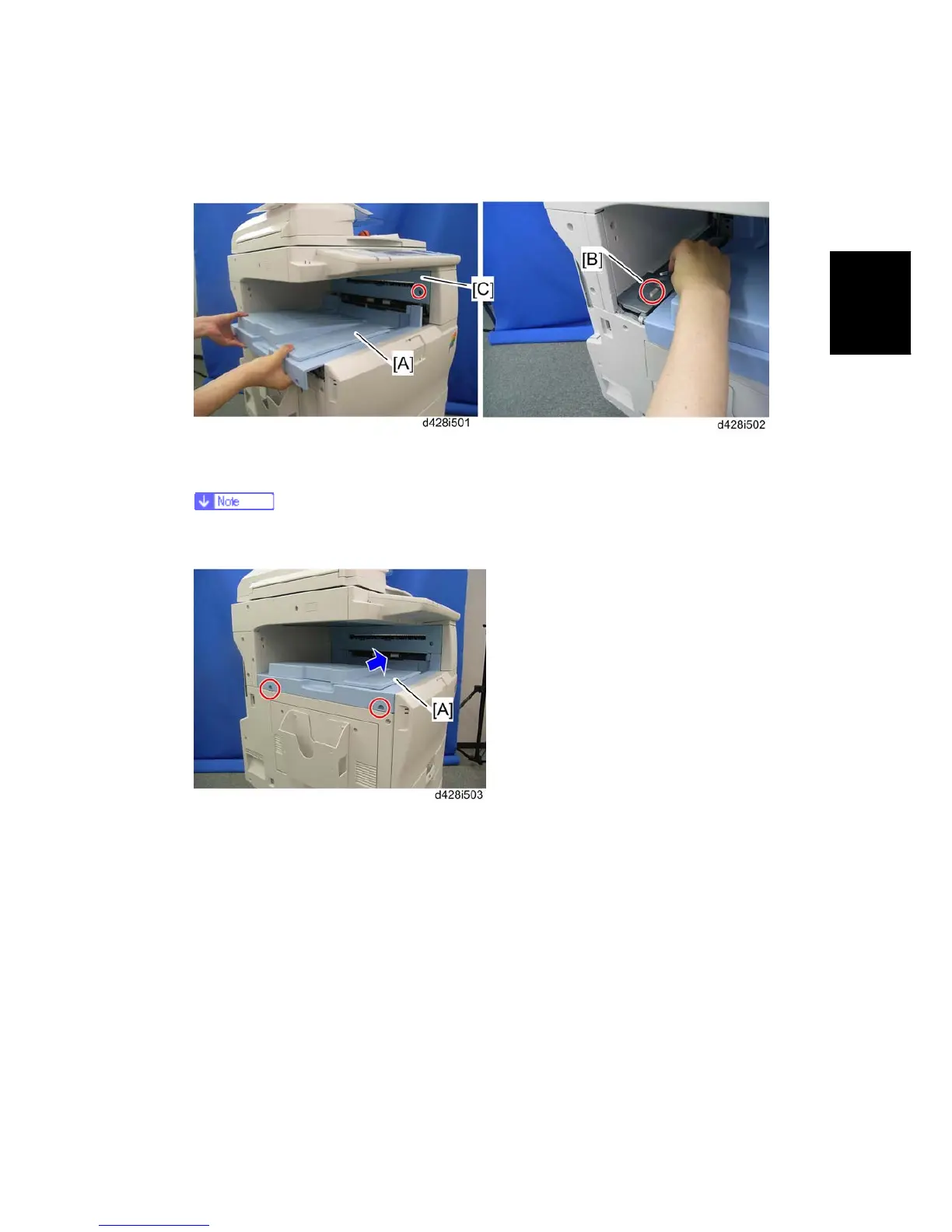

2. Remove the inverter tray [A] (hook).
3. Remove the output tray [B] ( x 2).
4. Put the shift tray [A] in the machine, and then connect the harness to the connector [B]
on the inner rear frame.
 If the shift tray is difficult to install in the mainframe, remove the paper exit
cover [C] first ( x 1).
5. Install the shift tray [A] fully in the machine ( x 2).
6. Reinstall the inverter tray.
7. Turn on the main power switch of the machine.
8. Check the shift tray unit operation.
