Tray Cover
SM 1 D428
D428
Internal Shift
Tray SH3030
1. REPLACEMENT AND ADJUSTMENT
1.1 TRAY COVER

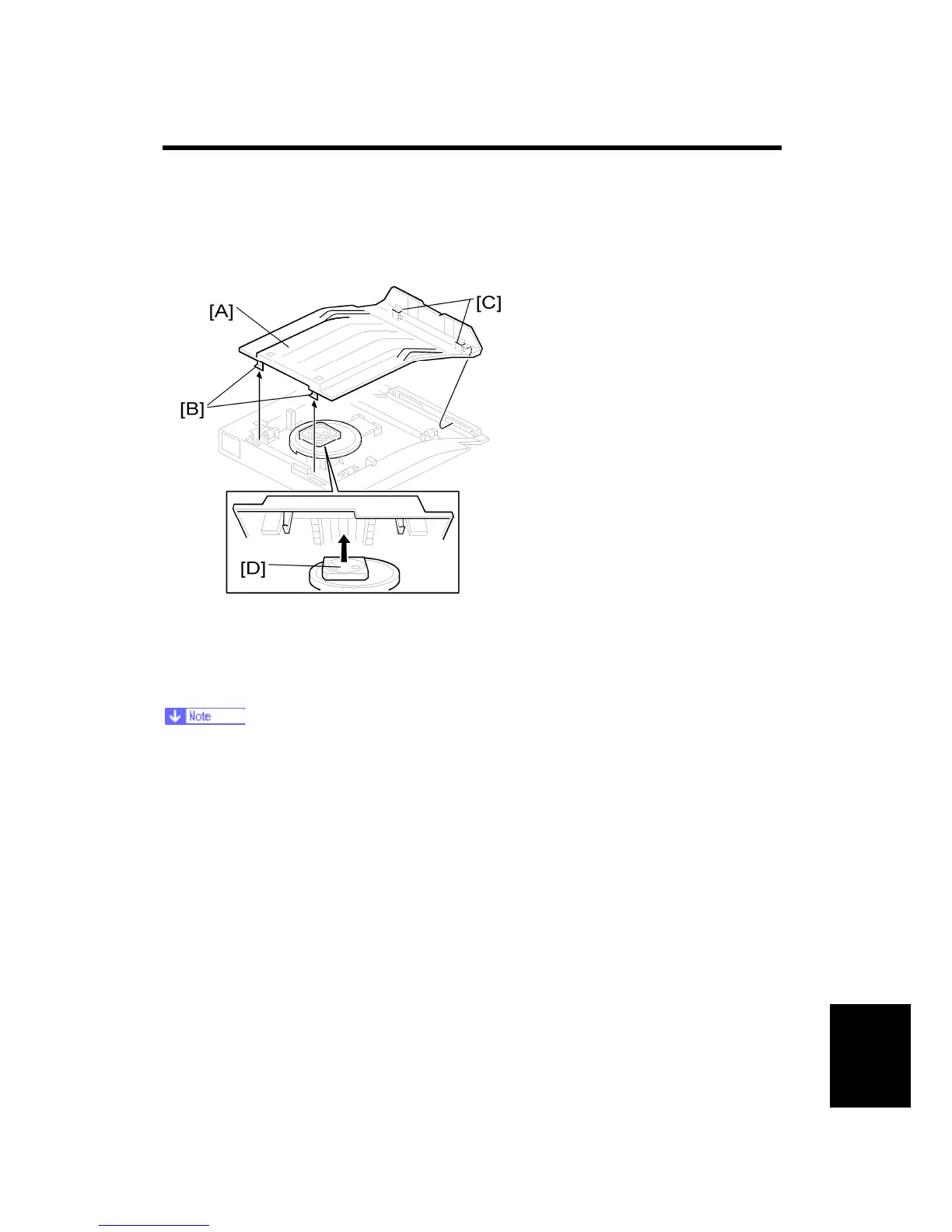

1. Remove the tray cover [A] by pressing on the two pawls [B] on the left side of the
cover.
– When Attaching the Tray Cover –
 The right side of the tray cover should be attached first.
1. Fit the pawls [C] on the shift tray.
2. Align the square [D] so that it fits into the groove in the underside of the tray cover and
does not interfere with the attachment of the cover.
3. Complete the attachment by inserting the left side pawls [B] into place.
