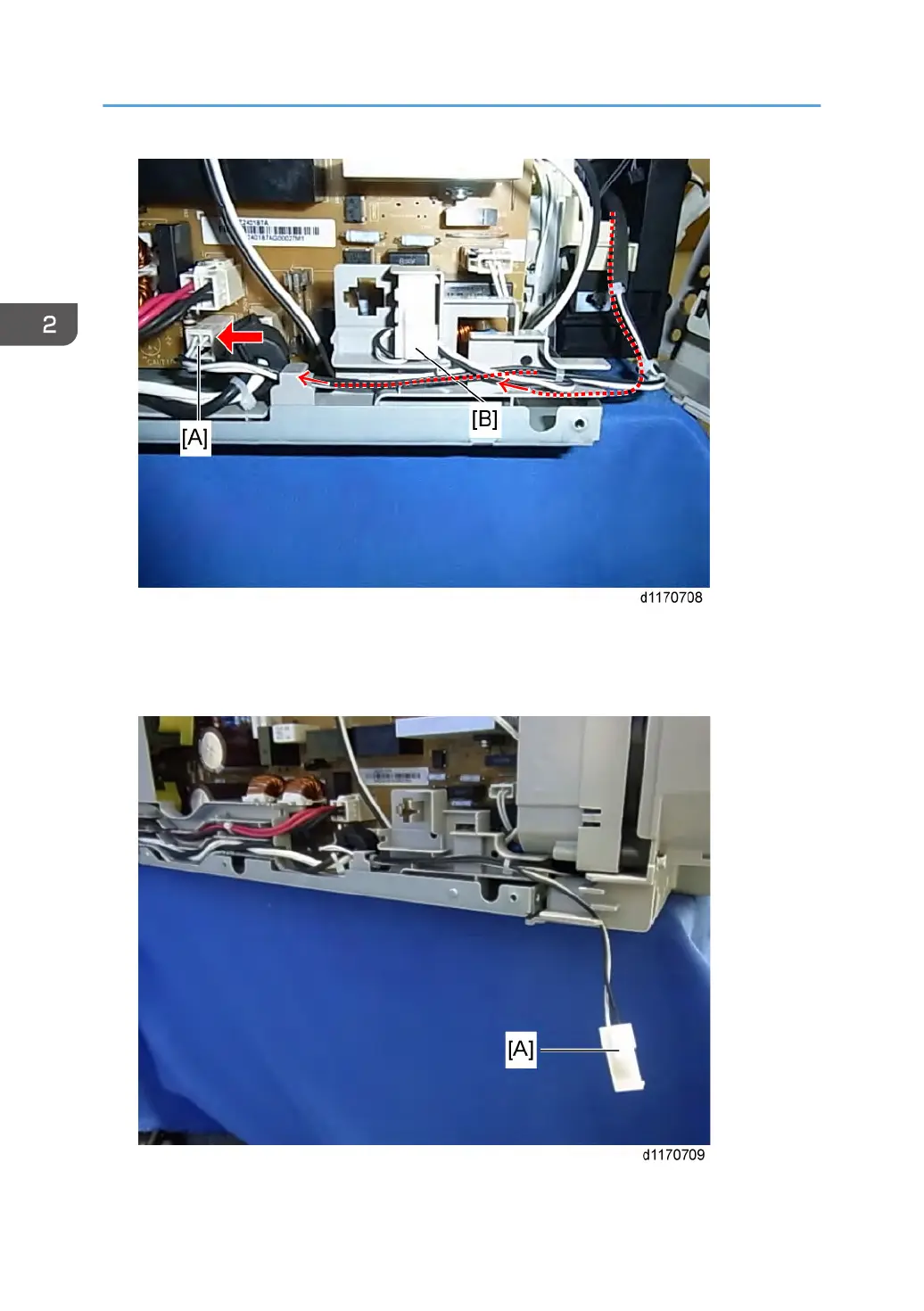

15. Route the junction harness as shown above.
16. Connect the connector [A] to CN103.
17.
Store the connector [B] to the holder unless the optional PFU tray heater is installed.
2. Installation
106
