Touch Panel Position Adjustment
• It is necessary to calibrate the touch panel at the following times:
• When you replace the operation panel.
•
When you replace the controller board.
• When the touch panel detection function does not operate correctly
Do not use items [2] to [9] on the Self-Diagnostic Menu. These items are for design use only.
1. Press
, press the "1" "9" "9" "3" keys, press the "Clear/Stop" key 5 times to open the Self-
Diagnostics menu.

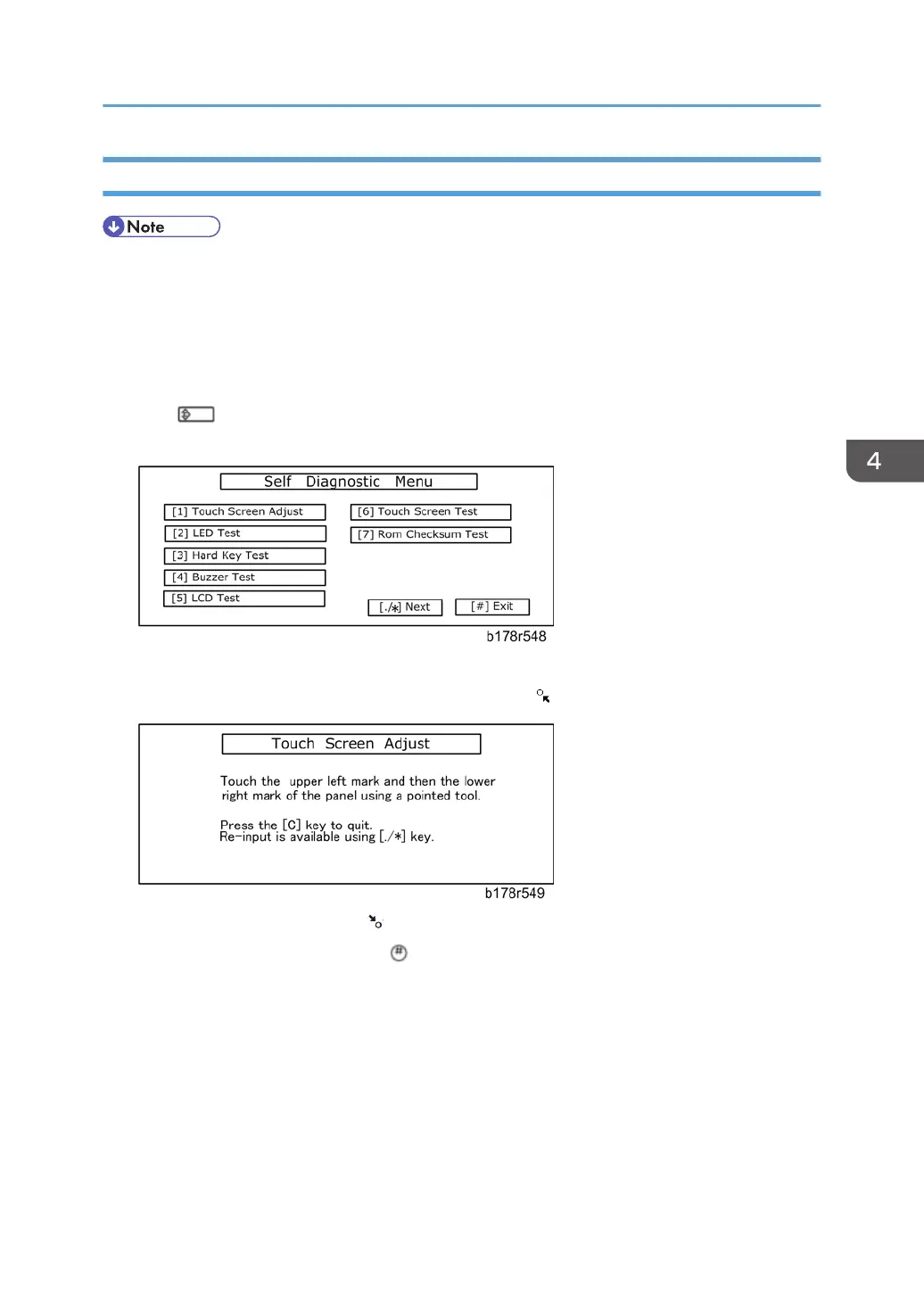

2. On the touch screen press “Touch Screen Adjust” (or press the "1" key).
3. Use a pointed (not sharp) tool to press the upper left mark .
4. Press the lower right mark when “ ” shows.
5. Press [#] OK on the screen (or press ) when you are finished.
6. Touch [#] Exit on the screen to close the Self-Diagnostic menu. Save the calibration settings.
