15. As soon as the printer receives the data, it will be stored on the SD card automatically with no print
output. Nothing is displayed on the screen, indicating that a Card Save operation was successful.

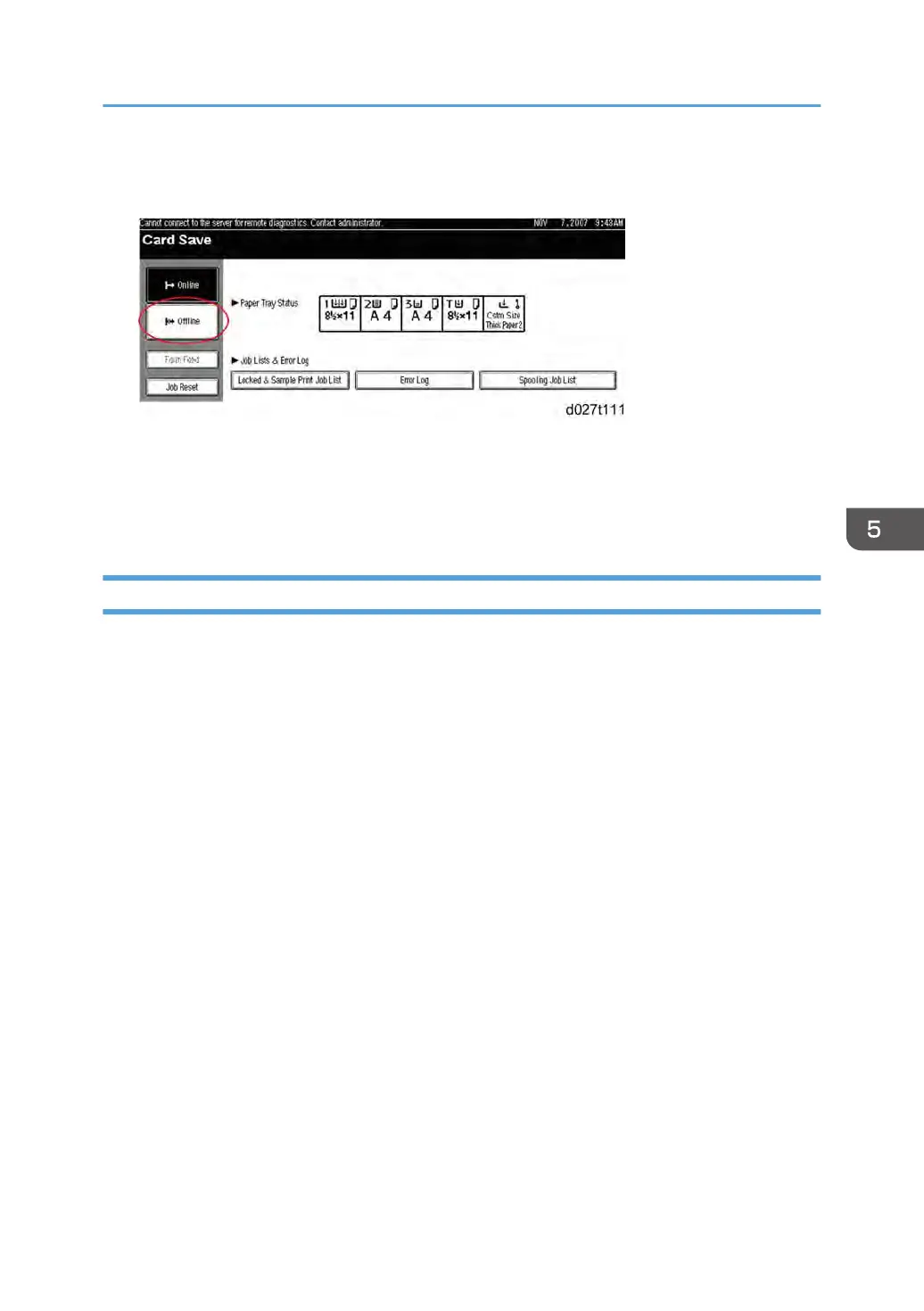

16. Press "Offline" and then the "Clear/Stop" button to exit Card Save mode.
17. Change the Bit Switch Settings back to the default
00000000. Press the "#" button in the numeric
keypad to register the changes.
18. Remove the SD card after the main power switch is turned off.
Error Messages
Card Save error messages:
• Init error: A card save process (e.g. card detection, change to kernel mode) failed to initialize.
• Card not found: Card cannot be detected in the slot.
• No memory: Insufficient working memory to process the job.
• Write error: Failed to write to the card.
• Other error: An unknown error occurred.
If an error occurs, pressing "OK" will cause the device to discard the job and return to the ready state.
Card Save Function
627
