Ricoh AFICIO MP C305SP - When Installing the ARDF

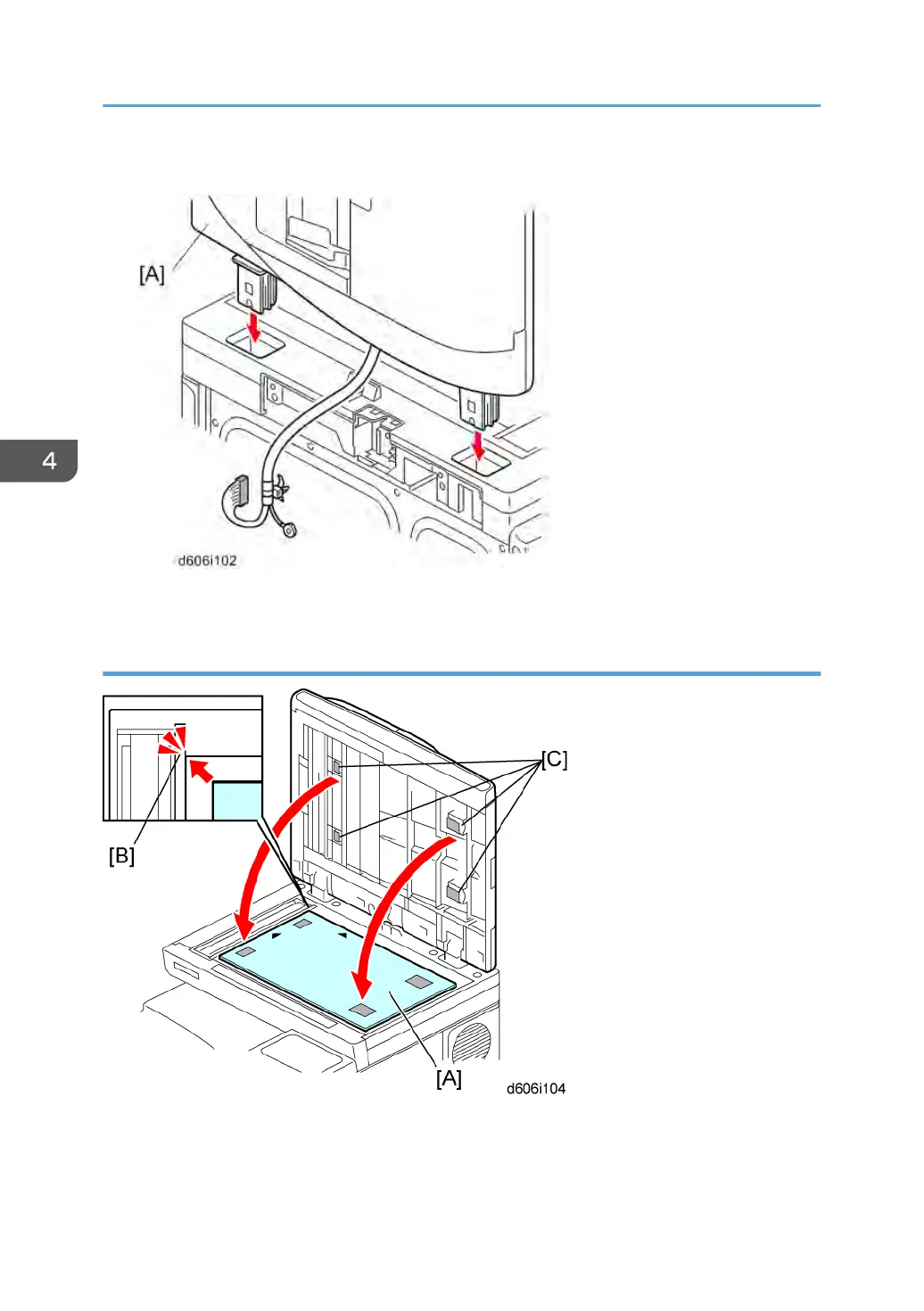

5. Disconnect the I/F cable [D].
6. Remove the ARDF [A] from the copier as shown.
When installing the ARDF
1. Open the ARDF.
2. Place the platen sheet [A] on the exposure glass.
3. Line up the rear left corner of the platen sheet flush against corner [B] on the exposure glass.
4. Replacement and Adjustment
316
