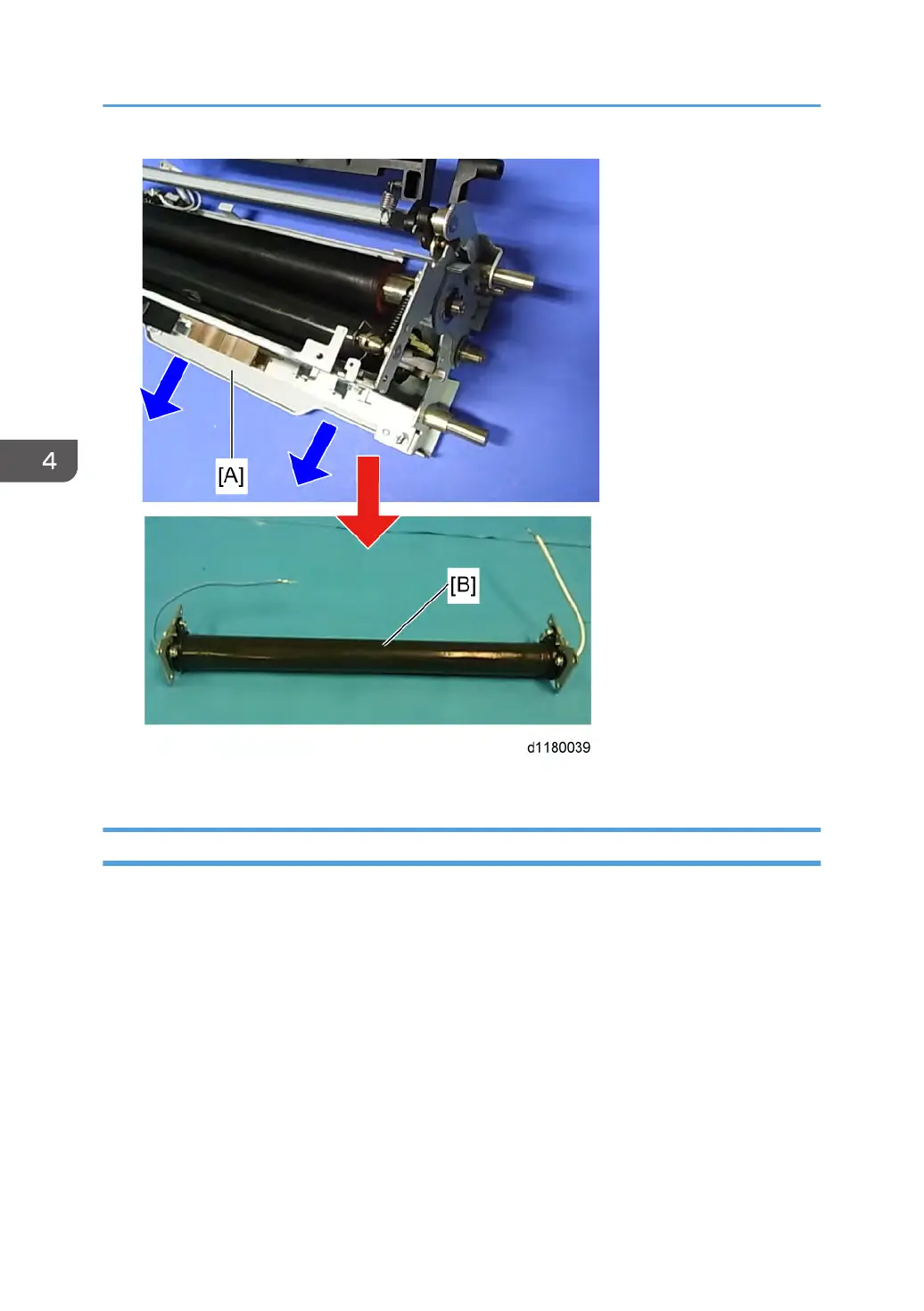

11. Pull out the rear frame [A], and take out the fusing sleeve belt assembly [B].
Fusing Entrance Sensor
1. Open the duplex unit.
4. Replacement and Adjustment
254
