Ricoh AFICIO MP C305SP Field Service Manual

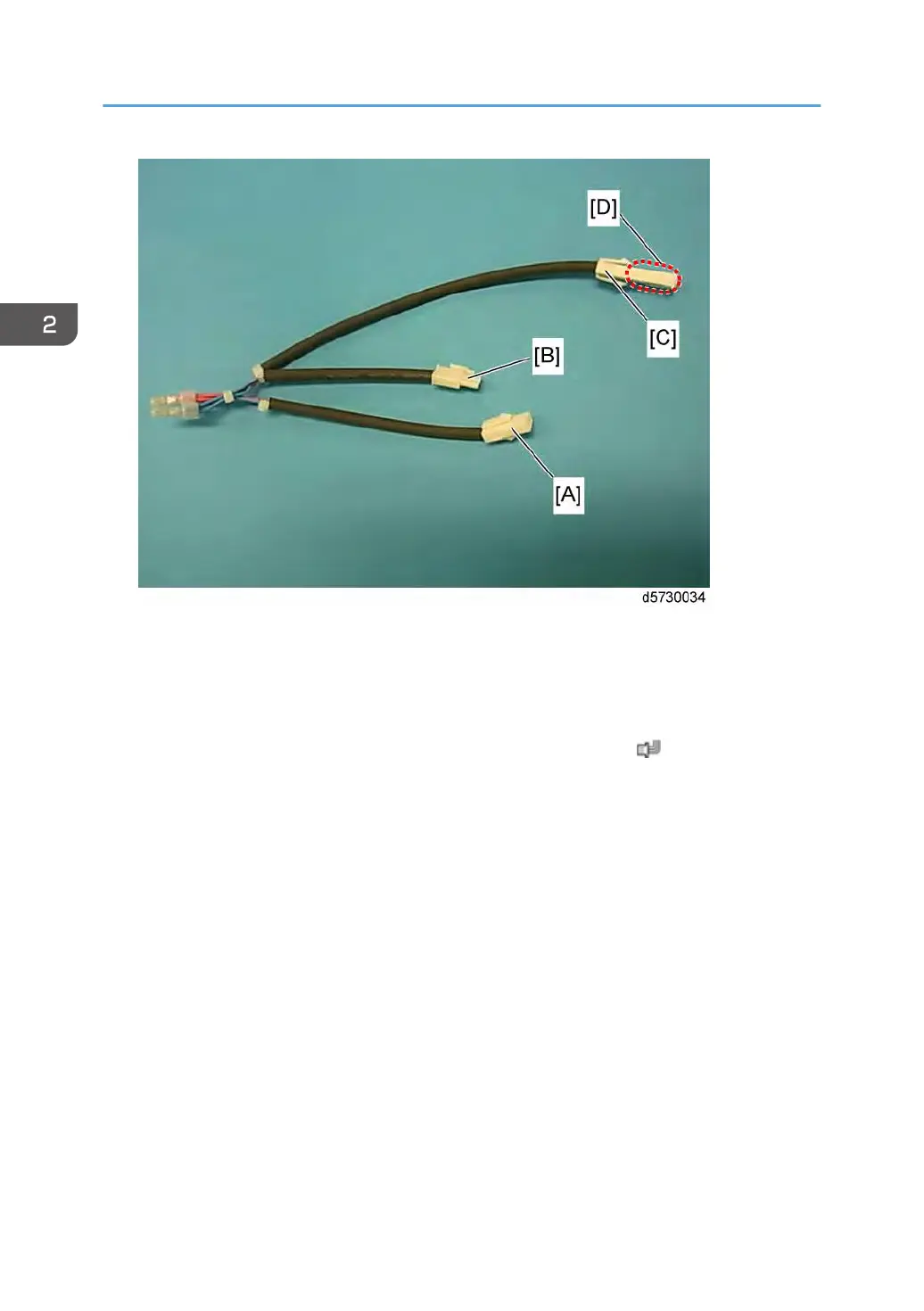

A: For this tray heater
B: For the mainframe
C: For another optional tray heater
5. Connect the connector [A] to the tray heater connector, and cap the connector [C] with the
isolation cap [D] unless there are two optional paper tray units installed ( x 1).
2. Installation
112
