Ricoh AFICIO MP C305SP Field Service Manual

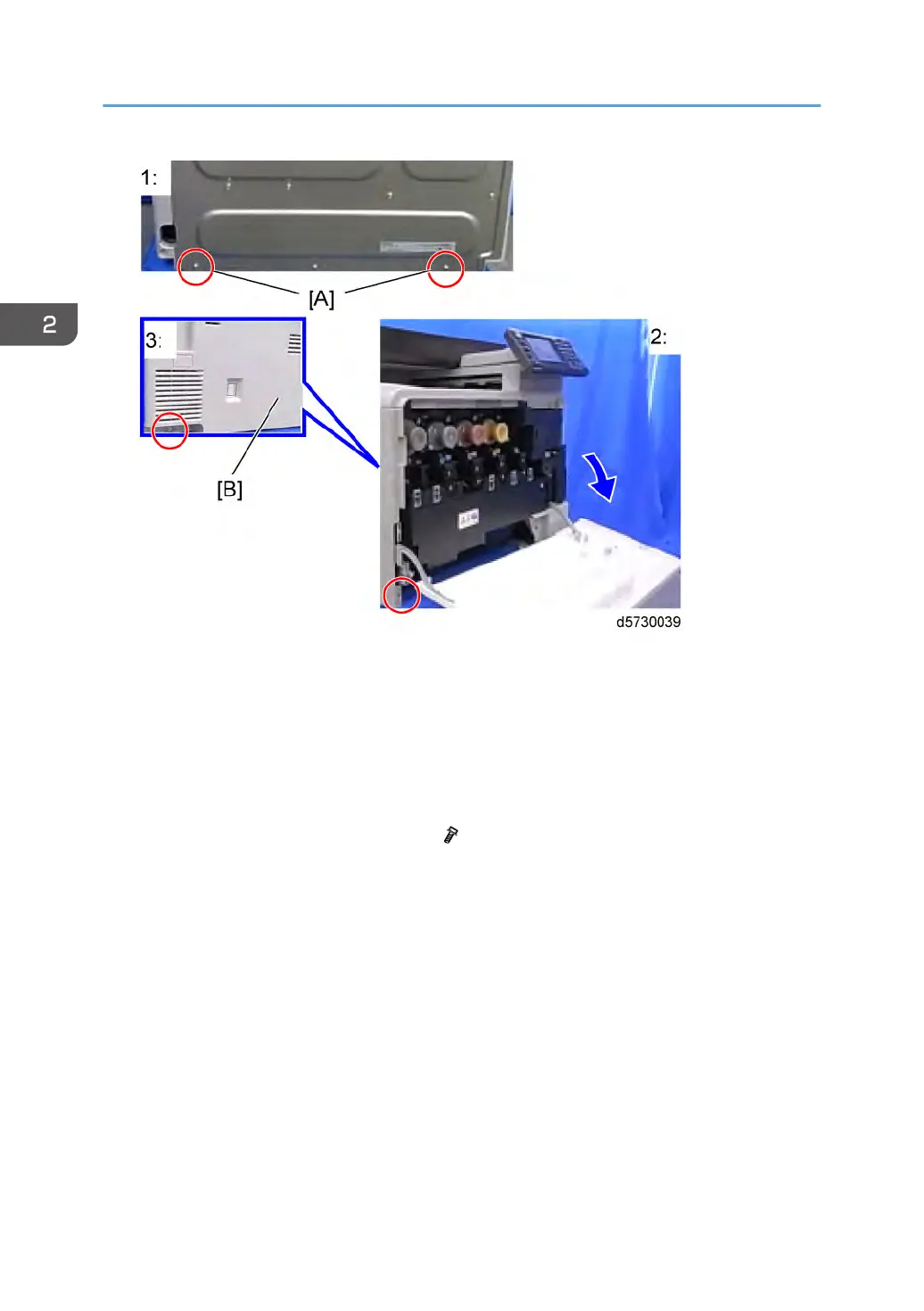

1: Rear
2: Front
3: Left
6. Remove the paper trays from the mainframe and the optional paper feed unit.
7.
Remove two screws [A] on the rear panel of the mainframe. Keep these screws until the joint
brackets (rear) are installed.
8. Remove the left cover [B] of the mainframe (
x 2).
2. Installation
116
