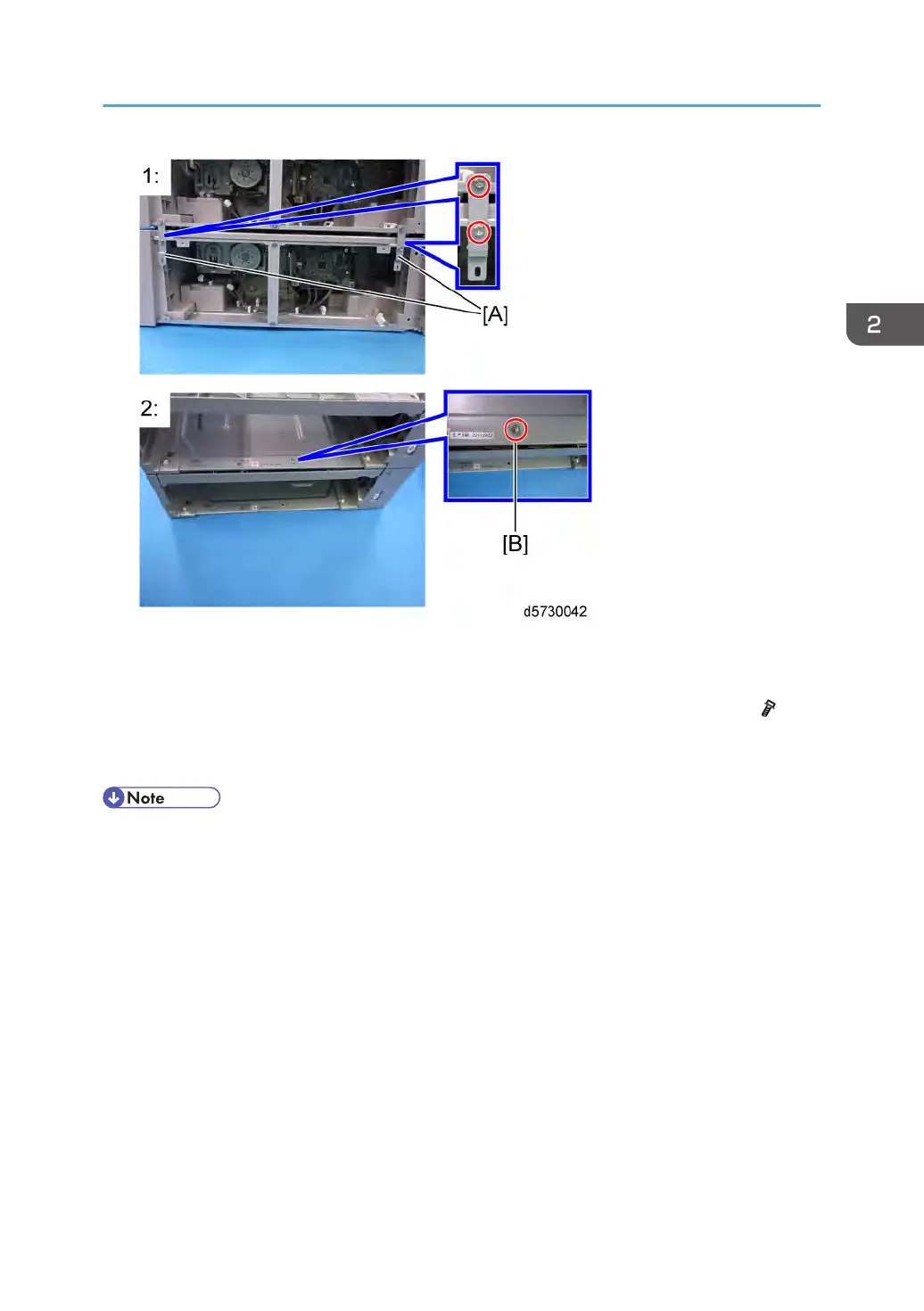

1: Rear
2: Front center
4. Join the two paper feed units with two joint brackets (rear) [A] and one screw [B] (M3 x 6: x 3
(included in this kit)).
5. Reassemble the mainframe and the paper feed units.
• When installing the mainframe with two paper feed units, join the two paper feed units first, and
then join the mainframe with the paper feed units. However, if there is already a machine with one
optional paper feed unit, you can put a machine with a paper feed unit on another paper feed unit,
and join them (be careful if you do this, because the mainframe with one paper feed unit is very
heavy).
Anti-condensation Heater (Optional Unit)
119
