Ricoh AFICIO MP C305SP Field Service Manual

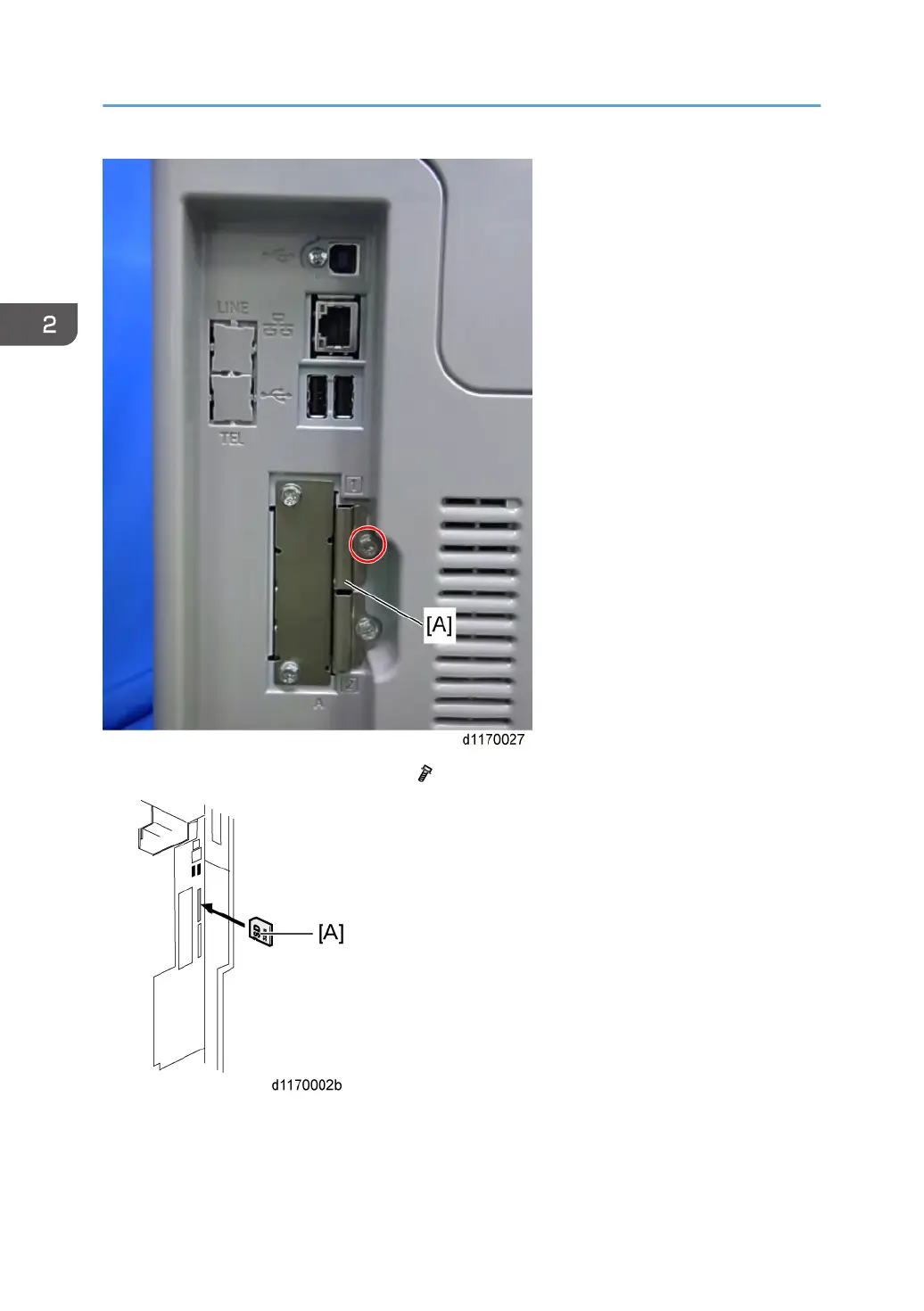

1. Remove the slot cover [A] for SD cards ( x 1).
2. Turn the SD-card label face [A] of the browser unit to the rear of the machine. Then, push it slowly
into SD slot 1 (upper) until you hear a click.
3. Plug in and turn on the main power switch.
2. Installation
146

Ricoh AFICIO MP C305SP Specifications

General

Brand	Ricoh
Model	AFICIO MP C305SP
Category	All in One Printer
Language	English
