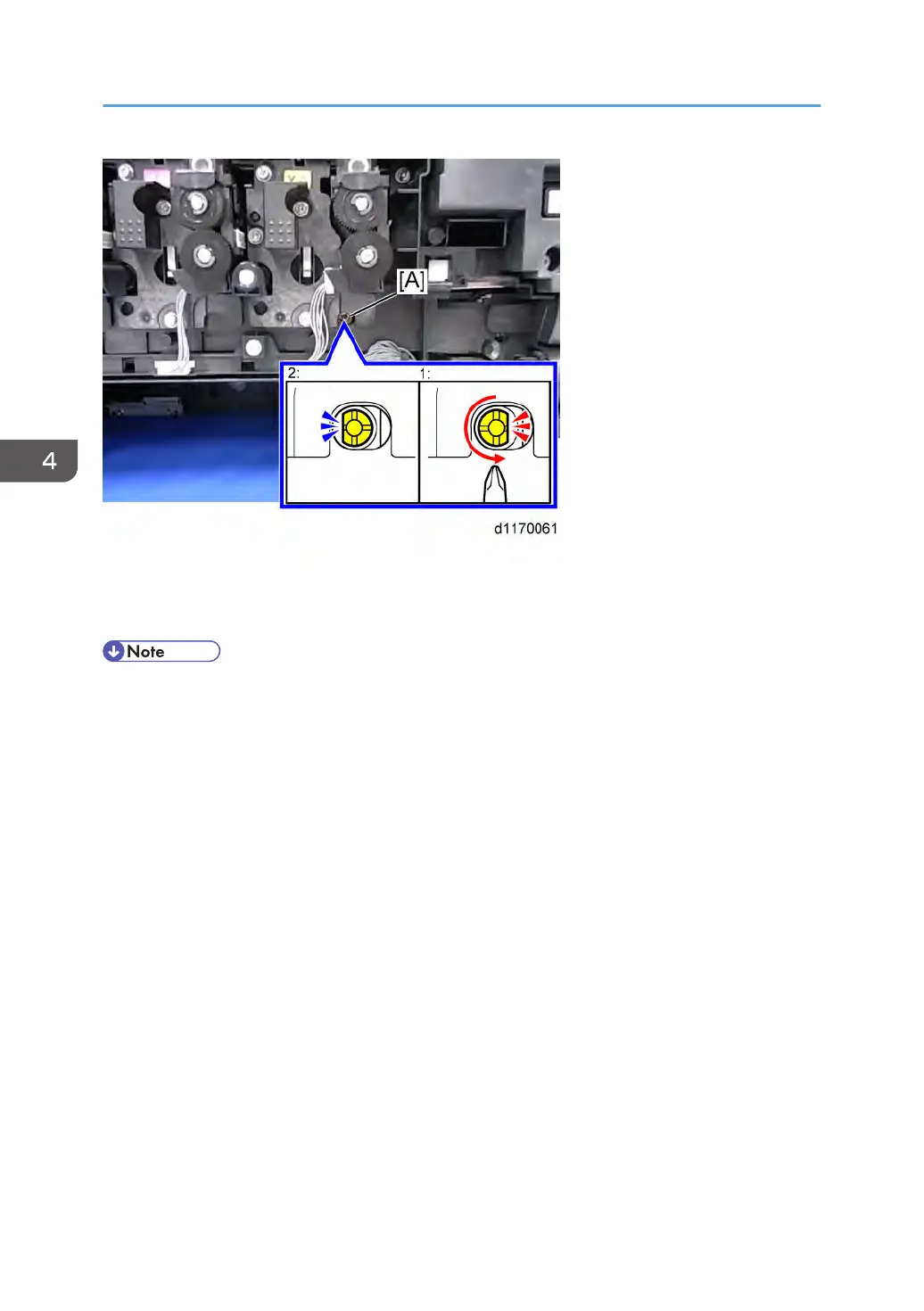

1: Tension released
2: Tension applied
• Check that the ITB has no tension before PCDU (CMY) replacement. Otherwise, the ITB may be
damaged.
• The tension of the ITB can be released as follows.
•
Turn the pressure release screw [A] to the left, until the flat part of the half moon on the screw points
to the right [1].
