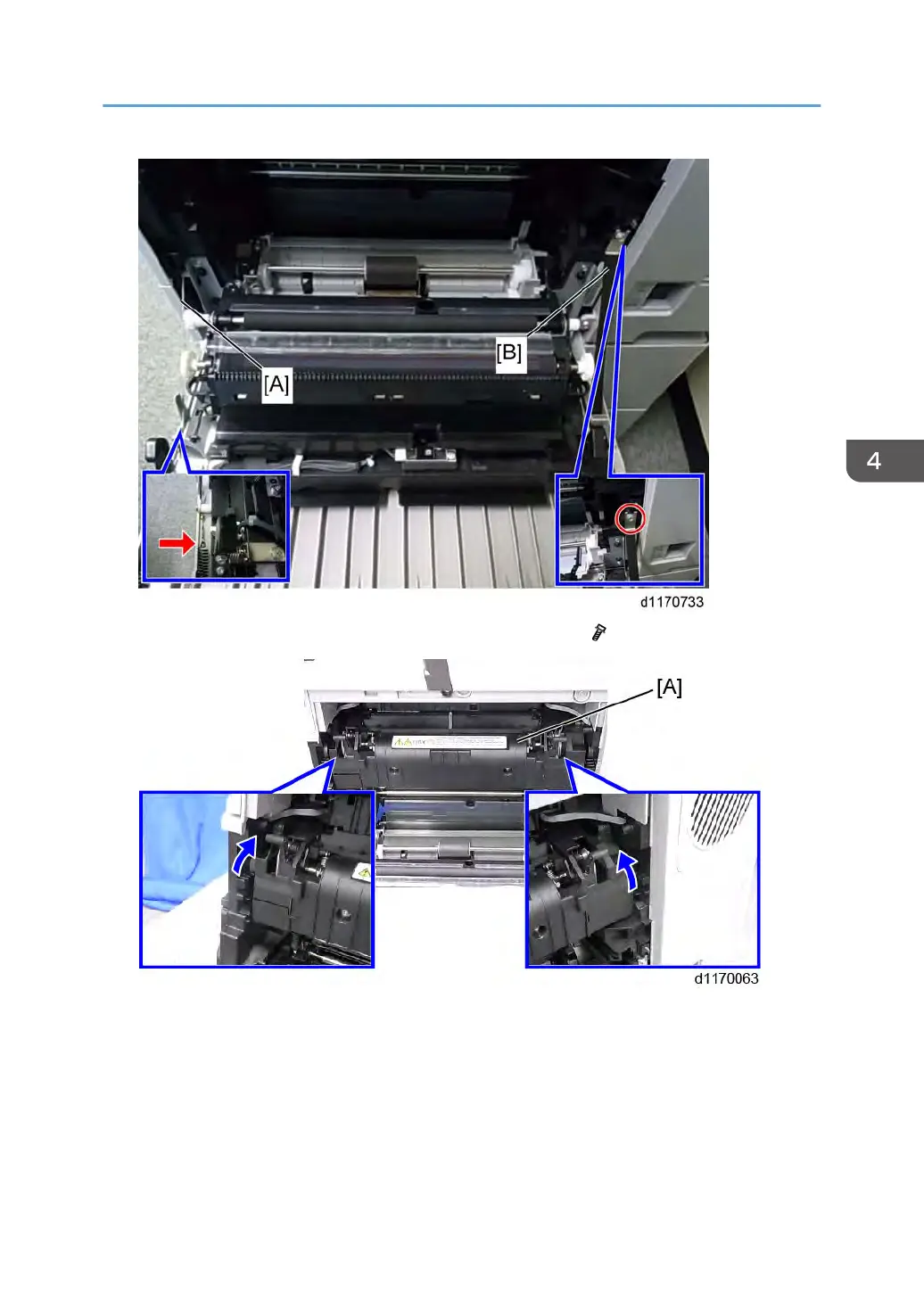

3. Release the tension spring [A] and the tension belt [B] (Hook x 1, x 1).

4. Release the lock levers and remove the fusing unit [A].

Image Transfer

219
