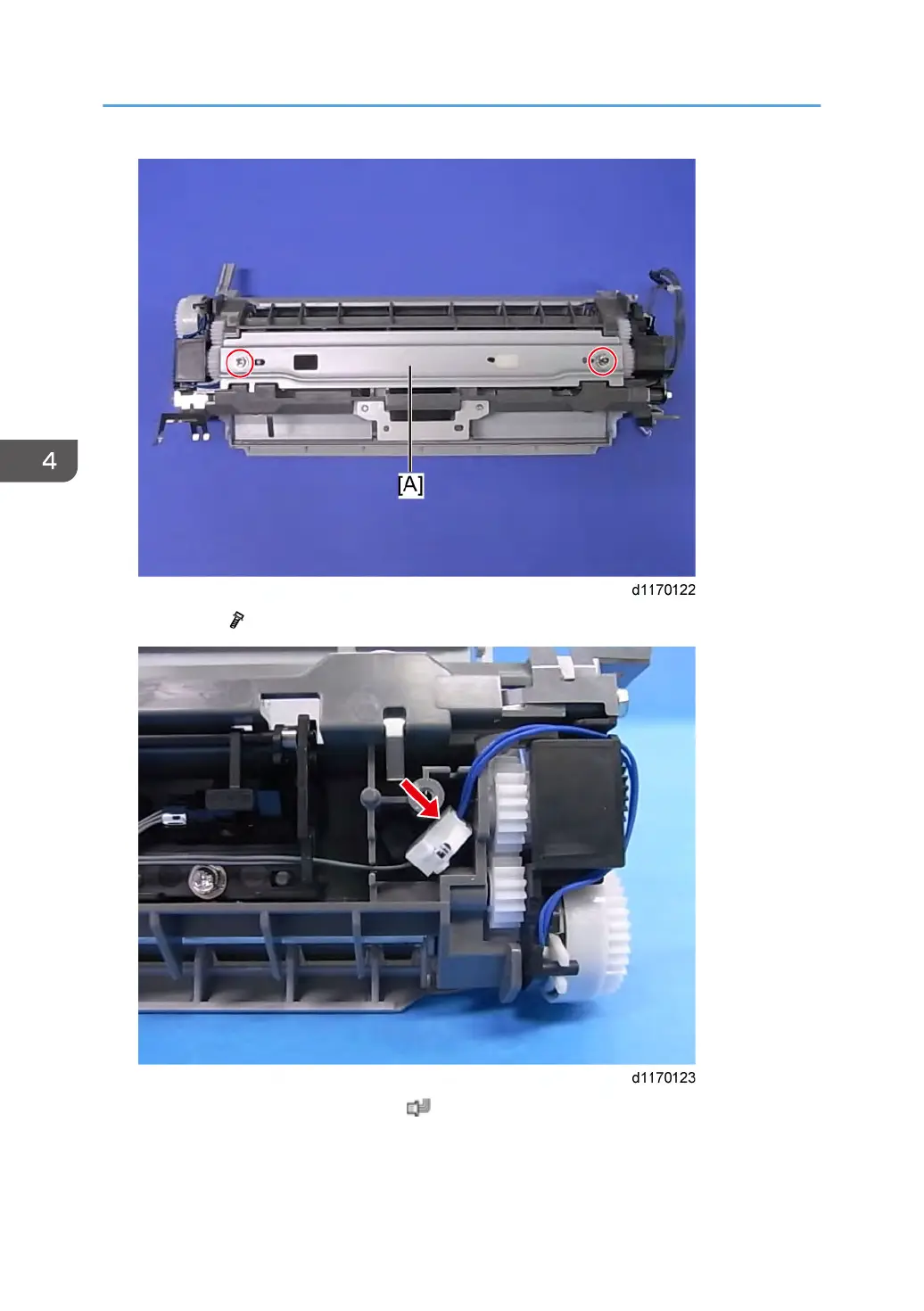

2. Bracket [A] ( x 2)

3. Disconnect the connecter of the clutch ( x 1).

4. Replacement and Adjustment

278
